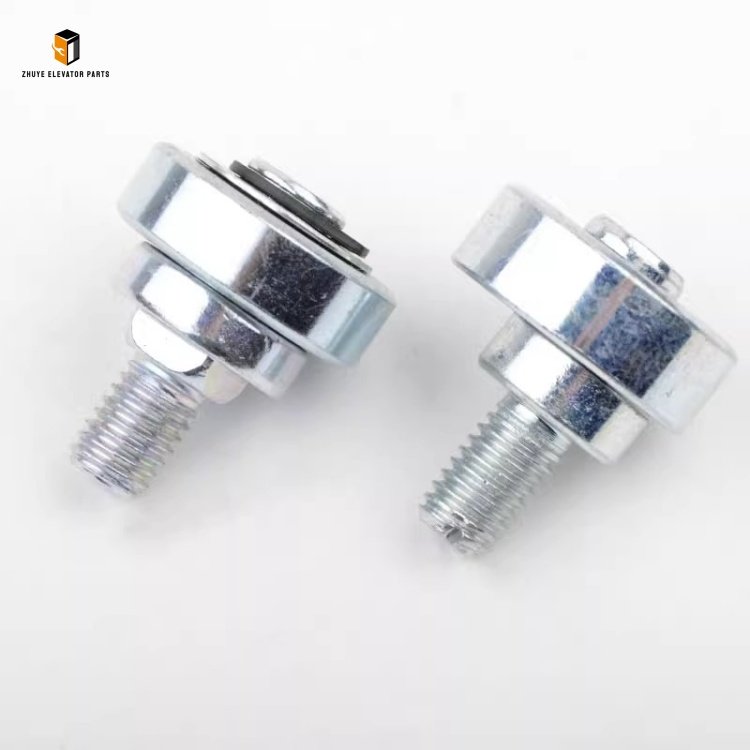

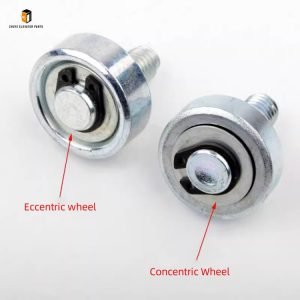

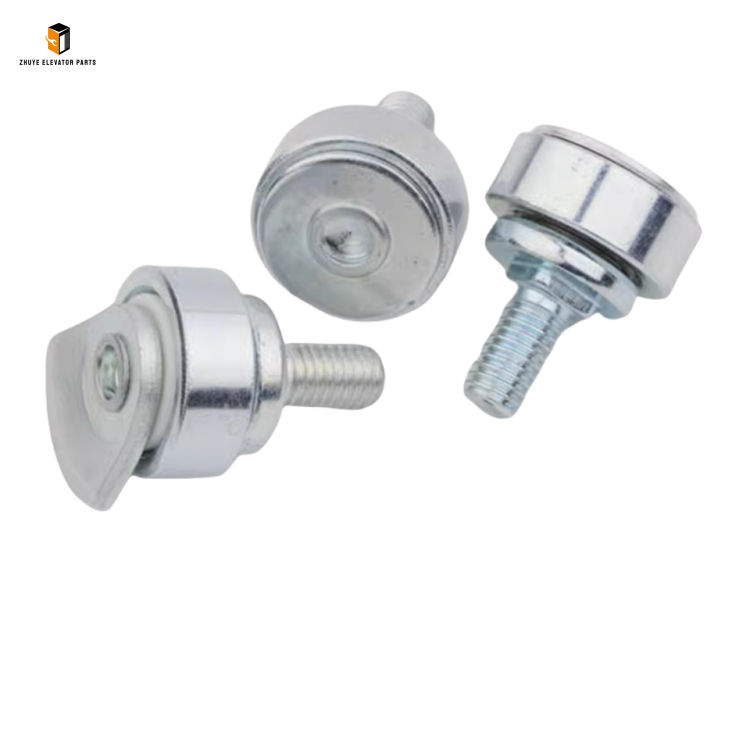

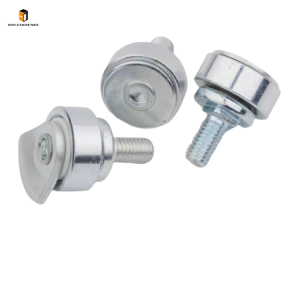

Elevator Door Hanger Roller 25*M8: Stable Guidance Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Door Hanger Roller 25*M8

1. Professional Installation & Calibration

• Safety Preparation: Cut off the elevator’s main power supply and the power supply of the door system, and hang a “Maintenance in Progress—Do Not Power On” sign at the power switch. Fix the elevator car to a safe position using a safety clamp. Open the door hanger maintenance cover and clean the door rail, hanger bracket, and mounting area to remove dust, oil stains, and debris that may affect installation.
• Roller Installation: Remove the old roller (if replacing) by unscrewing the M8 fixing bolt. Align the 25*M8 door hanger roller with the mounting hole on the door hanger, pass the M8 bolt (provided by Nanjing Zhuye Elevatorparts) through the roller’s inner bearing and fix it to the bracket. Tighten the bolt with a torque wrench to a torque of 12–15 N·m—ensure firm fixation without over-tightening (to avoid damaging the bearing). Install all required rollers (usually 2–4 per door panel) symmetrically to ensure balanced load-bearing of the door panel.
• Gap Calibration: After installation, manually push the elevator door to open and close repeatedly to check if the rollers rotate smoothly (no jamming or abnormal noise). Use a feeler gauge to detect the gap between the roller and the door rail (standard gap: 0.1–0.3mm). If the door is deviated or the roller rotates unsmoothly, adjust the position of the door hanger to ensure the rollers are evenly in contact with the rail.
• Post-Installation Testing: Restore the power supply of the door system and elevator. Conduct comprehensive functional tests: operate the door to open and close automatically at normal speed, check the rotation status of the rollers (no slipping or stagnation); measure the operation noise (normal value ≤ 45dB); verify the door’s opening/closing accuracy (no deviation from the door sill). If there is abnormal noise, jamming, or deviation, recheck the installation torque and gap immediately.

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During elevator maintenance, check the external state of the 25*M8 door hanger rollers through the maintenance cover. Ensure the roller body is free of cracks, deformation, or severe wear (wear depth ≤ 0.5mm); the M8 bolt is tight with no looseness; the roller’s rotation is smooth when pushed manually.
• Weekly Functional Check: Operate the elevator door to open and close multiple times, listen for abnormal noise (such as friction or creaking) from the roller area. Check if the door opens and closes in place (no overshoot or incomplete closure). If there is abnormal noise or door deviation, inspect the roller’s wear and rail contact status immediately.

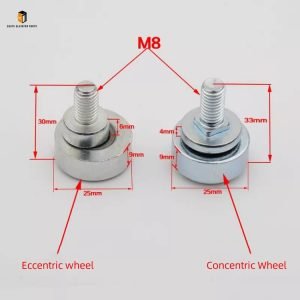

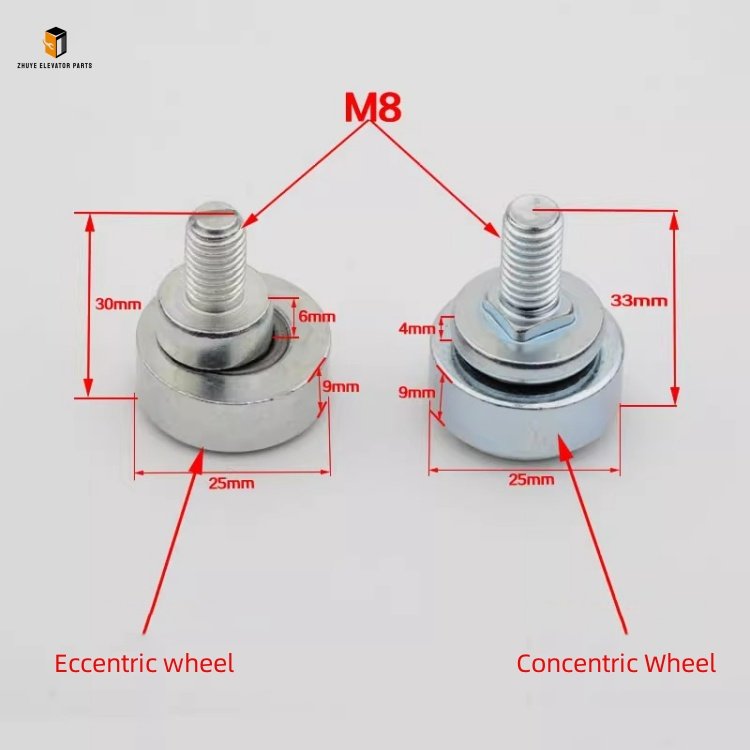

• Monthly Parameter Monitoring: Use a caliper to measure the outer diameter of the roller (original diameter: 25mm; replace if wear causes diameter reduction of more than 1mm). Apply a small amount of special bearing lubricant (provided by Nanjing Zhuye Elevatorparts) to the roller’s rotation surface to reduce wear. Check the M8 bolt for rust or thread damage—replace the bolt if necessary.

3. Regular Maintenance Schedule

• Quarterly Maintenance: Disconnect the power supply, remove the rollers (by unscrewing the M8 bolts), and clean the roller body, bearing, and mounting bracket with a professional degreaser. Inspect the bearing for loose or damaged balls—replace the roller if the bearing fails. Reinstall the rollers and retighten the M8 bolts according to the specified torque.
• Semi-Annual Performance Test: Conduct a comprehensive performance test, including rotation smoothness, wear degree, and load-bearing capacity. Use a professional rotation tester to detect the roller’s rotation resistance (normal value ≤ 4N). For elevators in high-traffic areas (e.g., shopping malls, airports) or harsh environments (high humidity, dust), increase the test frequency and check the door rail for deformation that may accelerate roller wear.
• Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Replace all rollers that are approaching the wear limit with genuine 25*M8 models. Inspect the elevator door hanger and rail for wear or deformation and repair them if necessary. Conduct a full-range calibration of the door system to ensure the rollers and rail operate in sync.

Recommended Replacement Cycle for Elevator Door Hanger Roller 25*M8

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or elevators with frequent door operation (more than 1500 times per day), the replacement cycle should be shortened to 1–1.5 years. Harsh conditions accelerate the wear of the roller body, corrosion of the bearing, and rust of the M8 bolt, significantly reducing the roller’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily door opening/closing times < 300) and clean, stable environments, the replacement cycle can be extended to 2–3 years—only if Nanjing Zhuye’s professional inspection confirms that the roller’s wear degree, rotation smoothness, and bearing performance are all intact.

3. Immediate Replacement Conditions

• The roller body is severely worn (outer diameter reduced by more than 1mm), cracked, or deformed; the bearing is stuck or makes abnormal noise, and the fault cannot be eliminated through lubrication.
• The M8 bolt is rusted, stripped, or damaged, leading to loose fixation of the roller (risk of roller detachment).
• The roller causes the elevator door to jam, deviate, or fail to open/close in place, and the fault cannot be corrected by adjustment.
• The roller’s rotation resistance exceeds 12N (confirmed by professional testing), affecting the normal operation of the door system.
