Elevator door contact EDC-92 Brief Introduction
|
Product Name |
Elevator door contact |
| Model Number | EDC-92 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|

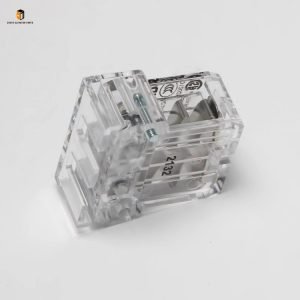

Elevator Door Contact EDC-92: Safety Signal Core from Nanjing Zhuye Elevatorparts

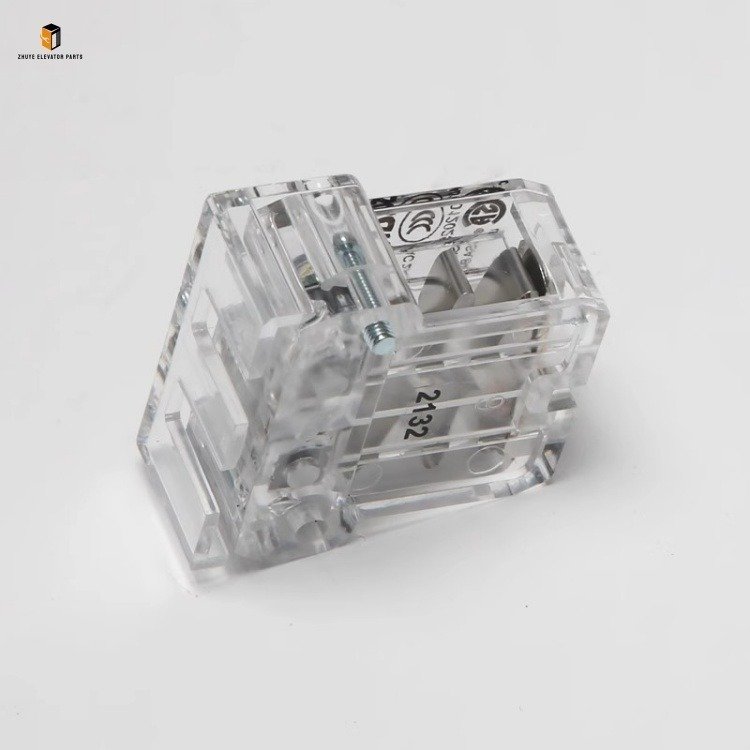

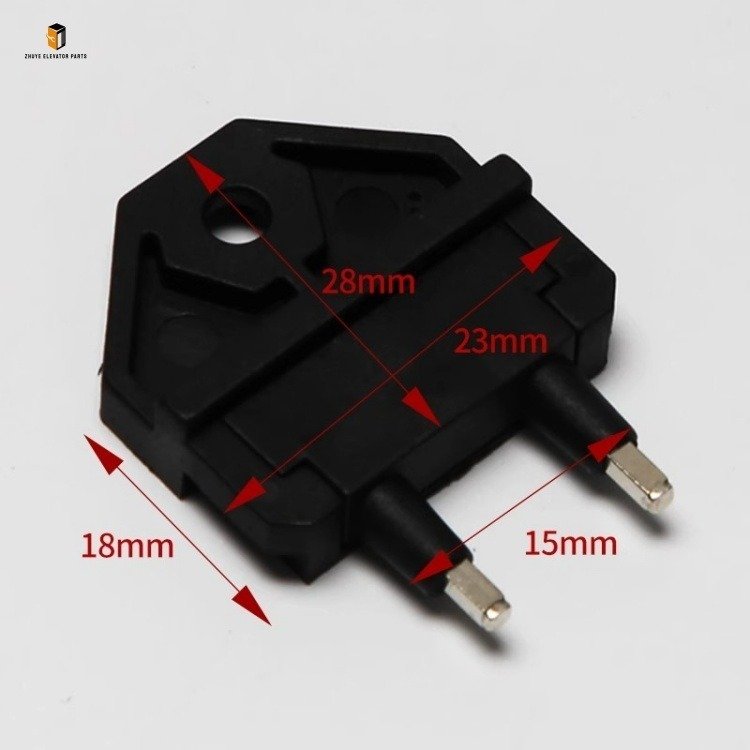

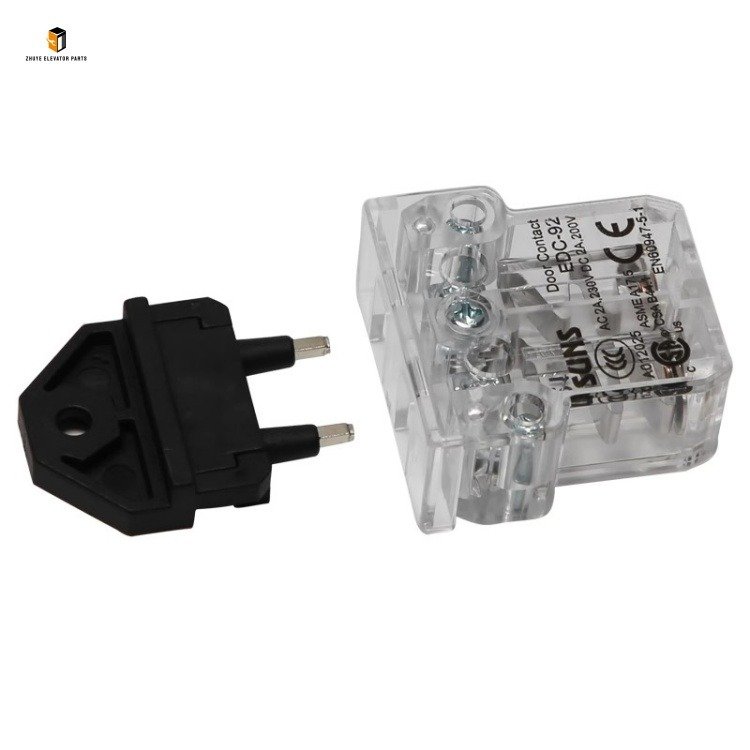

Elevator Door Contact EDC-92 is a critical safety signal component for elevator door systems, specifically designed to monitor the locking state of elevator car doors and landing doors. As a core part of the elevator safety interlock circuit, it transmits accurate “door locked” or “door unlocked” signals to the elevator controller—ensuring the elevator can only start and run when the doors are fully locked, and stopping immediately if the doors are unlocked unexpectedly during operation. Compatible with mainstream elevator door lock systems (including Schindler, OTIS, and KONE), the EDC-92 contact is widely applicable to residential, commercial, and industrial elevators. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional provider of high-quality elevator electrical components, the Elevator Door Contact EDC-92 fully complies with international elevator safety standards (EN 81-20, GB 7588) and electrical contact component specifications. Manufactured with premium silver alloy contacts and high-temperature resistant materials, it features excellent electrical conductivity, wear resistance, and anti-oxidation performance, winning trust from global elevator maintenance teams and manufacturers.
Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Precise Signal, Safe Interlock” and implements strict quality control for the Elevator Door Contact EDC-92. Each unit undergoes multi-stage pre-delivery inspections, including contact resistance testing, signal transmission accuracy verification, high-temperature durability evaluation, and anti-oxidation performance detection. The EDC-92 contact adopts advanced materials and technologies: the contact points are made of silver-nickel alloy, ensuring low contact resistance (≤ 50mΩ) and excellent arc-extinguishing performance, supporting stable signal transmission for over 1 million switching times; the shell is made of high-temperature resistant PA66 plastic with IP40 protection rating, adapting to the working temperature range of -20℃ to 120℃ in the door lock system; the wiring terminals are equipped with anti-loosening clamping structures, avoiding poor contact due to elevator vibration; the internal spring structure ensures reliable contact between the contact points. The standardized design enables seamless matching with most elevator door lock devices, simplifying selection and replacement for maintenance personnel.
Step-by-Step Usage Guide for Elevator Door Contact EDC-92
Door Contact EDC-92Hall Door Ball 32*17MMTo maximize the service life, operational stability, and user experience of the Elevator Red Square Button PB-12, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:
1. Professional Selection & Pre-Installation Preparation
Installation must be performed by certified elevator electricians. Prior to selection, confirm the elevator’s door lock device model and contact specification requirements (normally open/NO or normally closed/NC) to ensure compatibility with the EDC-92 contact. Consult Nanjing Zhuye Elevatorparts’ technical team if unsure about matching. Preparation steps: Cut off the elevator’s main power supply and secondary power supply, and lock the power switch; place a “Maintenance in Progress” warning sign at the elevator entrance and shaft access door; fix the elevator car at a flat floor with mechanical supports; open the car door and landing door lock device covers, and disconnect the wiring of the old contact (take photos to record the wiring position); clean the contact mounting position to remove dust, oil stains, and debris; prepare professional tools such as a screwdriver, multimeter, and wire stripper.
SignalFunctionFunctionSignalSignalFunctionFunctionFunctionFunction2. Correct Installation & Precision Adjustment
-
Contact Fixing: Take the Elevator Door Contact EDC-92 from Nanjing Zhuye Elevatorparts, align it with the preset mounting slots or holes on the door lock device, and fix it with the matching screws (torque: 2–3N·m). Ensure the contact is installed firmly without looseness, and the contact actuator is aligned with the door lock mechanism (ensuring the contacts are closed when the door is locked and open when the door is unlocked).
-
Wiring Connection: According to the recorded wiring position and Nanjing Zhuye Elevatorparts’ wiring manual, connect the signal wires of the EDC-92 contact to the corresponding interfaces of the door lock controller. Clearly distinguish between NO and NC contacts to avoid wrong wiring (incorrect wiring will cause signal failure and affect elevator safety). Tighten the wiring terminals firmly and use cable ties to organize the wire harness, avoiding contact with moving parts of the door lock.
-
Signal Test: Restore the secondary power supply first, and use a multimeter to test the contact state: When the door is locked, the NC contacts should be closed (resistance ≤ 1Ω), and the NO contacts should be open (resistance ≥ 1MΩ); when the door is unlocked, the state should be reversed. Manually open and close the door several times to confirm the contact switching is sensitive and the signal transmission is stable. Adjust the contact position if there is a signal delay or failure.
3. Post-Installation Testing & Daily Maintenance
-
Comprehensive Function Testing: Restore the elevator’s main power supply and switch to inspection mode. Operate the elevator to run up and down, testing the EDC-92 contact function at each floor: Confirm the elevator controller receives the “door locked” signal only when the doors are fully closed (elevator can start), and the “door unlocked” signal when the doors are opened (elevator cannot start). Test the emergency unlocking function to ensure the contact can accurately transmit the unlock signal.
-
Daily Inspection: Maintenance personnel should check the EDC-92 contact during daily shaft patrols: Observe the contact shell for damage, deformation, or loose mounting screws; check the wiring terminals for looseness, oxidation, or disconnection; use a multimeter to spot-check the contact resistance regularly (ensure it meets the standard). Clean the contact surface and surrounding area with a soft brush to remove dust and debris.
-
Regular Maintenance: Every 3 months, apply a small amount of contact cleaner to the contact pins (if oxidation is found) to restore conductivity (avoid using oil-based lubricants). Every 6 months, recheck the wiring connections and contact switching sensitivity. For elevators in high-humidity, high-temperature, or dusty environments, shorten the maintenance interval to 1 month and enhance anti-oxidation and dust-proof protection for the contact.
Recommended Replacement Cycle for Elevator Door Contact EDC-92
As a core signal component enduring long-term mechanical switching, electrical arcing, environmental erosion (humidity, dust, temperature changes), and contact wear, the Elevator Door Contact EDC-92 has a specified service life. Timely replacement is crucial to avoiding faults such as contact oxidation, poor contact, or switching failure—issues that may lead to incorrect signal transmission, causing the elevator to fail to start normally or run with doors open, endangering passenger safety.
1. Standard Replacement Cycle
Under normal operating conditions (elevator daily operation time 12–24 hours, daily door opening/closing times ≥ 1000, operating environment temperature -20℃ to 120℃, humidity 10%–95%), the recommended replacement cycle for the Elevator Door Contact EDC-92 is 2–3 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, contact wear tests, and electronic component aging evaluations. The cycle fully considers the high-frequency switching of the contact and the impact of the shaft environment on contact performance.
2. Adjustments for Special Scenarios
-
High-Traffic & Harsh Environments: For elevators in high-traffic areas (e.g., large shopping malls, airports with daily door opening/closing times ≥ 2000) or harsh environments (e.g., coastal areas with high salt spray, industrial sites with strong dust and electromagnetic interference), the replacement cycle is shortened to 1–1.5 years. High-frequency switching accelerates contact wear, while harsh environments cause rapid oxidation and aging of the contact.
-
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable shaft environments (constant temperature and humidity, little dust), the replacement cycle can be extended to 3–4 years—only after Nanjing Zhuye Elevatorparts’ technicians inspect and confirm that the contact resistance, switching sensitivity, and anti-oxidation performance meet factory standards.
3. Immediate Replacement Conditions
Elevator Door Contact EDC-92Elevator Hall Door Ball 32*17MMElevator Red Square Button PB-12elevator brake micro switchmodelReplace the Elevator Door Lock Contacts SEL2-A1Z immediately if any of the following issues occur, regardless of its service life:
-
The contact resistance exceeds 100mΩ, leading to poor signal transmission (manifested as the elevator failing to recognize the “door locked” signal or starting intermittently).
-
The contacts are severely oxidized, burned, or pitted (visible through inspection), causing intermittent signal loss or permanent contact failure.
-
The contact switching is stuck or delayed, leading to incorrect signal transmission (e.g., the elevator receives the “unlocked” signal when the door is locked).
-
The contact base is deformed or cracked due to high temperature or impact, and the internal structure is damaged—affecting the basic switching function and safety.
In conclusion, the Elevator Door Contact EDC-92 from Nanjing Zhuye Elevatorparts is a high-quality, reliable safety signal component tailored for modern elevator door systems. By following the correct selection, installation, maintenance, and replacement guidelines, elevator maintenance teams can effectively ensure the accurate transmission of elevator door lock signals, eliminate potential safety hazards caused by signal failure, and safeguard the lives of passengers. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic EDC-92 door contacts, plus professional support—including model matching, on-site wiring guidance, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for the safe signal transmission of your elevator door system.
