Description

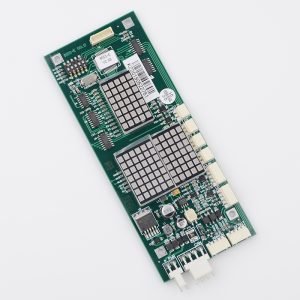

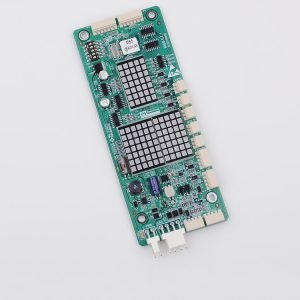

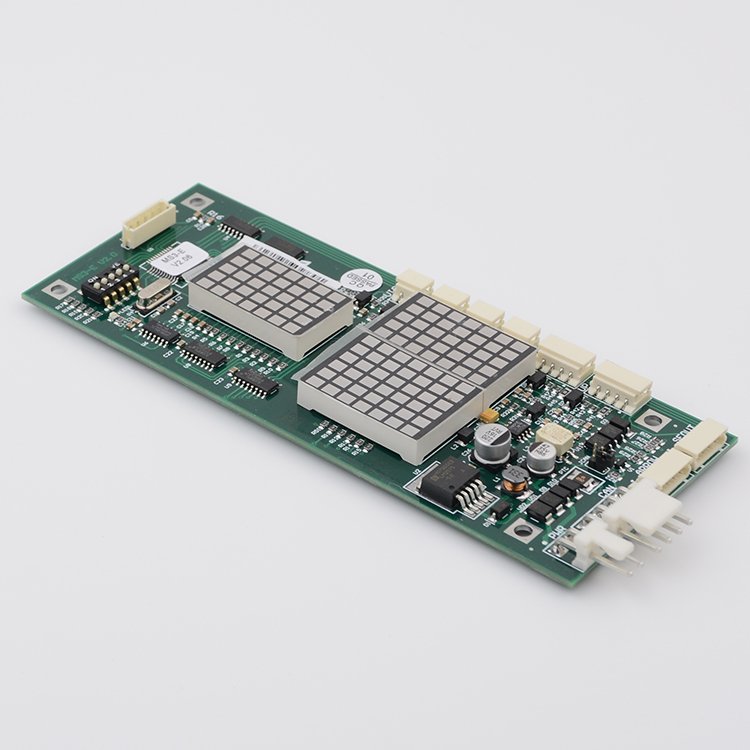

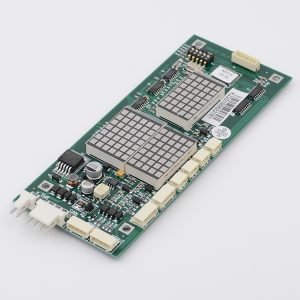

Thyssen elevator parts floor call display board MS3-E V2.06 display MS5-E2 Brief Introduction
|
Product Name
|
Thyssen elevator parts floor call display board MS3-E V2.06 display MS5-E2 |
|
Model
|
MS3-E V2.06 MS5-E2
|
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Display Board MS3-E V2.06 – The High-Definition Window Between Your Elevator and Its Passengers
Courtesy of Nanjing Zhuye Elevator Parts Co., Ltd.
Courtesy of Nanjing Zhuye Elevator Parts Co., Ltd.
Travelers rarely think about the electronics behind a smooth ride—yet every floor number, arrow and “Overload” message they see is generated by one postcard-sized circuit board. The MS3-E V2.06 is ThyssenKrupp’s third-generation multi-lingual display board, field-proven on Evolution®, Synergy® and TWIN® installations worldwide. Nanjing Zhuye Elevator Parts keeps factory-sealed MS3-E V2.06 units on the shelf for 24-hour despatch. Below we explain what the board does, how to install it in under eight minutes, and the replacement cycle that prevents expensive “blank screen” call-backs.
-
What MS3-E V2.06 Really Does Mounted inside the COP or LOP enclosure, the board:
-
Receives serial data (RS-485, 115 kbit s⁻¹) from the main controller (MC2, MCV or MVL)
-
Drives TFT, OLED or segment displays up to 800 × 480 px through a 50-pin LVDS header
-
Stores 16-language character library (Latin, Cyrillic, Arabic, Chinese) in 32 Mb on-board flash
-
Outputs 12 VDC / 5 VDC for auxiliary arrows, gongs and hall lanterns
-
Auto-detects portrait or landscape orientation via jumper J7—one part number fits every job
In short, if MS3-E V2.06 fails, the cab goes dark, passengers panic, and the controller logs “CAN-Disp Timeout”.
-
Where It Is Used
-
Thyssen Evolution® gearless 1.0–2.5 m s⁻¹
-
Synergy® machine-room-less up to 30 floors
-
TWIN® double-deck systems (two boards per car)
-
Retrofit MC2 to MC3 upgrades (firmware downward-compatible)
-
Installation – 8-Minute Swap Safety first: place controller on INSTALL, lock main breaker, wait 60 s for DC bus to discharge.
Step 1 – Open COP rear cover; photograph existing wiring. Step 2 – Undo four M3 screws holding MS3-E on plastic stand-offs; slide board out. Step 3 – Disconnect (in order) 50-pin LVDS, 4-way RS-485, 2-way 12 VDC supply and 3-way backlight inverter. Step 4 – Inspect LVDS for bent pins; if any pin is pushed, replace cable (Nanjing Zhuye part LVDS-50-300). Step 5 – Insert new MS3-E V2.06 until latches click; reconnect all plugs—keyed to prevent mis-mating. Step 6 – Power up; green D2 LED blinks 1 Hz for 5 s, then steady—board has sync’d with CPU. Step 7 – Run one full learn trip; verify floor numbers scroll correctly in all languages. No laptop or download is required; V2.06 firmware is pre-flashed to match Thyssen checksum 0x4E9A.
-
Daily Operation – What Passengers See
-
7-inch WVGA (800 × 480) TFT, 400 nits, 16:9 or 4:3 auto-detect
-
256-colour arrows that fade-in smoothly (no ghosting)
-
Audio-trigger output for gong—pulse width 200 ms, 24 VDC max 100 mA
-
Overload, fire, inspection icons pop up in <200 ms
-
Night-mode dimming via photo-sensor jumper—brightness drops to 30 % after 22:00
-
Replacement Cycle & Preventive Maintenance
-
High-traffic office (>1,000 starts day⁻¹) – clean vents every 6 months, replace board every 6 years
-
Residential tower (300–600 starts day⁻¹) – inspect annually, replace every 10 years
-
Low-rise freight (≤200 starts day⁻¹) – inspect every 18 months, replace every 12 years
Replace immediately if:
-
D2 LED stays red (internal 3.3 V rail fault)
-
Screen shows coloured stripes or “NO SIGNAL” after power cycling
-
RS-485 error “CAN-Disp Timeout” logged ≥3 times in 30 days
-
Backlight flickers >1 Hz (inverter FET failing)
-
EEPROM error 0xE2 after power dip (font library corrupt)
-
Extending Life – 3 Pro Tips
-
Keep 24 VDC supply ±3 %; spikes above 28 V destroy the on-board buck converter
-
Close COP rear cover properly; dust on LVDS pins is the #1 cause of ghosting
-
Tie LVDS cable away from brake resistor; radiated heat above 70 °C shortens TFT life by 50 %
-
Why Buy MS3-E V2.06 from Nanjing Zhuye Elevator Parts?
-
Factory-new, not repaired; board passes ICT, 4-hour burn-in at 60 °C, and final functional test
-
Firmware V2.06 flashed; matches Thyssen original checksum, no teach-in required
-
Anti-static aluminum bag + foam box—safe for air freight
-
Dual stock: 360 pcs Nanjing, 120 pcs Dubai—next-day delivery to 65 countries
-
Warranty: 24 months replacement, no factory RMA wait
-
Tech support: 7×24 WhatsApp/WeChat video call if fault codes persist
We reply within 12 h with price, lead time and a free Excel template that reminds you when the next display board replacement is due.
Conclusion The MS3-E V2.06 display board is the passenger’s only window into elevator status. A blank or striped screen triggers instant panic and hours of downtime. Keep a spare MS3-E V2.06 from Nanjing Zhuye on every service truck, swap it on schedule, and replace “no display” panic with a five-minute planned fix—one crystal-clear floor at a time.
