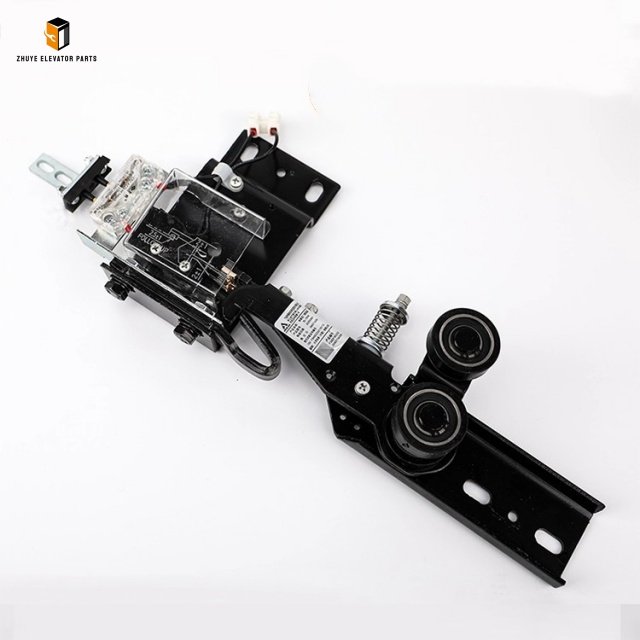

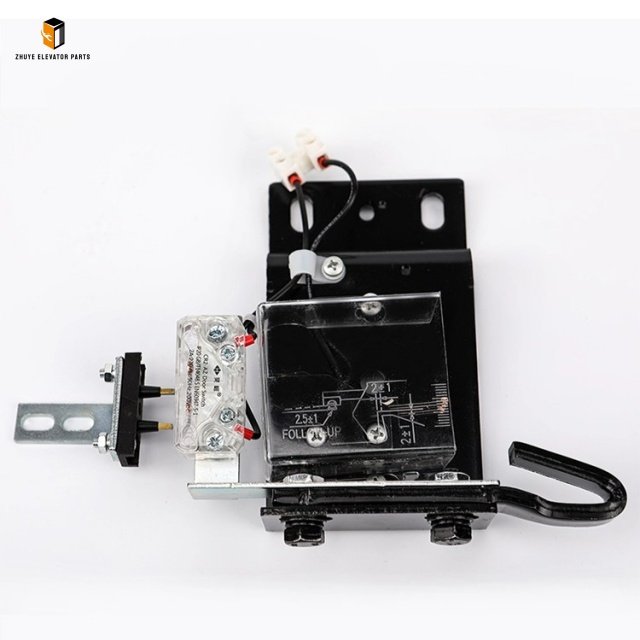

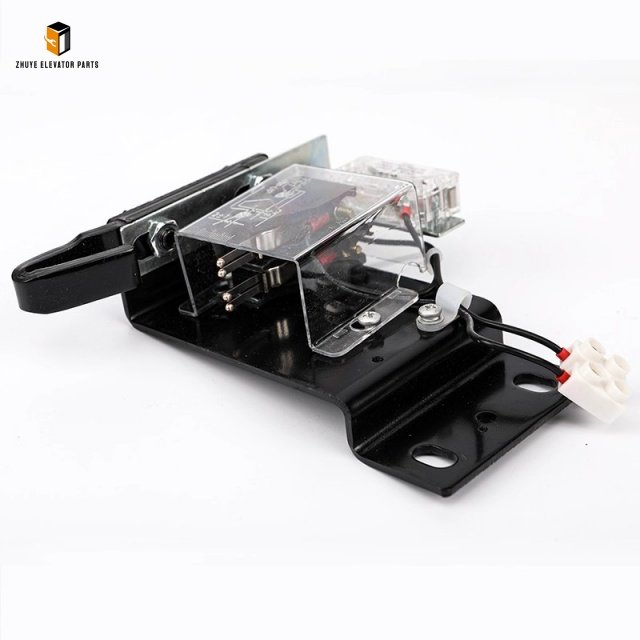

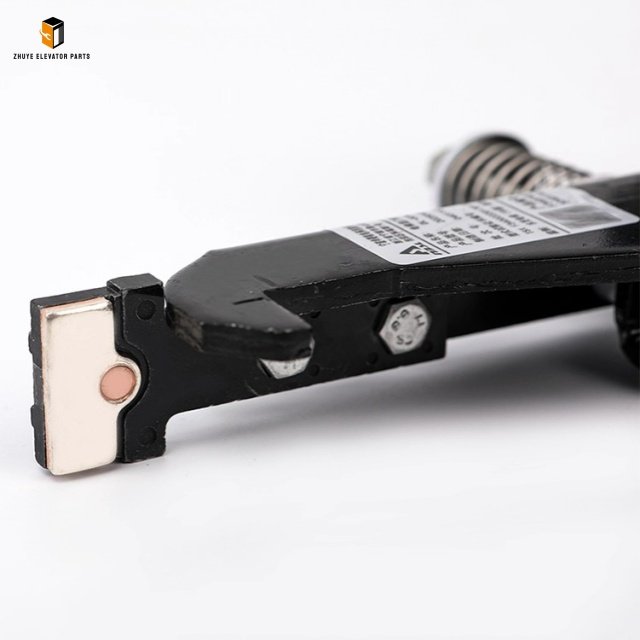

Elevator CV630 Hall Door Lock DL-5EN
Usage, Replacement Cycle & Maintenance Guide
by Nanjing Zhuye Elevatorparts

Introduction
The DL-5EN hall door lock is the critical safety component that prevents elevator movement when landing doors are not fully closed. Engineered for the CV630 door operator system and distributed worldwide by Nanjing Zhuye Elevatorparts, this EN 81-20/50 and ASME A17.1 compliant lock delivers 1 million+ cycles of reliable, low-noise operation. This 800-word guide covers correct installation, daily use, and the recommended replacement cycle to keep every landing safe and code-compliant.

—

1. Product Highlights
– Lock Type: Bi-directional, roller-actuated, 2-pole change-over
– Contacts: 10 A @ 250 V AC, silver-nickel, self-cleaning

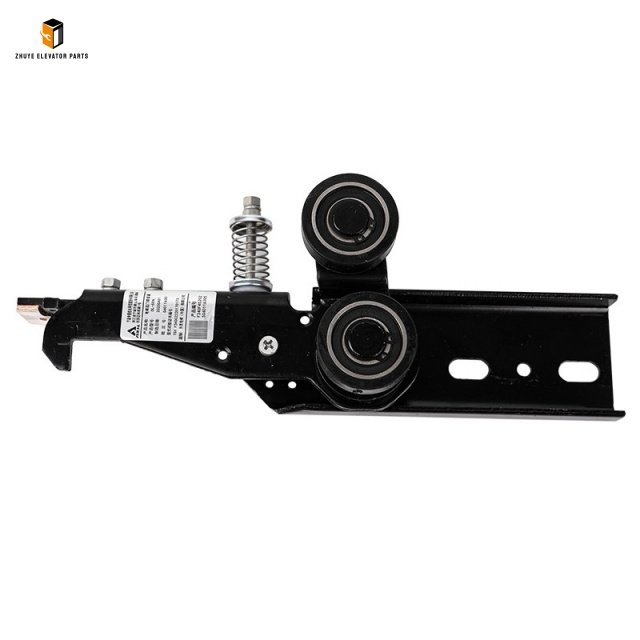

– Roller: Ø17 mm, 304 stainless, grease-packed
– Housing: IP54 ABS, anti-UV, -20 °C to +70 °C
– Mechanical Life: 1 million+ cycles
– Weight: 0.18 kg, snap-fit 30 mm backset

—

2. Installation Method
Step 1 – Preparation
De-energise the lift; lock-out/tag-out main breaker. Record serial number and mounting position.

Step 2 – Positioning
Mount on door header 5 mm before full closure, roller perpendicular to cam (±2°). Use M5 screws, torque 8 N·m.

Step 3 – Wiring
Route 3-core 1.5 mm² cable through PG9 gland. Connect NC contact in series with safety chain; earth housing.

Step 4 – Commissioning
Power-up; door must close fully, contacts change within 1 mm. Log trip distance and technician signature.

—

3. Daily & Preventive Maintenance
Daily (Technician)
Visual check – roller free, contacts closed, no cracks.

Monthly
Clean roller and cam with 70 % IPA; grease roller sparingly.

Quarterly
Measure contact resistance (<0.1 Ω), insulation (>10 MΩ). Cycle lock 50× under load.

Annually
Replace grease pack and torque screws. Full safety-chain test including governor.

—

4. Replacement Cycle & Indicators
| Duty | Replace Every | Cycles | Warning Signs |
| Standard | 5–7 years | 1 M | Roller wear >1 mm, >1 Ω resistance |
| Commercial | 3–4 years | 0.6 M | Contact welding, IP54 failure |
| High-speed | 2–3 years | 0.4 M | Cam scoring, vibration >2 g |

Replace immediately if:
– Contact welding or housing cracks
– Repeated “door lock fault” without mis-alignment
– Roller temperature >70 °C during normal run

Maintain one spare **DL-5EN** per 25 doors for <4-hour response.

—

5. Why Choose Nanjing Zhuye Elevatorparts?
• Full traceability – laser-etched serial & QR code
• Same-day global dispatch via DHL/FedEx Express
• 24/7 multilingual hotline and on-site training
• Competitive tiered pricing and custom roller sizes for OEM projects

—

6. Conclusion
The DL-5EN hall door lock is small but mission-critical. By following the installation, testing, and replacement guidelines—and sourcing only from Nanjing Zhuye Elevatorparts—you guarantee code compliance, reduce downtime, and protect every passenger who enters the lift.
