Description

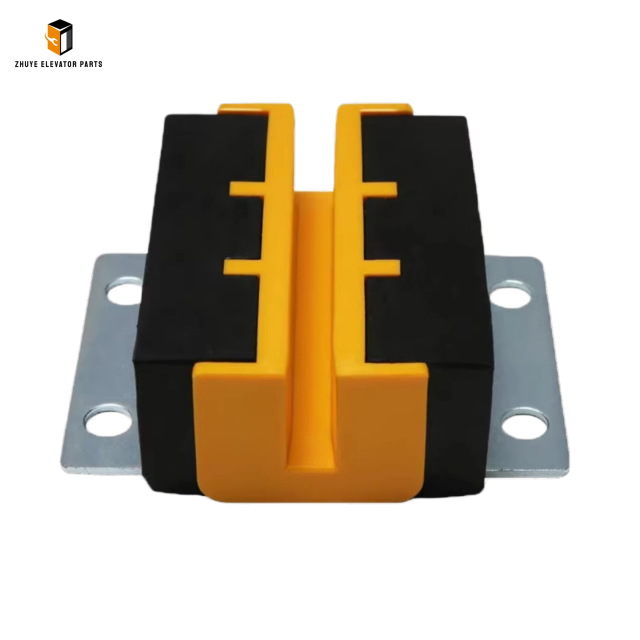

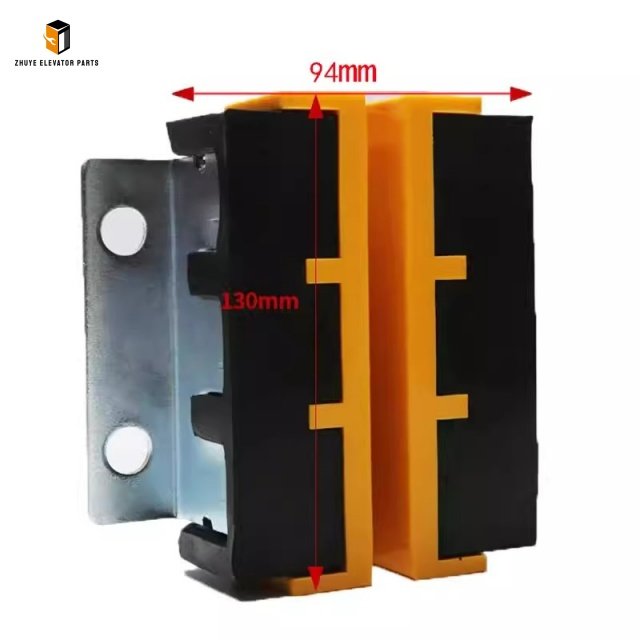

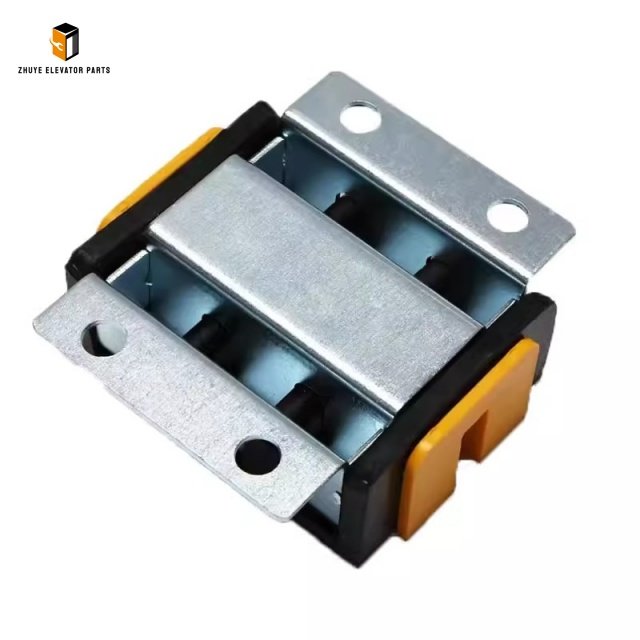

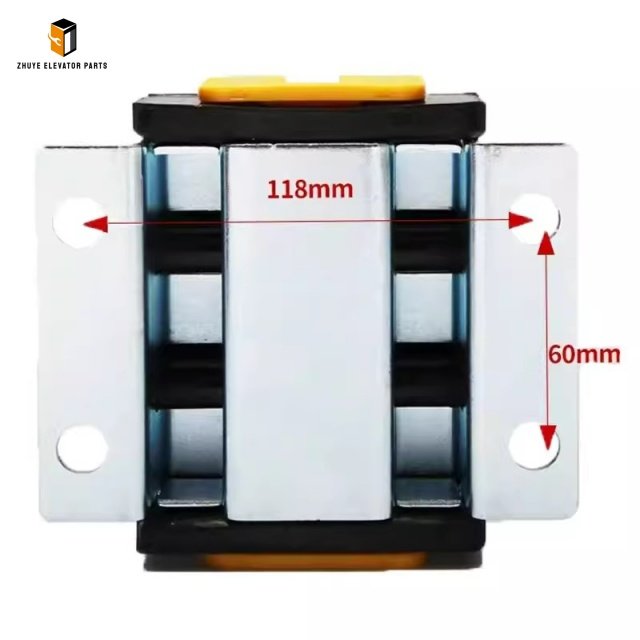

Elevator Counterweight Guide Shoe HF-03
|
Product Name |
Elevator Counterweight Guide Shoe |
| Model Number | HF-03 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Counterweight Guide Shoe HF-03 for Thyssen Elevators – Stable & Durable
The elevator counterweight guide shoe is a core safety and operation component that keeps the elevator counterweight frame running smoothly along the guide rail, maintaining balance and stability for the entire elevator system. The Elevator Counterweight Guide Shoe HF-03 is a precision-engineered component exclusively designed for Thyssen elevator systems, serving as a direct replacement for original Thyssen counterweight guide shoes to ensure perfect compatibility and consistent performance. As a professional and globally trusted supplier of high-quality elevator parts, Nanjing Zhuye Elevatorparts provides premium HF-03 counterweight guide shoes that meet strict international elevator safety and quality standards, widely used in elevator routine maintenance, retrofitting, and parts replacement projects across the world, and highly recognized by elevator maintenance teams and property management firms.
This HF-03 counterweight guide shoe is manufactured in full accordance with Thyssen’s original equipment specifications, featuring a robust, wear-resistant structure and precise rail-fitting design. It is crafted from high-strength, anti-friction materials to withstand long-term, high-frequency operation, effectively reducing friction between the counterweight frame and guide rail, minimizing running noise and shaking, and extending the service life of both the guide rail and counterweight assembly. Unlike roller-type guide shoes, this sliding counterweight guide shoe offers stable performance, low maintenance requirements, and strong adaptability to various operating environments. Proper installation, standardized usage, and regular inspections are critical to maximize its service life and ensure elevator safety.
Standardized Installation & Usage Methods
Safety is the top priority during the installation and maintenance of the Elevator Counterweight Guide Shoe HF-03. Before starting any work, maintenance technicians must cut off the elevator’s main power supply, switch the entire system to maintenance mode, and post a clear “Maintenance in Progress” warning sign to prevent accidental elevator startup and ensure on-site safety. First, confirm that the HF-03 model matches the counterweight frame and guide rail specifications of the target Thyssen elevator to avoid installation mismatches.
Next, carefully remove the old, worn counterweight guide shoe from the Thyssen elevator counterweight frame, and thoroughly clean the mounting base and contact surface of the guide rail to remove dust, oil stains, debris, and rust. Impurities left on these surfaces will accelerate wear and cause abnormal noise during operation. Align the new HF-03 guide shoe with the preset mounting holes on the counterweight frame, secure it tightly with matching high-strength bolts, and tighten the bolts moderately to ensure a firm fit without damaging the mounting base.
After installation, adjust the gap between the HF-03 guide shoe and the guide rail to the standard range recommended by Thyssen—too narrow a gap causes rigid friction, while an overly wide gap leads to unstable counterweight movement. Manually push the counterweight frame to test its sliding state, confirming smooth movement without jamming, squeaking, or obvious deviation. In daily use, avoid elevator overloading and severe impact on the counterweight system, as these will damage the guide shoe. Nanjing Zhuye Elevatorparts recommends cleaning the guide shoe and guide rail every 3 months, and conducting a full inspection every 6 months to check wear depth, bolt tightness, and structural integrity.
Replacement Cycle & Critical Replacement Signs
The service life of the Thyssen-specific Elevator Counterweight Guide Shoe HF-03 varies depending on operating frequency, load capacity, and environmental conditions, with flexible replacement cycles for different usage scenarios.
Under normal residential building conditions—moderate passenger flow, standard daily operation hours, and a dry, clean environment—the standard replacement cycle for the HF-03 guide shoe is 24-36 months, ensuring stable performance without excessive wear.
For elevators in high-traffic public locations such as commercial malls, hospitals, office buildings, and transportation hubs, Thyssen elevators run continuously for long periods, leading to accelerated wear of the counterweight guide shoe. In such high-intensity use scenarios, the replacement cycle should be shortened to 12-18 months to avoid performance degradation and sudden failures.
In harsh operating environments, including humid underground elevator shafts, coastal areas with high salt spray, or dusty industrial buildings, the guide shoe material ages and corrodes faster. It is recommended to replace the HF-03 guide shoe every 18-24 months to eliminate potential safety hazards in advance.
Immediate replacement is mandatory if any of the following faults are detected, even within the standard replacement cycle: excessive wear of the guide shoe lining exceeding the safe threshold; obvious cracks, deformation, or peeling of the guide shoe body; frequent abnormal grinding or rattling noise during elevator operation; unstable counterweight movement and obvious car shaking; or loose mounting bolts that cannot be securely fastened. Continuing to use a damaged HF-03 guide shoe will not only affect riding comfort but also damage the elevator guide rail and counterweight frame, resulting in higher long-term maintenance costs.
Why Choose Nanjing Zhuye Elevatorparts
The Elevator Counterweight Guide Shoe HF-03 supplied by Nanjing Zhuye Elevatorparts is produced in strict compliance with Thyssen elevator original standards, using high-density, wear-resistant composite materials for the lining and a heavy-duty metal frame for enhanced durability. Each product undergoes strict factory quality tests, including wear resistance testing and fit verification, ensuring 100% compatibility with Thyssen elevator systems and stable, reliable performance.
With years of professional experience in elevator parts manufacturing and global distribution, Nanjing Zhuye Elevatorparts offers stable product quality, sufficient inventory, fast delivery, and professional technical support. The HF-03 counterweight guide shoe features a hassle-free, direct-fit installation design with no modifications required, greatly reducing elevator downtime and maintenance costs. Choosing our products guarantees stable, safe, and efficient operation of Thyssen elevators, delivering a comfortable riding experience for passengers.
