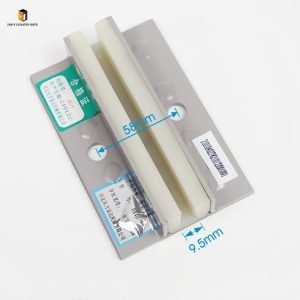

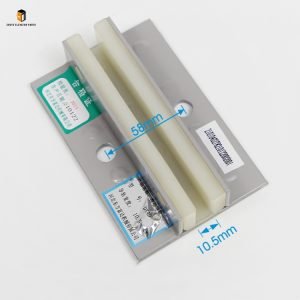

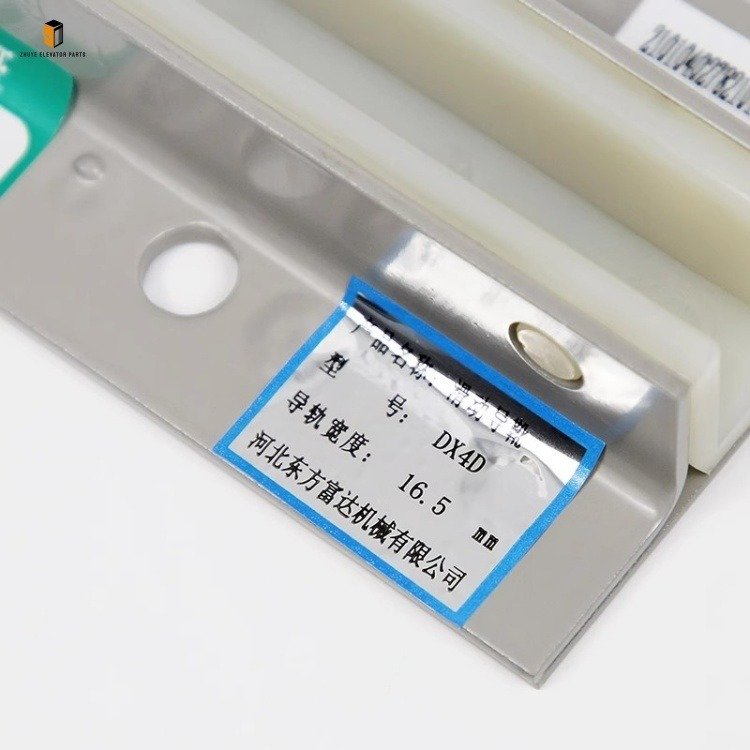

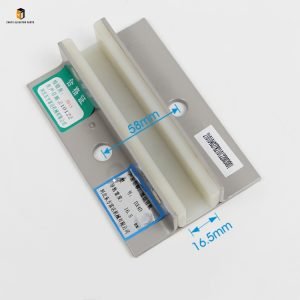

Elevator counterweight guide shoe DX4D Brief Introduction

Product Name	Elevator counterweight guide shoe
Model Number	DX4D
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Counterweight Guide Shoe DX4D: Stable Guidance Core from Nanjing Zhuye Elevatorparts

Elevator Counterweight Guide Shoe DX4D is a critical guiding and buffering component for elevator counterweight systems, specifically designed to ensure the stable and smooth operation of the counterweight during elevator lifting. Installed on the counterweight frame, it clamps the elevator guide rail tightly and slides along the rail with the movement of the counterweight, limiting the horizontal deviation of the counterweight and preventing collision with the shaft wall. The integrated buffer pad design effectively absorbs vibration and reduces noise generated during operation, while the wear-resistant structure ensures long-term reliable guidance. Widely compatible with medium and large-load elevators (load capacity 800–2000kg) such as commercial complexes, office buildings, and high-rise residential buildings, the DX4D counterweight guide shoe is an essential component for maintaining the balance and safety of the elevator system. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional provider of high-quality elevator mechanical components, the Elevator Counterweight Guide Shoe DX4D fully complies with international elevator safety standards (EN 81-20, GB 7588) and mechanical component technical specifications. Manufactured with premium materials and precision machining technology, it features excellent wear resistance, strong load-bearing capacity, and stable performance in harsh shaft environments, earning recognition from global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Precise Guidance, Stable Operation” and implements rigorous quality control for the DX4D elevator counterweight guide shoe. Each unit undergoes multi-stage pre-delivery inspections, including dimensional accuracy testing, wear resistance verification, load-bearing capacity detection, and vibration absorption performance evaluation. The DX4D guide shoe adopts advanced materials and technologies: the base is made of high-strength cast iron (HT250) with precision machining, ensuring structural stability and load-bearing capacity up to 50kN; the buffer pad is made of high-quality polyurethane (PU) or nylon, with a Shore hardness of 85–90A, achieving excellent wear resistance and vibration absorption; the adjusting bolt is made of carbon steel with quenching treatment, ensuring precise adjustment of the clamping force between the guide shoe and the rail; the sliding surface of the buffer pad is designed with a concave arc structure, perfectly fitting the guide rail (adaptable to guide rail models T75, T89, T114) to ensure uniform force distribution. The standardized DX4D structure enables seamless matching with mainstream counterweight frames, simplifying installation and replacement.

Step-by-Step Usage Guide for Elevator Counterweight Guide Shoe DX4D

To maximize the service life, guidance accuracy, and operational stability of the Elevator Counterweight Guide Shoe DX4D, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:

1. Professional Selection & Pre-Installation Preparation

Installation must be performed by certified elevator technicians. Prior to selection, refer to the elevator’s maintenance manual or consult Nanjing Zhuye Elevatorparts’ technical team to confirm that the DX4D guide shoe matches the elevator’s counterweight frame model, guide rail specification, and load capacity. Preparation steps: Cut off the elevator’s main power supply and lock the power switch; use a hoisting device to stabilize the counterweight at a safe position and fix it with mechanical supports; place a “Maintenance in Progress” warning sign at the elevator entrance and shaft access door; clean the counterweight frame’s guide shoe mounting position, guide rail surface, and surrounding area to remove dust, oil stains, and rust.

2. Correct Installation & Precision Adjustment

Guide Shoe Fixing: Take the DX4D counterweight guide shoe from Nanjing Zhuye Elevatorparts, align it with the mounting hole on the counterweight frame, and fix it with high-strength bolts (torque: 40–50N·m). Ensure the guide shoe is installed vertically without tilting, and the buffer pad is facing the guide rail.
Clamping Force Adjustment: Use a wrench to adjust the adjusting bolt on the DX4D guide shoe, making the buffer pad clamp the guide rail tightly. The standard clamping gap between the buffer pad and the guide rail is 0.5–1mm (use a feeler gauge to measure). Ensure the clamping force is uniform on both sides of the guide rail to avoid uneven wear of the buffer pad or excessive friction affecting elevator operation efficiency.
Installation Inspection: Manually push the counterweight to move up and down along the guide rail, checking if the movement is smooth without jamming or abnormal noise. Observe the contact between the buffer pad and the guide rail—ensure the entire sliding surface is in contact uniformly, without partial contact or gaps.

3. Post-Installation Testing & Daily Maintenance

Function Testing: Restore the elevator’s power supply and switch to inspection mode. Operate the elevator to run up and down at low speed, observing the counterweight’s operation state through the shaft inspection window. Ensure there is no abnormal vibration, noise, or horizontal deviation of the counterweight; use a vibration tester to confirm the vibration amplitude is ≤ 0.2mm.
Daily Inspection: Maintenance personnel should check the DX4D guide shoe during daily shaft patrols: Observe the buffer pad for wear, cracks, or deformation; check if the guide shoe’s fixing bolts are loose; check the guide rail surface for scratches caused by the guide shoe; listen for abnormal noise during elevator operation, which may indicate guide shoe failure.
Regular Maintenance: Every 3 months, clean the guide shoe’s buffer pad, adjusting bolt, and guide rail surface with a soft brush to remove dust and debris; apply a thin layer of special lubricant (recommended by Nanjing Zhuye Elevatorparts) to the guide rail surface to reduce friction. Every 6 months, measure the wear thickness of the buffer pad—if the wear exceeds 3mm, adjust the clamping gap in time; if the wear exceeds 5mm, prepare for replacement. For elevators in high-traffic or harsh environments, shorten the maintenance interval to 1 month.

Recommended Replacement Cycle for Elevator Counterweight Guide Shoe DX4D

As a core mechanical component enduring long-term friction with the guide rail, load-bearing of the counterweight, mechanical vibration, and environmental erosion (humidity, dust, temperature changes), the DX4D elevator counterweight guide shoe has a specified service life. Timely replacement is crucial to avoiding faults such as excessive wear of the buffer pad, deformation of the guide shoe base, or loss of clamping force—issues that may lead to unstable operation of the counterweight, collision with the shaft wall, or even damage to the elevator traction system, posing serious safety risks.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, daily running times ≥ 1000, shaft environment temperature -20℃ to 80℃, humidity 10%–95%), the recommended replacement cycle for the DX4D elevator counterweight guide shoe is 2–3 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, wear tests, and global user feedback on elevator guiding components.

2. Adjustments for Special Scenarios

High-Load & High-Traffic Environments: For elevators with long-term full-load operation (load ≥ 1600kg) or in high-traffic locations (e.g., large shopping malls, airports with daily operation time ≥ 20 hours), the replacement cycle is shortened to 1–1.5 years. High load and frequent operation accelerate the wear of the buffer pad and the aging of the guide shoe structure.
Low-Frequency Use & Stable Environments: For elevators with low usage frequency (e.g., small office buildings, villa elevators with daily operation time < 8 hours) and stable shaft environments (constant temperature and humidity), the replacement cycle can be extended to 3–4 years—only after Nanjing Zhuye Elevatorparts’ technicians inspect and confirm that the buffer pad wear, guide shoe base integrity, and clamping force meet factory standards.

3. Immediate Replacement Conditions

Replace the DX4D elevator counterweight guide shoe immediately if any of the following issues occur, regardless of its service life:

The buffer pad is severely worn (wear thickness > 5mm) or has obvious cracks, leading to reduced vibration absorption performance or inability to clamp the guide rail reliably.
The guide shoe base is deformed, cracked, or the fixing bolts are loose and cannot be tightened, affecting the guiding accuracy.
The adjusting bolt fails, and the clamping force cannot be adjusted, resulting in excessive gap between the guide shoe and the guide rail (> 2mm) or excessive friction.
Professional testing confirms that the guide shoe’s vibration absorption performance is reduced by more than 40%, causing obvious vibration and noise of the counterweight during operation.

In conclusion, the Elevator Counterweight Guide Shoe DX4D from Nanjing Zhuye Elevatorparts is a high-quality, highly compatible guiding component tailored for medium and large-load elevator systems. By following the correct selection, installation, maintenance, and replacement guidelines, elevator maintenance teams can effectively ensure the stable operation of the counterweight system, reduce mechanical failures, and extend the service life of the elevator. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic DX4D counterweight guide shoes, plus professional support—including model matching, on-site installation guidance, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for the stable guidance of your elevator counterweight system.
