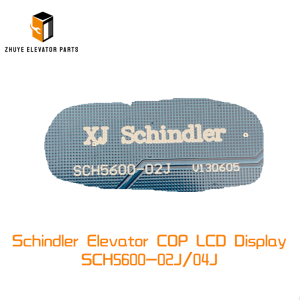

Elevator COP LCD Display SCH5600-02J/04J: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Elevator COP LCD Display SCH5600-02J/04J

1. Pre-Installation Preparation

• SCH5600-02J: Best for basic COP needs (core controls + status display), compatible with standard elevator control protocols (RS485, CAN bus).
• SCH5600-04J: Ideal for advanced applications (multimedia, remote content updates), supports Ethernet/USB connectivity and additional communication protocols.

  Ensure the display’s voltage rating (typically 24V DC), COP panel cutout dimensions, and protocol compatibility match your system’s requirements.

2. Installation & Operation Steps

• Mounting the COP Display:
  • Locate the designated COP panel opening in the elevator cab—typically on the front wall or door header, at eye level (1.5–1.7 meters above the floor) for universal accessibility.
  • Remove the existing display (if replacing) by unscrewing the retaining brackets from the rear of the COP panel. Align the SCH5600-02J/04J with the cutout, ensuring the screen is level and flush with the panel (no gaps) to prevent dust accumulation. Secure the display from the rear using the provided anti-vibration screws (torque to 0.5–0.8 Nm) to protect internal circuitry from elevator movement.
• Wiring Connection:
  • Follow the variant-specific wiring diagram provided by Nanjing Zhuye to connect the display to the elevator’s main control system and power supply:
    • Connect the power wires (positive/negative) to the designated terminals—incorrect polarity can short-circuit the display.
    • Attach the communication wires to the COP controller to enable floor selection signals, door control commands, and real-time data sync (floor numbers, direction, load capacity).
    • For SCH5600-04J: Connect Ethernet/USB cables (if applicable) to the building’s management system or external storage devices for multimedia content updates (e.g., safety announcements, building maps).
    • Secure all connections with terminal blocks and route wiring neatly to avoid interference with COP buttons or moving parts (e.g., door mechanisms).
• Configuration & Functional Testing:
  • Restore power to the elevator and access the display’s configuration menu via the control panel or Nanjing Zhuye-approved diagnostic software:
    • Set display parameters: brightness (30–50% for energy efficiency), contrast, language, floor mapping (assign correct floor numbers to selection controls), and screen timeout (5–10 minutes for idle periods).
    • Calibrate touch functionality (if equipped) for SCH5600-04J: Follow on-screen prompts to ensure precise tap responses.
    • Test core functions:
      • Verify floor selection triggers elevator movement to the correct destination.
      • Check door open/close controls operate smoothly and respond to inputs.
      • Simulate emergency calls to confirm the display connects to the building’s monitoring system and shows help instructions clearly.
    • For SCH5600-04J: Test multimedia playback (e.g., a sample safety video) to ensure audio/visual clarity (if integrated with speakers).

3. Routine Usage Maintenance

• Conduct weekly visual inspections: Check for smudges, dust, or debris on the screen (clean with a soft, lint-free microfiber cloth) and ensure the display is securely mounted.
• Test functionality monthly: Verify core controls (floor selection, door operation) and data synchronization (real-time floor updates) work accurately—document results in maintenance records.
• Inspect wiring connections quarterly for looseness, corrosion, or wear; tighten terminals or replace damaged cables with genuine parts from Nanjing Zhuye.
• Update firmware semi-annually (especially for SCH5600-04J) as recommended by Nanjing Zhuye to address bugs, improve compatibility, and add new features.
• Keep the COP panel area dry (humidity ≤60%) and temperature-stable (10–35°C) to prevent component degradation or screen fogging.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Display damage: Cracked screen, persistent dead pixels (more than 3), significant backlight bleeding, or color distortion that impairs readability.
• Functional failures: Unresponsive controls (touch/buttons), failure to send floor/door signals, or loss of communication with the main controller—despite wiring checks.
• Physical damage: Water intrusion, corroded terminals, loose mounting, or damaged wiring harnesses that cannot be repaired.
• Multimedia malfunctions (SCH5600-04J): No audio/visual playback, failed content updates, or incompatible connectivity with building systems.
• Obsolescence: Inability to support software updates or integrate with elevator system upgrades—older units may lack compatibility with new safety protocols or accessibility features.

3. Maintenance to Extend Service Life

• Avoid using harsh chemicals (e.g., alcohol, ammonia-based cleaners) or abrasive materials on the screen—use only water or mild detergent with a soft cloth.
• Apply a thin, clear protective film (optional) to the screen to reduce scratch risk from keys, bags, or frequent use.
• Protect the display from direct sunlight or extreme temperature fluctuations (e.g., near air vents) to avoid LCD fading or component overheating.
• Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs, as counterfeit displays may have inferior components, incorrect wiring, or compatibility issues.

Why Choose Nanjing Zhuye Elevator Parts?

• Universal Compatibility: Both SCH5600 variants are engineered to work with most elevator brands and control systems, eliminating compatibility risks and simplifying replacement.
• Strict Quality Assurance: Each unit undergoes comprehensive testing—including screen clarity, control responsiveness, data synchronization, and environmental durability (temperature, humidity)—to guarantee reliable performance in high-traffic environments.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from variant selection and installation guidance to troubleshooting multimedia or connectivity issues (for SCH5600-04J).
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers COP displays promptly worldwide, minimizing elevator downtime during replacement.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you balance passenger experience, maintenance budgets, and compliance requirements.
