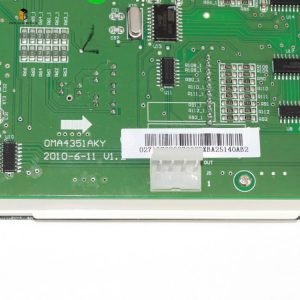

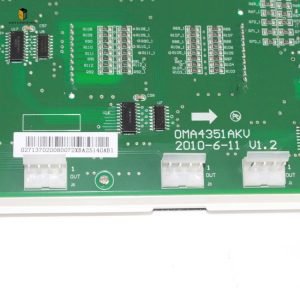

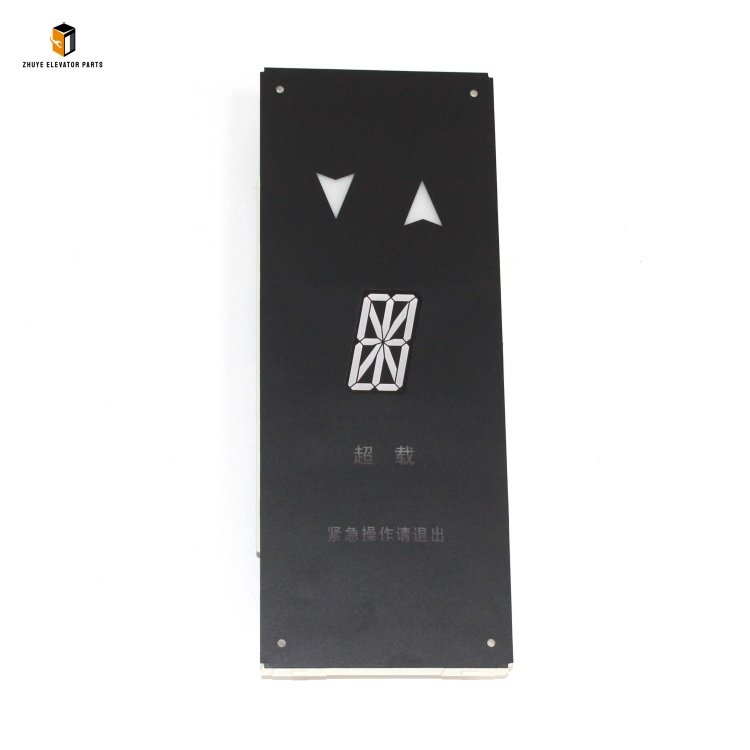

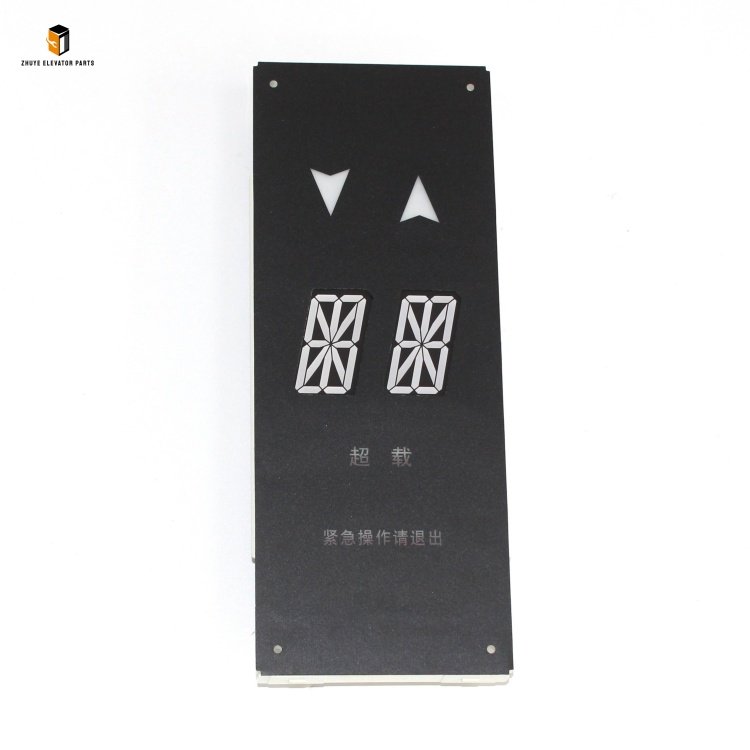

Elevator cop display board XBA25140AB1/AB2 Brief Introduction

Product Name	Elevator cop display board
Model Number	XBA25140AB1 XBA25140AB2 XTD7021V2.0
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator COP Display Board XBA25140AB1/AB2: Intuitive Information Core from Nanjing Zhuye Elevatorparts

The Elevator COP (Car Operating Panel) Display Board XBA25140AB1/AB2 is a critical human-machine interaction and information display component for elevator systems, specifically designed to show real-time elevator status (e.g., floor number, running direction, door status) and interact with passengers via button inputs. As the “information window” of the elevator car, it enables passengers to clearly grasp the elevator’s operating state and send ride requests, while also providing fault alerts for maintenance personnel. The Elevator COP Display Board XBA25140AB1/AB2, exclusively supplied by Nanjing Zhuye Elevatorparts (a professional and trusted distributor of high-quality elevator components), fully complies with international elevator safety standards (EN 81-20, GB 7588) and is perfectly compatible with elevator models matching XBA25140AB1/AB2 specifications. Featuring high display clarity, stable signal transmission, and durable button performance, this display board provides reliable interaction guarantees for elevators in residential buildings, commercial complexes, office towers, hospitals, and other buildings worldwide.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “safety first, quality-oriented” and implements strict unified quality control over the XBA25140AB1/AB2 elevator COP display board. Each display board undergoes a multi-stage pre-delivery inspection, including display clarity testing, button durability verification, circuit stability detection, and environmental adaptability trials. The XBA25140AB1/AB2 adopts a high-brightness LED display screen, wear-resistant metal or plastic buttons, and a stable integrated circuit: the LED screen ensures clear visibility under various light conditions (luminance ≥ 500cd/m²) with low power consumption; the buttons have a service life of over 1 million presses, resisting long-term frequent operation; the integrated circuit supports stable signal transmission with a response time ≤ 100ms, avoiding display delays or button misoperation. Their interface and dimension designs are completely consistent with original specifications, enabling seamless replacement without modifying the original elevator control system.

Step-by-Step Usage Guide for Elevator COP Display Board XBA25140AB1/AB2

To ensure the reliable operation of the elevator’s human-machine interaction system and extend the service life of the XBA25140AB1/AB2 COP display board, follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for installation, operation, and maintenance:

1. Professional Installation & Commissioning

Installation must be performed by certified technicians familiar with elevator control systems. Prior to installation, confirm the compatibility of the specific model (XBA25140AB1 or XBA25140AB2) with the target elevator model using the detailed compatibility manual provided by Nanjing Zhuye Elevatorparts. The steps are as follows:

Safety Preparation: Cut off the elevator’s main power supply and hang a “Maintenance in Progress—Do Not Power On” sign at the power switch. Fix the elevator car to a safe position using a safety clamp. Open the COP cover on the car wall and disconnect the wiring of the old display board (record the wiring position to avoid wrong connection).
Display Board Installation: Align the XBA25140AB1/AB2 display board with the mounting position in the COP and fix it firmly using high-strength screws provided by Nanjing Zhuye Elevatorparts. Ensure the display screen is horizontally installed with no tilt, and the buttons are flush with the COP panel (no protrusion or depression). Connect the power cord, signal wire, and button wire to the corresponding terminals according to the wiring record and the technical manual.
Wiring & Calibration: After wiring, check the connection tightness and polarity (reverse connection may damage the display board). Restore the COP cover and power on the elevator. Calibrate the display parameters: confirm the floor number, running direction, and door status are accurately displayed; test each button to ensure it can correctly send floor selection or door control signals. Adjust the LED screen brightness (via built-in potentiometer) to ensure comfortable visibility for passengers.
Post-Installation Testing: Conduct comprehensive functional tests. Operate the elevator to run up and down between multiple floors, check if the display board real-time updates the floor number and running direction; test the door open/close buttons and emergency stop button (if integrated) to verify their functionality. Simulate a fault (e.g., door obstruction) to confirm the display board correctly shows the fault alert. If there is incorrect display, unresponsive buttons, or signal delay, recheck the wiring and calibration immediately.

2. Daily Operation & Routine Inspection

Regular inspections are crucial to early detection of display board faults and ensuring smooth passenger interaction. Maintenance personnel should incorporate the following checks into their daily patrols:

Daily Visual Inspection: Check the external state of the XBA25140AB1/AB2 display board. Ensure the display screen is free of scratches, fogging, or dead pixels; the buttons are intact with no sticking or looseness; the COP cover is tightly closed and free of damage. Wipe the screen and buttons with a dry, lint-free cloth to remove fingerprints and dust.
Weekly Functional Check: Test all buttons on the display board (floor selection, door open/close, alarm) to ensure they are responsive and can correctly trigger corresponding functions. Check the display clarity and brightness—if the screen is dim or flickering, inspect the power supply and wiring immediately. Verify that the floor number, direction indicator, and door status are accurately synchronized with the elevator’s actual operation.
Monthly Parameter Monitoring: Use a multimeter to detect the display board’s input voltage (ensure it is within the standard range of DC 24V ± 2V). Check the wiring terminals for oxidation or loose connections—clean the terminals with a professional cleaner if necessary and retighten loose screws. For elevators in harsh environments, check the display board’s internal wiring for signs of corrosion.

3. Regular Maintenance Schedule

Systematic maintenance can effectively extend the service life of the XBA25140AB1/AB2 COP display board. Follow Nanjing Zhuye Elevatorparts’ recommended maintenance plan:

Quarterly Maintenance: Disconnect the power supply, remove the COP cover, and thoroughly clean the display board’s surface, buttons, and terminals with a dry cloth. Apply a small amount of contact lubricant to the button hinges (if applicable) to ensure smooth operation. Check the internal wiring for aging or damage and replace it if necessary.
Semi-Annual Performance Test: Conduct a comprehensive performance test, including display accuracy, button response speed, and signal stability. Use a professional tester to detect the button response time (normal value ≤ 200ms) and display refresh rate (≥ 60Hz). For elevators in high-traffic areas (e.g., shopping malls, airports), increase the test frequency and check for button wear.
Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Disassemble the display board (by professional personnel) to inspect internal components (such as capacitors and resistors) for aging or damage. Replace worn buttons or damaged LED modules with genuine XBA25140AB1/AB2 parts. Conduct a full-range calibration of the display and button functions to meet the original factory standards.

Recommended Replacement Cycle for Elevator COP Display Board XBA25140AB1/AB2

As a core human-machine interaction component bearing long-term use and environmental erosion, the XBA25140AB1/AB2 COP display board has a specified service life. Timely replacement is critical to avoiding display failure or button malfunction, which may lead to passenger confusion, elevator operation delays, or even safety hazards.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, daily button press times ≥ 500, environment temperature -10–60℃, humidity 10%–90%), the recommended replacement cycle for the XBA25140AB1/AB2 elevator COP display board is 5–7 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field data, including component aging tests, button wear analysis, and actual operation feedback.

2. Adjustments for Special Scenarios

Harsh Environments: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or elevators in public places with frequent human contact (resulting in excessive button use), the replacement cycle should be shortened to 3–5 years. Harsh conditions accelerate the aging of internal circuits, wear of buttons, and damage to the display screen, significantly reducing the display board’s reliability.
Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily button press times < 100) and clean, stable environments, the replacement cycle can be appropriately extended to 7–8 years—only if Nanjing Zhuye’s professional inspection confirms that the display clarity, button performance, and circuit stability are all intact.

3. Immediate Replacement Conditions

Replace the XBA25140AB1/AB2 COP display board immediately if any of the following issues occur, regardless of service life:

The display screen has more than 5 dead pixels, or is severely fogged, scratched, or unreadable; the floor number, direction, or status display is incorrect and cannot be corrected by calibration.
Multiple buttons are unresponsive or stuck, and the fault cannot be eliminated through maintenance and lubrication.
The internal circuit is short-circuited or broken (confirmed by professional testing), leading to frequent display board shutdowns or damage to the elevator control system.
The display board’s shell or mounting structure is severely damaged, posing potential safety hazards (e.g., button detachment, circuit exposure).

In conclusion, the Elevator COP Display Board XBA25140AB1/AB2 supplied by Nanjing Zhuye Elevatorparts is a high-quality, model-compatible interaction component tailored for elevator systems. By following the correct usage methods, maintenance schedules, and replacement cycles, elevator maintenance teams can effectively ensure the stable operation of the elevator’s human-machine interaction system, improve passenger ride experience, and minimize failure risks. Choosing Nanjing Zhuye Elevatorparts means you get not only authentic XBA25140AB1/AB2 display boards but also professional technical support, including model selection guidance, installation advice, and prompt after-sales service.
