Description

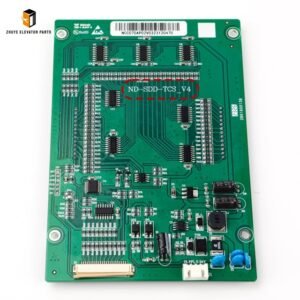

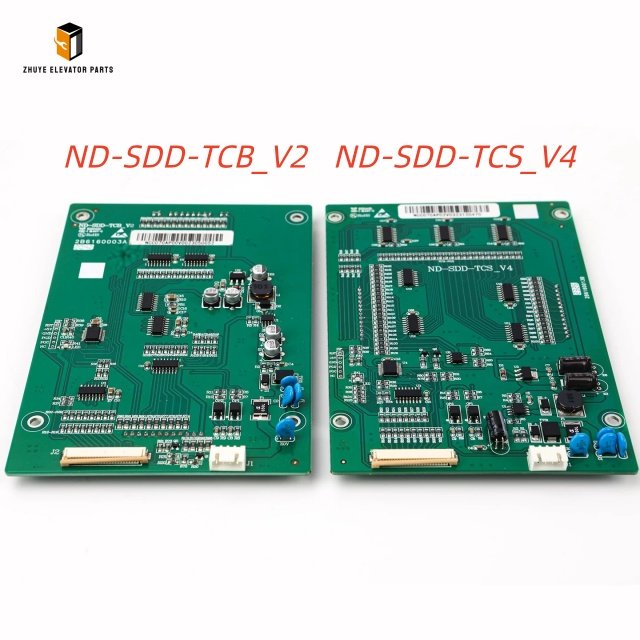

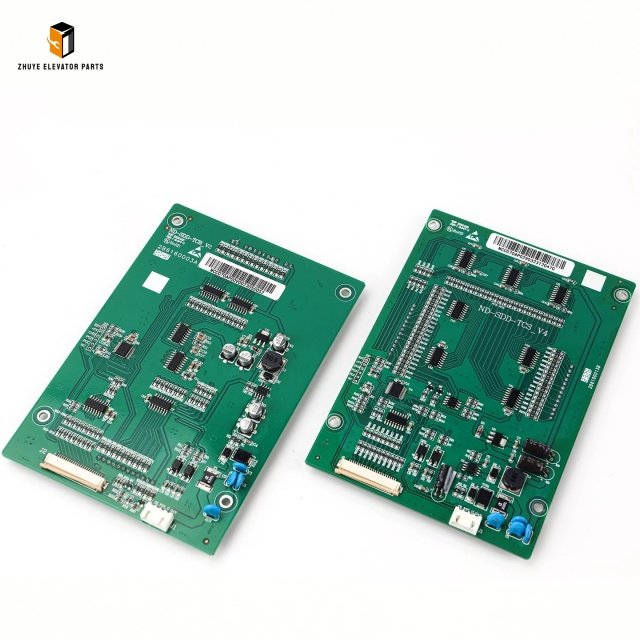

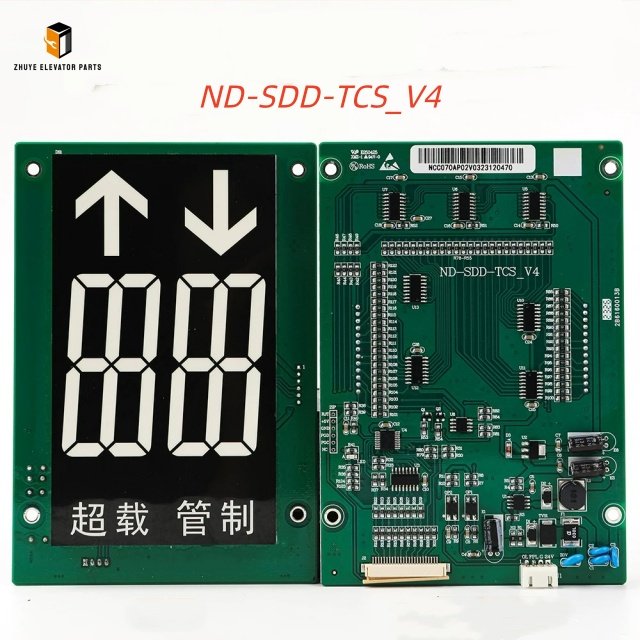

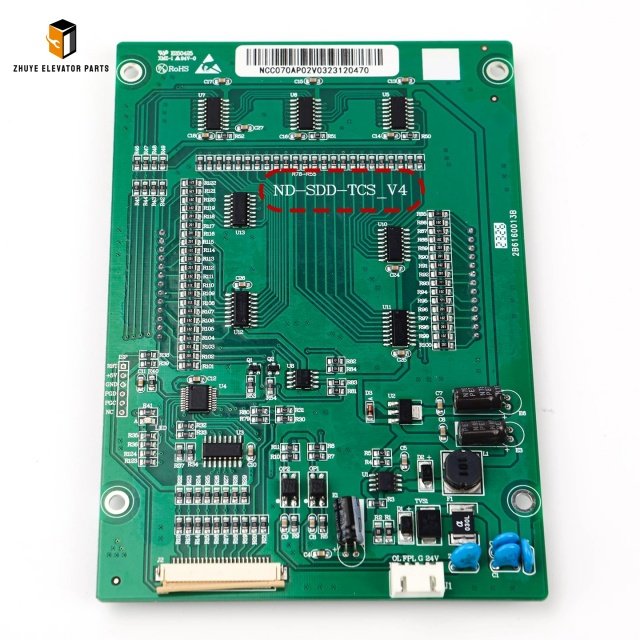

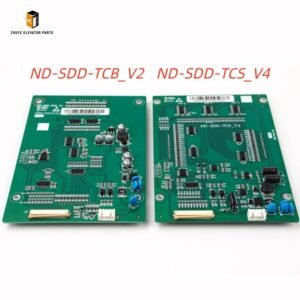

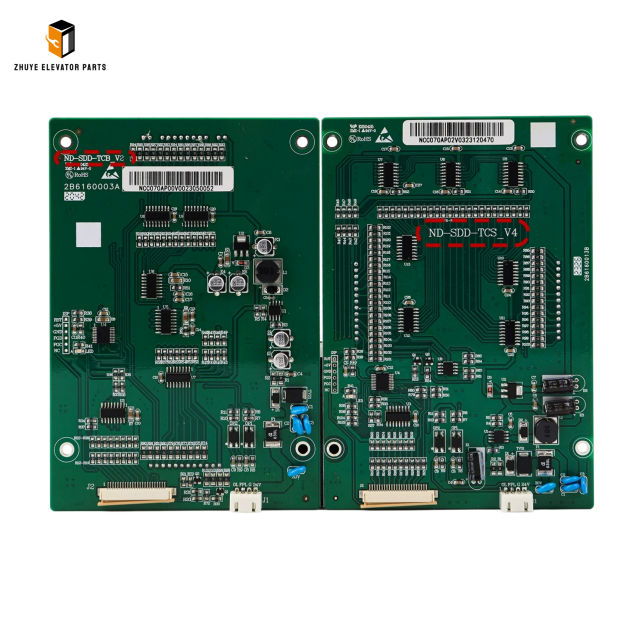

Elevator Cop Display Board ND-SDD-TCB_V2 ND-SDD-TCS_V4
|
Product Name |
Elevator Cop Display Board |
| Model Number | ND-SDD-TCB_V2
ND-SDD-TCS_V4 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|

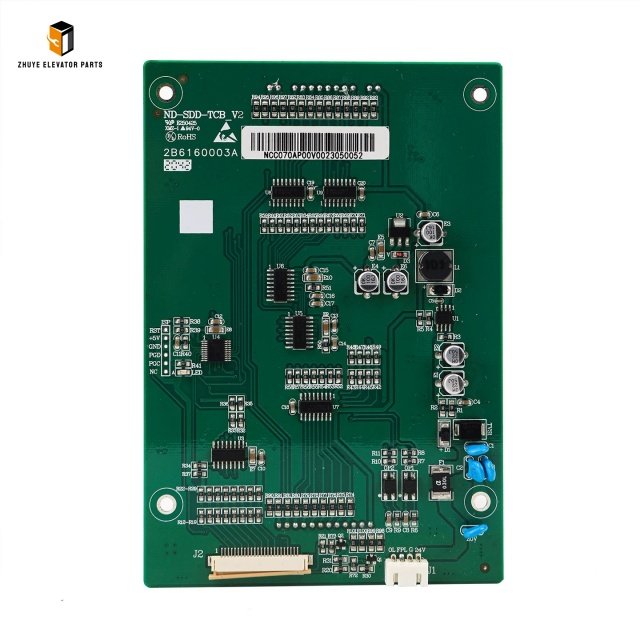

Elevator COP Display Board ND-SDD-TCB_V2 | Compatible with Toshiba Elevators
The Elevator COP Display Board ND-SDD-TCB_V2 is an upgraded in-car display circuit board professionally engineered for full compatibility with Toshiba elevators. Installed inside the car operating panel, this industrial LED display module acts as an intuitive human-machine interaction unit, displaying real-time floor readings, traveling direction indicators, and operational status for cabin passengers. As a core signal receiver for Toshiba internal control systems, the ND-SDD-TCB_V2 stably processes low-voltage data signals transmitted from the main controller to deliver consistent, high-clarity visual feedback. Common failures including flickering digits, dim illumination, black cabin screens, and delayed data synchronization are typically caused by long-term circuit aging and continuous vibration. Manufactured in compliance with Toshiba original electrical parameters and mounting standards, this COP display board is an essential spare part for daily maintenance, cabin refurbishment, and bulk inventory stocking for global elevator service providers.
Built with flame-retardant insulating PCB and durable anti-aging LED beads, the Elevator COP Display Board ND-SDD-TCB_V2 features excellent dustproof, moisture-proof and anti-electromagnetic interference performance. It is specially optimized for enclosed elevator cabins that suffer from constant vibration, temperature changes and static accumulation. All mounting holes, terminal definitions, working voltage and signal protocols strictly match Toshiba factory specifications, enabling true plug-and-play installation without extra programming, wiring modification or technical calibration. Integrated surge protection chips effectively resist current fluctuation and signal interference generated by door operators and car-top components. Suitable for all mainstream Toshiba residential and commercial elevators, this display board maintains uniform brightness and stable display performance under long-duration daily operation.
Standard Installation & Professional Operation Guidelines
All disassembly and installation procedures for the ND-SDD-TCB_V2 display board must be performed by certified Toshiba elevator technicians. Before any maintenance work, completely cut off the cabin control power and independent display power loop, securely lock the isolation switch, and place a clear “Maintenance In Progress” warning sign inside the car. Live-line operation and hot swapping are strictly forbidden to prevent connector burnout and accidental emergency stops.
Carefully remove the decorative cover of the car operating panel using insulated professional tools. Confirm that the old display board model matches ND-SDD-TCB_V2 to ensure complete compatibility. Gently pull out the display assembly, disconnect power lines and signal connectors one by one, and clearly mark every wiring position to avoid misconnection. Remove the fixing screws and safely detach the defective original circuit board.
Thoroughly clean the internal panel slot to eliminate dust and conductive particles that may trigger poor contact or signal instability. Secure the brand-new ND-SDD-TCB_V2 display board in place with anti-loose mounting screws to prevent vibration displacement during elevator travel. Reconnect all cables following the recorded marks and double-check every terminal for firm connection. Restore the decorative panel, reactivate the cabin power supply, and conduct multiple round-trip test runs to verify clear digits, responsive direction prompts and fault-free signal linkage.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of ND-SDD-TCB_V2 depends on cabin environment and daily elevator usage intensity. For dry residential buildings and low-frequency office elevators, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic locations such as shopping malls, medical centers and public transport buildings, or humid environments with poor ventilation, the display board sustains continuous lighting load and moisture erosion. It is recommended to shorten the replacement cycle to 4 to 5 years to avoid unexpected display blackouts.
Immediate replacement is required once abnormal symptoms occur, including uneven brightness, flickering screens, incomplete digit segments, slow signal refresh, oxidized terminals and abnormal board overheating. Timely replacement of ND-SDD-TCB_V2 eliminates hidden electrical risks and maintains stable in-car display performance for all Toshiba elevators.
Reliable Supply Advantages from Our Factory
We supply brand-new factory-tested Elevator COP Display Board ND-SDD-TCB_V2, 100% compatible with the full range of Toshiba elevator models. Each product undergoes 72-hour aging testing and signal compatibility inspection before shipment. We maintain adequate in-stock goods, support fast global logistics, and provide professional remote installation guidance. Our high-precision replacement parts reduce maintenance difficulty, minimize elevator downtime, and help global elevator contractors improve overall service quality.
