Description

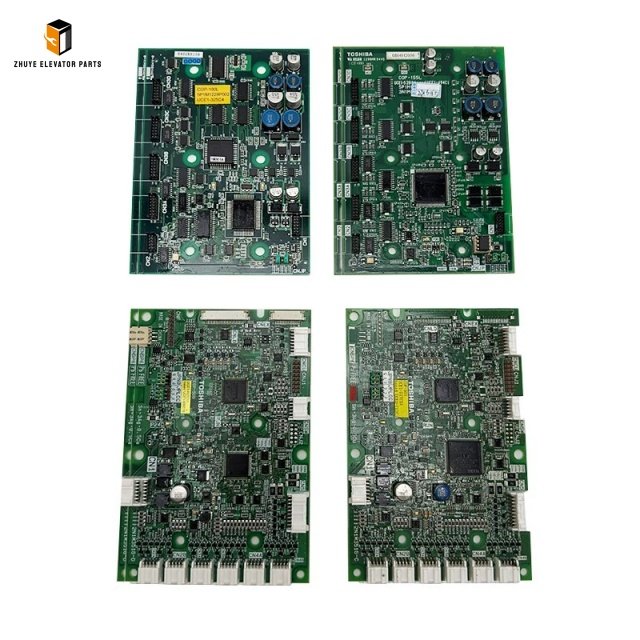

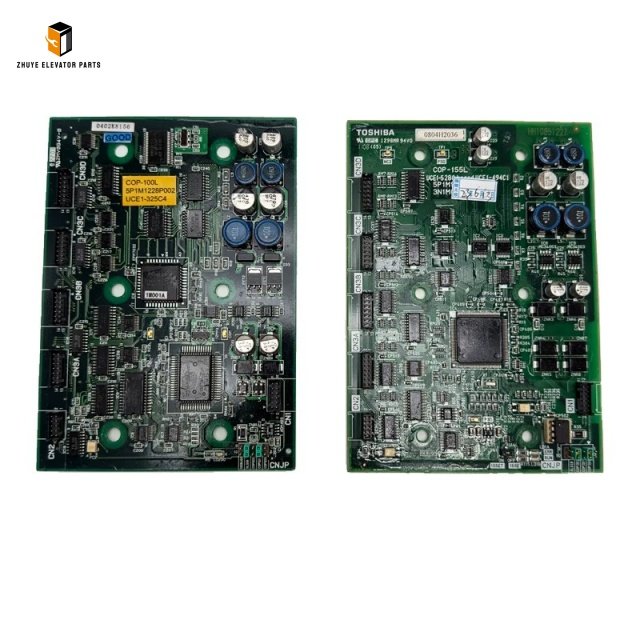

Elevator Cop Display Board COP-100L
|
Product Name |
Elevator Cop Display Board |
| Model Number | COP-100L

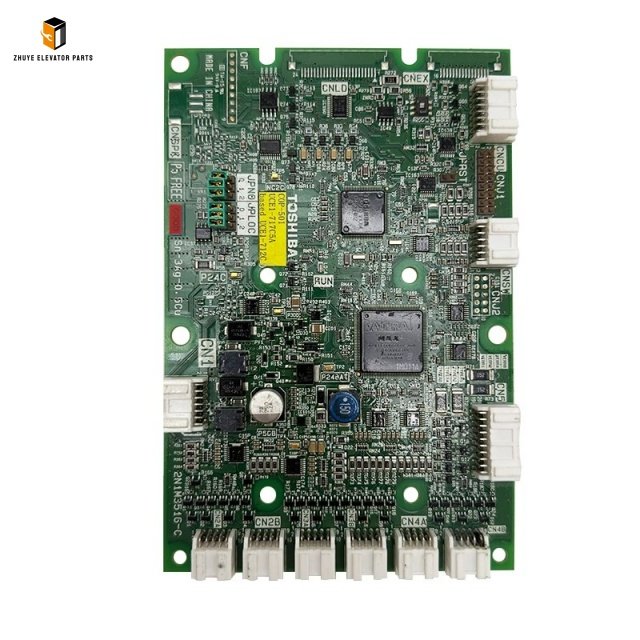

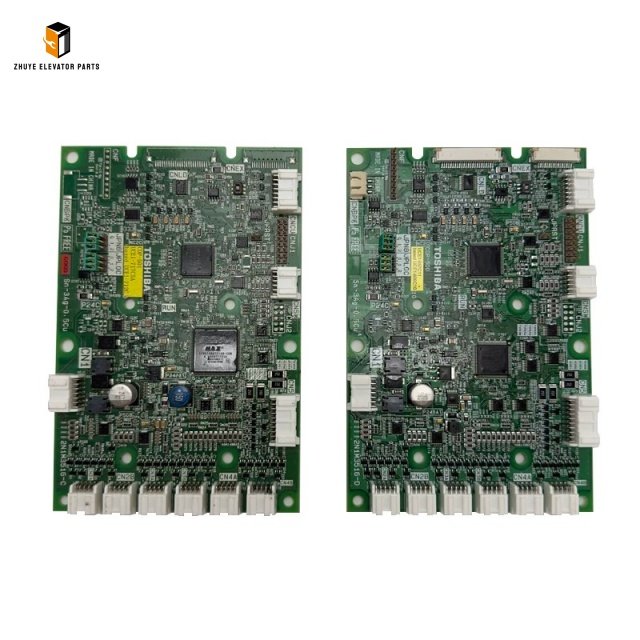

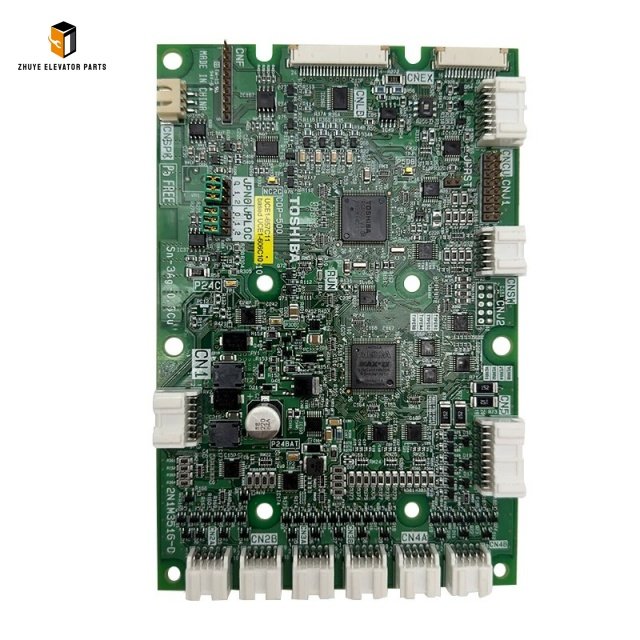

COP-155L COP-500 COP-501 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator COP Display Board COP-100L | Compatible with Toshiba Elevators
The Elevator COP Display Board COP-100L is a dedicated car operating panel display circuit board precisely manufactured for universal compatibility with Toshiba elevators. Installed inside the elevator car control panel, this industrial LED display module serves as an in-cabin human-machine interaction terminal, synchronizing real-time floor numbers, traveling direction arrows, and operational status for passengers inside the lift. As a core signal receiving component for Toshiba car control systems, the COP-100L steadily receives low-voltage data signals from the main controller to deliver stable and clear visual feedback during elevator operation. Common malfunctions such as flickering digits, dim LED brightness, blank cabin screens, and delayed data synchronization often occur due to long-term aging of the original display board. Manufactured in strict accordance with Toshiba original circuit layout and mounting dimensions, this COP display board acts as an essential replacement part for daily maintenance, cabin renovation, and spare part stocking for global elevator service enterprises.
Adopting high-strength flame-retardant PCB and long-life LED lamp beads, the Elevator COP Display Board COP-100L features outstanding dustproof, moisture-proof, and anti-interference properties, perfectly adapting to enclosed cabin environments with continuous vibration and temperature fluctuation. All mounting hole positions, terminal definitions, working voltage, and communication interfaces fully comply with Toshiba factory standards, supporting direct plug-and-play installation without programming, wiring modification, or parameter calibration. Equipped with built-in surge protection and electromagnetic shielding structures, this display board effectively resists signal interference from door motors and car-top electrical components, preventing screen jitter and display lag. It fits all mainstream Toshiba residential and commercial elevators, maintaining uniform brightness and stable display performance for long-duration daily operation.
Standard Installation & Professional Operation Guidelines
All disassembly and installation procedures for the COP-100L car display board must be completed by certified Toshiba elevator technicians. Before maintenance, cut off the cabin control power and dedicated display power loop, lock the isolation switch, and attach a clear “Maintenance In Progress” warning sign inside the car. Live-line disassembly and hot plugging are strictly prohibited to prevent interface burnout and accidental emergency stops.
Gently detach the car operating panel decorative cover with insulated non-slip tools, verify the part number of the old display board to confirm complete compatibility with COP-100L. Slowly take out the display assembly, disconnect signal cables and power connectors one by one, and mark each wire position to avoid misconnection. After recording the wiring sequence, remove the fixing screws and safely extract the defective original board.
Clean the internal panel slot thoroughly to remove dust and tiny conductive particles that may cause poor contact. Place the brand-new COP-100L display board in the fixed installation position and fasten anti-loose screws to prevent vibration displacement during elevator movement. Reconnect all cables strictly following the marked sequence and double-check terminal firmness. Restore the decorative panel, re-energize the cabin power supply, and conduct repeated elevator running tests to confirm clear digits, sensitive direction indication, and stable signal linkage without fault codes.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of COP-100L varies based on cabin air quality and elevator usage frequency. For dry residential communities and quiet office buildings with moderate passenger flow, the recommended standard replacement cycle is 6 to 8 years.
For high-traffic public venues such as shopping malls and hospitals, or humid coastal buildings with corrosive air, the display board endures continuous lighting load and environmental erosion. It is advisable to shorten the replacement cycle to 4 to 5 years to avoid sudden in-car display failure.
Immediate replacement is required once abnormal symptoms appear, including uneven luminous brightness, flickering screens, incomplete digit segments, slow signal response, oxidized connectors, and abnormal board heating. Timely replacement of COP-100L eliminates potential electrical hazards and ensures reliable in-cabin display performance for all Toshiba elevators.
Reliable Supply Advantages from Our Factory
We provide brand-new factory-tested Elevator COP Display Board COP-100L, 100% compatible with all Toshiba elevator models. Every finished product passes 72-hour continuous aging testing and signal compatibility inspection before delivery. We maintain sufficient spot inventory, support fast global cross-border logistics, and offer professional remote installation guidance. Our high-precision matching elevator parts effectively reduce maintenance difficulty, shorten equipment downtime, and help global elevator contractors optimize overall service efficiency.
