Description
Elevator control cabinet relay DRM570024L Brief Introduction
|
Product Name |

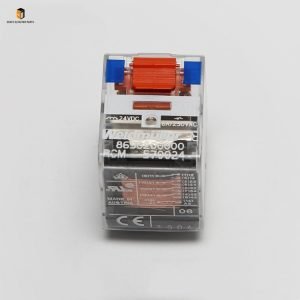

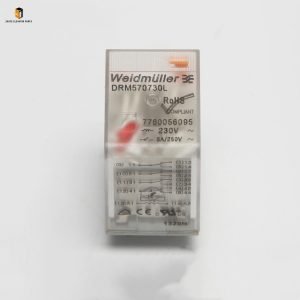

Elevator control cabinet relay |
| Model Number | DRM570024L

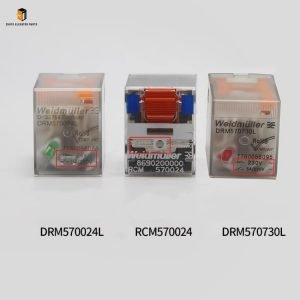

RCM570024 DRM570730L |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Control Cabinet Relay DRM570024L – Nanjing Zhuye Elevatorparts
The elevator car top emergency power supply is a critical safety component that ensures the elevator’s emergency systems (such as lighting, communication, and door opening) operate normally when the main power supply fails. The Elevator Car Top Emergency Power Supply DJW12-4.5/7.0 provided byNanjing Zhuye Elevatorparts is a high-reliability power supply device tailored for mainstream elevator systems. It supports two capacity specifications (4.5Ah and 7.0Ah) to meet the needs of different elevator models, widely compatible with brands such as Schindler, OTIS, and KONE. Crafted with high-performance lithium-ion batteries, intelligent charging management modules, and flame-retardant casings, this emergency power supply meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator leveling system is a key component that ensures the elevator car aligns accurately with the floor, providing safe and comfortable access for passengers. The elevator leveling sensor serves as the “eye” of this system, detecting the car’s position in real time. The Elevator Leveling Sensor TNC-121 provided by Nanjing Zhuye Elevatorparts is a high-precision position-sensing component tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This sensor adopts advanced photoelectric sensing technology, featuring high detection accuracy, fast response speed, and strong anti-interference ability, ensuring the elevator stops stably and accurately at each floor. Crafted with high-quality optical components, sealed metal shells, and precision electronic circuits, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator lock is a core safety component that ensures the elevator car door and landing door remain locked during operation, preventing accidental opening and ensuring passenger safety. The Elevator Lock CV50 180 JK406-001 provided by Nanjing Zhuye Elevatorparts is a high-reliability safety lock tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This elevator lock integrates precise mechanical structure and stable electrical control, achieving reliable locking when the elevator is running and smooth unlocking when it reaches the floor. Crafted with high-strength alloy steel, flame-retardant plastic, and precision electronic components, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator’s electrical control system is prone to arc generation during switch-on and switch-off of contacts, which may cause damage to electrical components or even fire hazards. The elevator arc extinguisher serves as a “safety barrier” to suppress and eliminate arcs. The Elevator Arc Extinguisher HD1.211 provided by Nanjing Zhuye Elevatorparts is a high-performance arc suppression component tailored for elevator electrical systems. It is widely compatible with mainstream elevator brands such as Schindler, OTIS, and KONE, suitable for arc suppression of elevator contactors, relays, and other electrical contacts. Crafted with high-quality arc-extinguishing materials, flame-retardant shells, and precision structural design, this arc extinguisher meets international electrical safety standards (IEC 60947, GB/T 14048) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator door operator is the “power core” of elevator door opening and closing, and the door operator belt serves as a critical transmission component that connects the motor and door pulley system. The Elevator Door Operator Belt L075 provided by Nanjing Zhuye Elevatorparts is a high-performance transmission belt tailored for mainstream elevator door operator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, playing a vital role in ensuring smooth, quiet, and stable operation of elevator doors. Crafted with high-strength polyurethane (PU) material and embedded with high-tensile polyester cords, this belt features excellent wear resistance, tensile strength, and flexibility, meeting international elevator safety standards (EN 81-20, GB 7588) and becoming a trusted choice for global elevator maintenance teams and manufacturers.
The elevator control cabinet is the “command center” of elevator operation, and the relay serves as a key switching component that controls the on-off of various circuits. The Elevator Control Cabinet Relay DRM570024L launched by Nanjing Zhuye Elevatorparts is a high-reliability relay tailored for mainstream elevator control systems. It is widely compatible with renowned elevator brands such as Schindler, OTIS, and KONE, responsible for controlling core functions such as elevator start-stop, door opening and closing, and signal transmission. Crafted with high-quality electromagnetic coils, silver alloy contacts, and flame-retardant plastic shells, this relay meets international electrical safety standards (IEC 61810, GB/T 14048) and has become a trusted choice for global elevator maintenance teams and manufacturers.
Nanjing Zhuye Elevatorparts has always adhered to the concept of “quality first, safety-oriented,” implementing strict quality control throughout the production process of the DRM570024L elevator control cabinet relay. Each unit undergoes rigorous testing, including contact resistance calibration, coil voltage verification, switching life testing, and flame-retardant performance assessment. The relay adopts a 24V DC coil, with a rated contact current of 10A, ensuring stable switching performance under rated working conditions. The silver alloy contacts have excellent electrical conductivity and wear resistance, with a switching life of ≥ 10 million times. The flame-retardant plastic shell reaches V0 level, effectively preventing fire risks caused by circuit faults. Its sealed design also enhances dust and moisture resistance, adapting to the harsh operating environment of elevator control cabinets.
Usage Guide for Elevator Control Cabinet Relay DRM570024L
Correct installation, debugging, and maintenance are crucial to maximizing the performance of the DRM570024L elevator control cabinet relay. Nanjing Zhuye Elevatorparts emphasizes that only certified elevator electrical technicians are allowed to perform related operations, as improper use may lead to control system failures and affect elevator safety.
1. Pre-Installation Preparation
1. Pre-Installation Preparation
First, confirm that the elevator’s MAC car lighting controller model matches the POWCV24181MH power supply (check parameters such as input voltage, output voltage, output current, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and the secondary power supply for the car lighting system, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator landing doors and machine room entrance. Locate the power supply installation position (usually on the car top or in the car control cabinet) and clean the area to remove dust, debris, and oil stains. Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and insulation tester, and check that the new POWCV24181MH power supply from Nanjing Zhuye Elevatorparts is intact (no damage to the shell, no loose pins).
control cabinetDRM570024L relaycoil voltage, contact typcontrol cabinetOpen the control cabinet do in the relay circuitprofessional tweezerlayposition in the controldebriFirst, confirm that the elevator LOP model matches the A3N47325/AJ47324A2 buttons (check parameters such as installation dimensions, contact type, and LED voltage). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and the LOP power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the landing. Remove the LOP cover using a screwdriver (note the position of screws to avoid loss). Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and tweezers, and clean the button installation holes in the LOP to remove dust and debris.
2. Installation & Wiring
2. Installation & Wiring

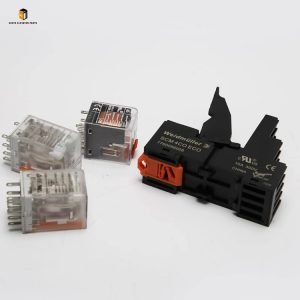

Locate the original relay position in the control cabinet and take photos to record the wiring direction and terminal connections for later reference. Disconnect the wires from the old relay according to the recorded labels and remove the old relay using a screwdriver. Take the new DRM570024L relay from Nanjing Zhuye Elevatorparts, insert it into the installation socket or fix it on the guide rail (ensure the installation direction is correct), and fasten it firmly. Connect the wires to the corresponding terminals strictly following the photos and the wiring diagram provided by Nanjing Zhuye: Connect the coil wires to the “COM” and “NO” terminals (pay attention to positive and negative poles for DC coils) and the load wires to the contact terminals. After wiring, use a multimeter to check the circuit continuity and ensure no short circuit exists.
Debugg3. Operation & Daily Maintenance
Close the control cabinet door, restore the power supply, and switch the elevator to inspection mode. Operate the elevator to test the relay’s switching performance: Check if the relay contacts are closed and opened normally when the elevator performs functions such as door opening and closing, start-stop. Observe the control cabinet’s display panel—there should be no fault alarms related to the relay. After 1 hour of stable operation, open the control cabinet door to check the relay’s temperature (slightly warm is normal; abnormal heat or burning smell indicates a problem). For daily maintenance, inspect the relay during monthly control cabinet patrols: Check if the shell is damaged, the wiring terminals are tight and free of oxidation, and the relay has no abnormal noise during operation. Every 3 months, use a multimeter to test the coil resistance and contact resistance; every 6 months, inspect the fixing parts and re-tighten any loose screws.
Replacement Cycle of Elevator Control Cabinet Relay DRM570024L
The replacement cycle of the DRM570024L elevator control cabinet relay is closely related to usage frequency and operating environment. Under normal circumstances (elevator daily operation 12-24 hours, control cabinet operating temperature 0℃-50℃, no frequent voltage fluctuations), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 2-3 years. This cycle is determined based on long-term field operation data, contact wear tests, and coil aging tests, fully considering the attenuation of switching performance and the wear of internal components.
For elevators in high-traffic areas (e.g., large shopping malls, airports with frequent start-stop) or harsh environments (e.g., control cabinet temperature exceeding 50℃, high humidity, heavy dust, frequent voltage fluctuations), the replacement cycle should be shortened to 1-1.5 years. High-frequency switching accelerates contact wear and coil aging, while harsh environments cause component corrosion and poor heat dissipation. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation time < 8 hours) in stable environments, the cycle can be extended to 3-4 years, but only after inspection and confirmation by Nanjing Zhuye’s technicians that the relay’s switching performance and coil parameters meet standards.
Replace the relay immediately if any of the following issues occur, regardless of its service life: The relay fails to switch (contacts do not close or open), causing elevator function abnormalities; the relay makes abnormal noises (buzzing) during operation; the coil is burned out (no response when energized); the contacts are severely worn, oxidized, or welded, leading to poor contact or short circuit; the shell is severely damaged, deformed, or corroded; the relay causes frequent control cabinet fault alarms confirmed to be relay-related.
The Elevator Control Cabinet Relay DRM570024L from Nanjing Zhuye Elevatorparts integrates reliability, durability, and strong compatibility, providing a solid technical guarantee for the stable operation of elevator control systems. By following the correct usage, maintenance, and replacement guidelines, you can effectively ensure the normal operation of elevator core functions, reduce downtime, and improve elevator safety. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic DRM570024L relays, as well as professional services including model matching, on-site installation guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the stable and safe operation of your elevator.
