Description

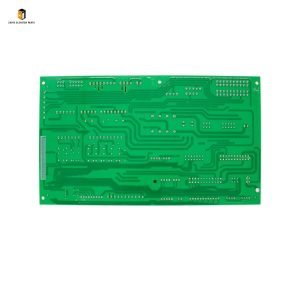

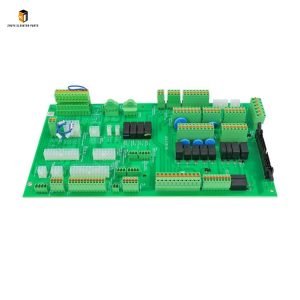

Elevator control cabinet plug-in board VSJ-EIB-01 Brief Introduction
|
Product Name |
Elevator control cabinet plug-in board |
| Model Number | VSJ-EIB-01 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Control Cabinet Plug-in Board VSJ-EIB-01: Core Signal Component from Nanjing Zhuye Elevatorparts
The elevator control cabinet plug-in board is a key signal processing and transmission component in the elevator control system, responsible for integrating, converting, and transmitting signals between the elevator main controller, sensors, and execution components. Its stability directly affects the coordinated operation of the entire elevator system. As a core part of the control cabinet, a high-quality plug-in board can ensure accurate and efficient signal transmission, reducing system failure rates. The Elevator Control Cabinet Plug-in Board VSJ-EIB-01, exclusively supplied by Nanjing Zhuye Elevatorparts, is meticulously designed for modern passenger and freight elevators. Compliant with international standards such as IEC/EN 60947 and GB 7588, this plug-in board integrates stable circuit modules, high-precision signal interfaces, and anti-interference components, making it compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic well-known brands. It is widely used in residential buildings, commercial complexes, airports, and office buildings, providing reliable signal support for elevator control systems.
Nanjing Zhuye Elevatorparts has always adhered to strict quality control standards, and the VSJ-EIB-01 elevator control cabinet plug-in board is a concentrated embodiment of this philosophy. Each plug-in board undergoes multiple rigorous tests before leaving the factory, including signal transmission accuracy testing, anti-electromagnetic interference testing, high-temperature (up to 85℃) and low-temperature (down to -40℃) resistance tests, and vibration resistance tests. The plug-in board adopts a high-quality double-sided PCB substrate with thickened copper foil, which has excellent insulation performance and heat dissipation effect. The key components such as capacitors and integrated circuits are selected from international famous brands, ensuring long-term stable operation under high-load conditions. The surface of the plug-in board is coated with three-proof paint (moisture-proof, anti-corrosion, anti-mold), which can effectively resist the erosion of dust, moisture, and other harsh environmental factors in the control cabinet. In addition, the built-in fault self-diagnosis module can promptly feed back abnormal conditions to the elevator main controller, facilitating maintenance personnel to quickly locate and solve problems.
Usage Guide for Elevator Control Cabinet Plug-in Board VSJ-EIB-01
maintenancVSJ-EIB-01 plug-i caused by improper operation typeplug-icabinet Correct installation, debugging, and daily maintenance are crucial to ensuring the transmission performance and service life of the YVP90-6S door motor pulley. Nanjing Zhuye Elevatorparts strongly recommends that only professional and certified elevator maintenance technicians perform installation and debugging operations, as improper installation may cause belt slipping, abnormal noise, or even door system failure. Before use, it is necessary to confirm that the model, specification, and groove size of the pulley are completely consistent with the elevator door motor and door belt. For detailed installation steps and debugging standards, you can refer to the product manual provided by Nanjing Zhuye Elevatorparts, or contact our technical support team for professional guidance.
1. Pre-Installation Preparation
cabinetanti-static gloves, and wire brushslotcabinetplug-iVSJ-EIB-01 plug-iinterface pins, or loose componenand insulation performance plug-iFirst, cut off the main power supply of the elevator and the power supply of the door motor, lock the power switch, and place a “Maintenance in Progress” warning sign at the elevator entrance and machine room to prevent accidental startup. Operate the elevator car to the middle floor and enter the car top through the safety window to access the door motor device. Prepare professional tools such as screwdrivers, torque wrenches, calipers, pulley pullers, and wire brushes. Clean the door motor shaft and the installation area of the pulley to remove dust, rust, and oil stains, as these impurities may affect the fitting accuracy. Carefully inspect the YVP90-6S pulley for external damage, such as cracks on the pulley body, deformation of the groove, or wear of the inner hole. Check whether the matching door belt is intact and has no obvious wear or aging.
2. Installation & Wiring
Wear anti-static gloves to hold the VSJ-EIB-01 plug-in board, align it with the guide rail of the installation slot inside the control cabinet, and insert it firmly along the guide rail until it is in place. Ensure that the plug-in board is closely attached to the slot contact, and there is no looseness. According to the wiring diagram provided by Nanjing Zhuye Elevatorparts, connect the signal wires, power wires, and communication lines to the corresponding terminals of the plug-in board. The wire stripping length should be controlled at 6-8mm to prevent short circuits caused by wire exposure. Separate power wires and signal wires to avoid electromagnetic interference, and do not bundle them together. After wiring, use cable ties to organize the wires neatly along the wiring trough to avoid wire entanglement or extrusion. Recheck the wiring to ensure that there is no wrong connection or missing connection. Finally, install the control cabinet cover and ensure it is reliably fixed to prevent dust and moisture from entering.
Maintenanc3. Daily Maintenance & Use
After installation, restore the power supply of the elevator and conduct systematic debugging. Use the elevator main controller to check the communication status with the VSJ-EIB-01 plug-in board to ensure that the signal transmission is smooth. Test the signal processing function of the plug-in board: simulate various input signals (such as floor call signals, door opening and closing signals) to check whether the plug-in board can accurately convert and transmit signals, and whether the elevator can execute corresponding commands normally. If there is a signal transmission failure, recheck the wiring or contact Nanjing Zhuye Elevatorparts technical support for troubleshooting. During daily maintenance, maintenance personnel should clean the control cabinet and plug-in board surface with a dry cloth monthly to remove dust; check the tightness of the plug-in board and wiring terminals quarterly; regularly inspect the working status of the plug-in board through the main controller to ensure no abnormal fault codes. It is strictly prohibited to pull out the plug-in board when the power is on, and avoid using water or corrosive cleaning agents to clean the plug-in board.
Replacement Cycle of Elevator Control Cabinet Plug-in Board VSJ-EIB-01
The replacement cycle of the VSJ-EIB-01 elevator control cabinet plug-in board is affected by factors such as usage frequency, operating environment, and maintenance quality. Under normal use conditions—elevator operation time is 12-24 hours a day, the control cabinet is well-ventilated and dry, and regular maintenance is performed—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 6-8 years. This cycle is formulated based on a large number of field test data and GB/T31821—2015 “Technical Conditions for Scrap of Elevator Main Components”, fully considering the aging of electronic components, attenuation of signal transmission accuracy, and degradation of anti-interference performance, which are the main factors affecting the performance of the plug-in board.
For elevators in high-traffic areas such as shopping malls, airports, and subway stations, where the daily operation time exceeds 20 hours and the signal transmission frequency is high, or in harsh environments with high humidity, heavy dust, or large temperature fluctuations in the control cabinet installation area, the replacement cycle should be shortened to 4-6 years. High-frequency operation and harsh environments will accelerate the aging of the plug-in board’s electronic components and increase the risk of faults. For elevators with low usage frequency, such as villa elevators and small office buildings with daily operation time less than 8 hours, if maintained properly and parameters are regularly calibrated, the replacement cycle can be extended to 8-10 years. However, it is necessary to arrange professional technicians from Nanjing Zhuye Elevatorparts to conduct semi-annual inspections on the plug-in board, including testing signal accuracy, circuit stability, and component status, to ensure that it meets the operational requirements.
Regardless of the service life, the VSJ-EIB-01 plug-in board should be replaced immediately if any of the following problems occur: the plug-in board frequently reports communication faults and cannot be repaired after troubleshooting; the elevator has abnormal phenomena such as wrong signal transmission and delayed command execution, which are confirmed to be caused by the plug-in board; the PCB substrate is corroded, burned, or has obvious component damage; the plug-in board cannot be firmly inserted into the slot, leading to poor contact; the key parameters of the plug-in board drift seriously and cannot be calibrated; the plug-in board cannot pass the annual safety inspection. Timely replacement of the plug-in board is essential to ensure the safe and stable operation of the elevator control system.
