Elevator Control Cabinet Cross Flow Fan QF-200 & GYFB-198: Safeguarding Cabinet Temperature and System Stability

The stable operation of an elevator control cabinet is the core guarantee for the entire elevator system, and overheating is one of the most common threats to its internal electrical components. As specialized cooling devices, elevator control cabinet cross flow fans QF-200 and GYFB-198 play an irreplaceable role in dissipating heat from the control cabinet, ensuring that circuit boards, relays, and frequency converters work within a safe temperature range. Nanjing Zhuye Elevatorparts, a trusted supplier of high-performance elevator components, offers original-compatible QF-200 and GYFB-198 cross flow fans, providing reliable thermal management solutions for elevator maintenance and upgrading projects worldwide.

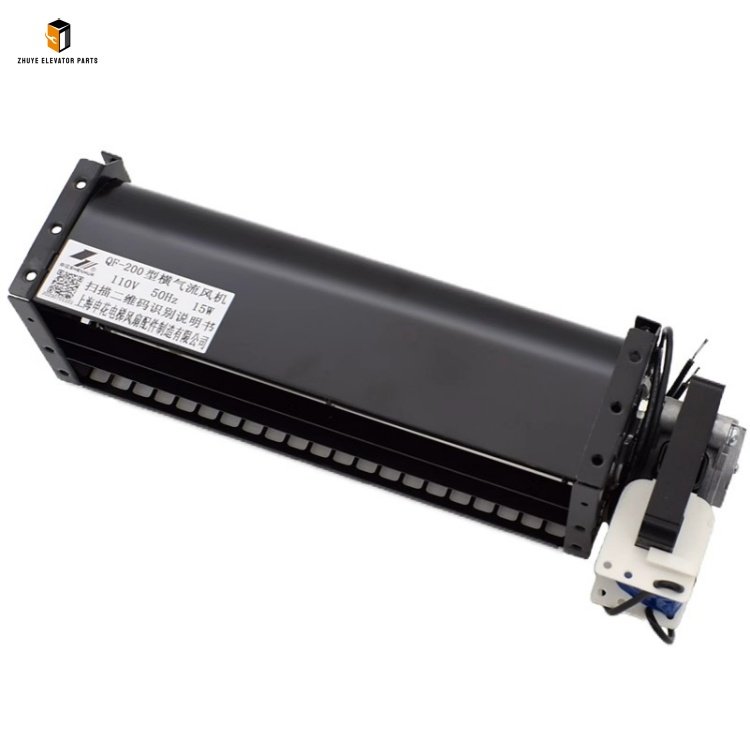

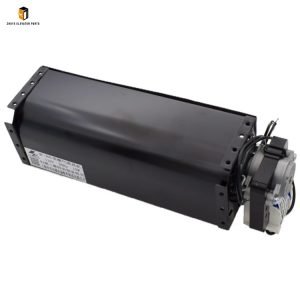

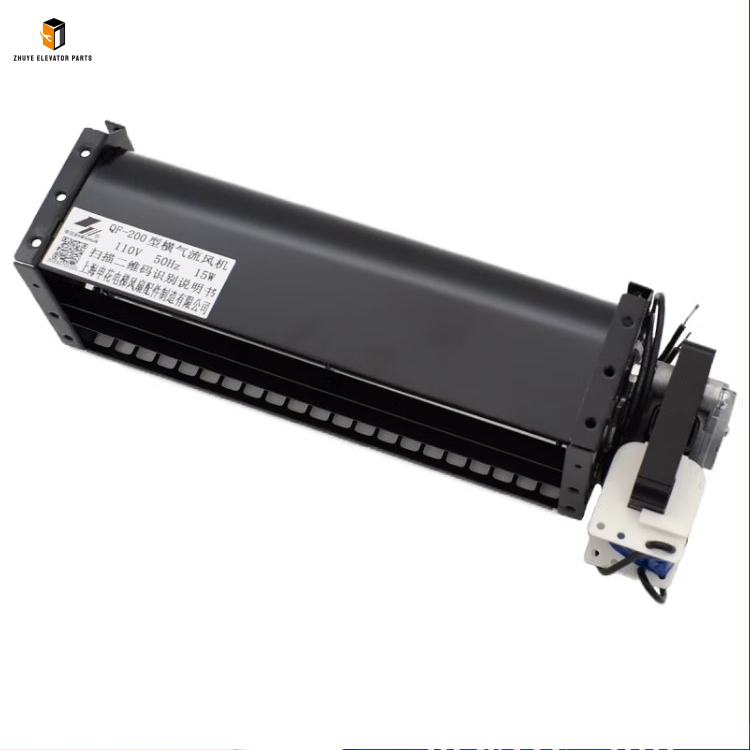

The QF-200 and GYFB-198 cross flow fans are tailored for medium and large-sized elevator control cabinets, featuring a slim structure and strong airflow to achieve uniform cooling without occupying excessive internal space. Correct installation and usage are key to maximizing their cooling efficiency and service life.

For standardized installation and operation methods, first, pre-installation preparation is essential. Maintenance personnel should power off the elevator control cabinet completely and hang a warning sign to avoid electrical hazards. Then, remove the old fan (if replacing) and clean the fan mounting slot in the cabinet, wiping off dust and debris that may block airflow. Align the mounting holes of the QF-200/GYFB-198 fan with the reserved holes in the cabinet, fix it firmly with matching screws, and ensure there is no gap between the fan and the cabinet panel to prevent air leakage. Next, connect the fan’s power cord to the designated terminal in the cabinet, following the wiring diagram strictly to avoid reverse connection, which may burn out the motor. After installation, power on the fan for a test run: check if it operates smoothly without abnormal noise or vibration, and verify that the airflow direction is consistent with the cabinet’s heat dissipation design (usually blowing air out of the cabinet). During daily use, it is critical to clean the fan’s dust filter every month to prevent dust accumulation from reducing airflow and damaging the fan blades. Nanjing Zhuye Elevatorparts reminds users not to disassemble the fan’s internal motor without authorization, as this will void the product’s performance guarantee.

In terms of replacement cycles, the service life of QF-200 and GYFB-198 cross flow fans is affected by factors such as daily operating hours, ambient temperature, and maintenance frequency. Under normal operating conditions (elevators running 8–10 hours a day in a well-ventilated environment), the recommended replacement cycle is 2–3 years. For elevators operating in harsh conditions—such as high-temperature regions, dusty basements, or commercial buildings with 24-hour operation—the replacement cycle should be shortened to 12–18 months, as continuous high-load operation accelerates motor aging and bearing wear.

There are clear warning signs that indicate an urgent need for replacement. If the fan emits loud grinding or buzzing noises during operation, if the airflow is significantly reduced even after cleaning the filter, if the fan stops working intermittently, or if the motor shell feels abnormally hot, immediate replacement is required. Delaying replacement will lead to poor heat dissipation in the control cabinet, causing frequent elevator failures, component burnout, and even system crashes. Nanjing Zhuye Elevatorparts suggests that maintenance teams conduct a functional inspection of the fan every 3 months, including testing its startup response speed and airflow intensity, to ensure it is always in good working condition.

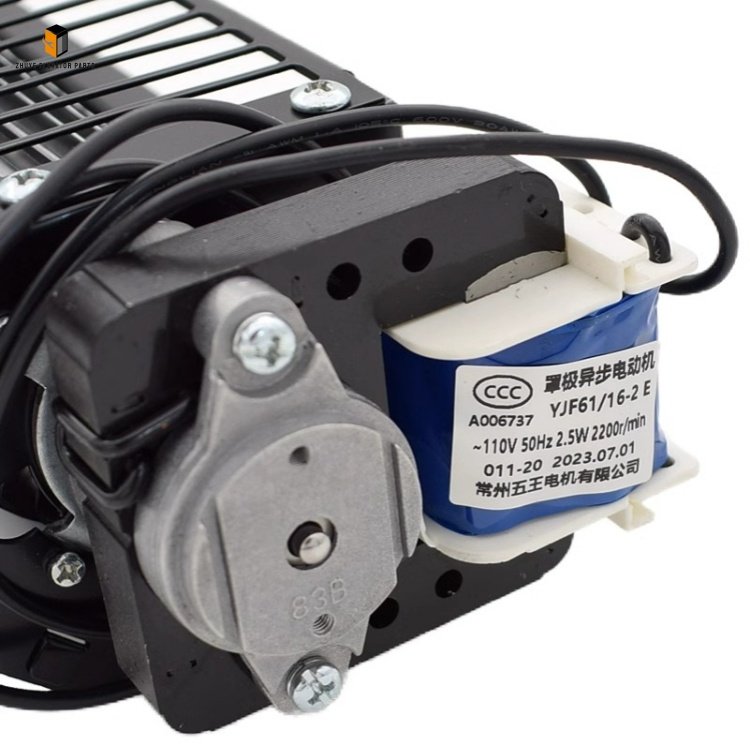

Nanjing Zhuye Elevatorparts’ QF-200 and GYFB-198 cross flow fans are manufactured with high-quality copper motors and durable ABS fan blades, featuring low noise, high airflow efficiency, and strong corrosion resistance. All fans are 100% compatible with mainstream elevator control cabinet models, realizing seamless installation without additional modifications. Each product undergoes strict performance testing before leaving the factory, meeting international safety and energy efficiency standards.

In conclusion, the QF-200 and GYFB-198 cross flow fans are small but crucial components for elevator control cabinet thermal management. Standardized operation and timely replacement are essential to avoid elevator system failures caused by overheating. With superior product quality and professional technical support, Nanjing Zhuye Elevatorparts is dedicated to providing global customers with cost-effective elevator component solutions, ensuring the safe and stable operation of elevators around the clock.
