Description

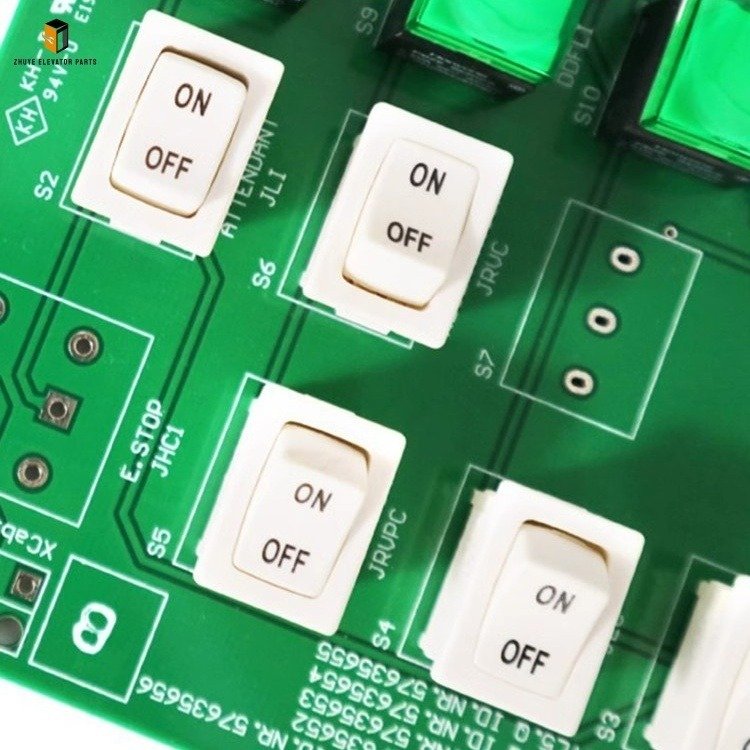

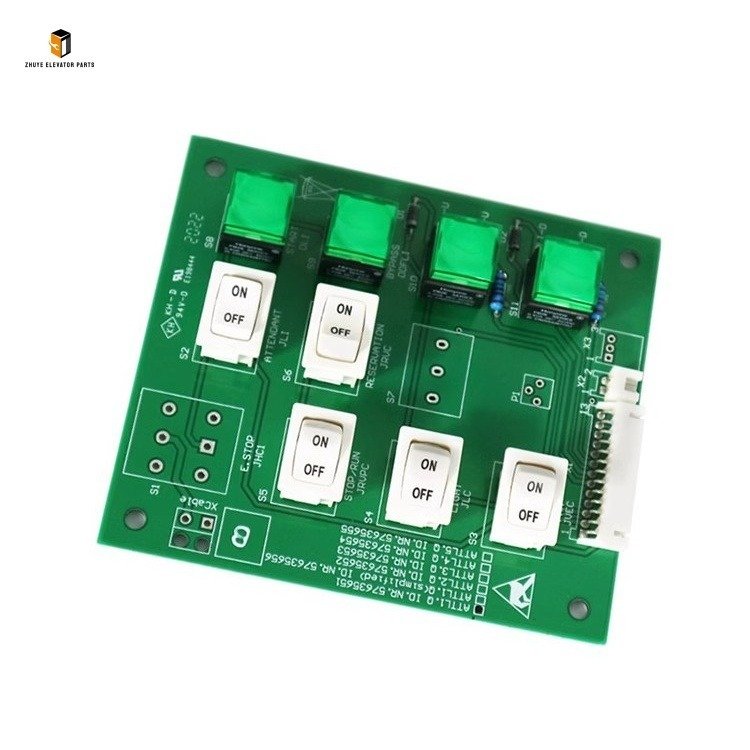

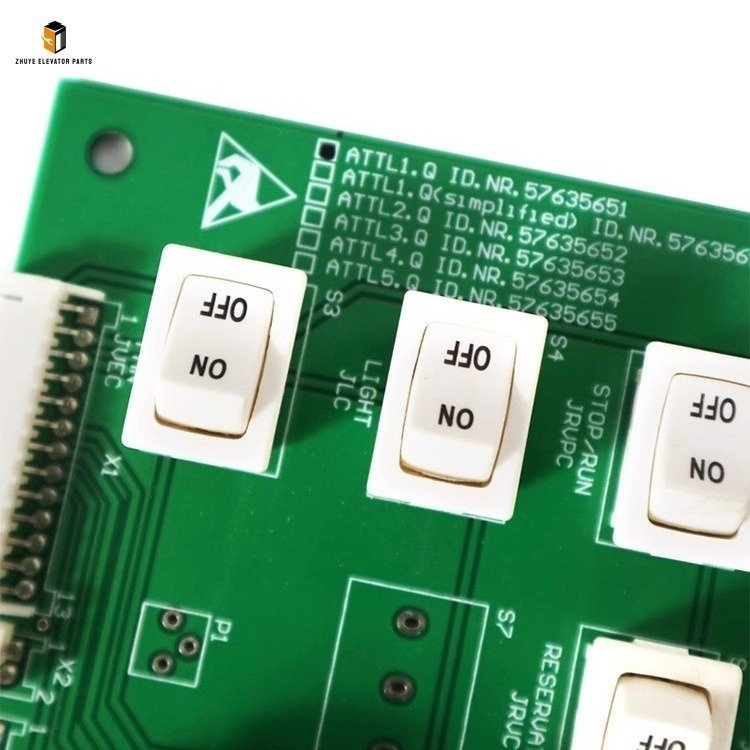

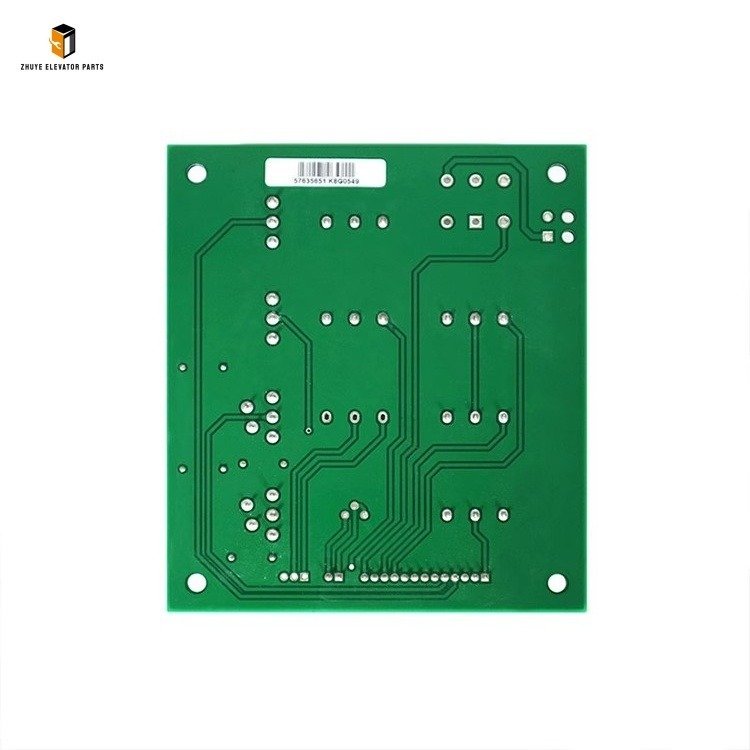

Elevator control box button board ID.NR.57635651 Brief Introduction
|
Product Name |
Elevator control box button board |
| Model Number | ID.NR.57635651 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Control Box Button Board ID.NR.57635651: Core Operation Component from Nanjing Zhuye Elevatorparts
The elevator control box button board serves as the direct interaction interface between passengers and the elevator system, and its stability directly affects the user experience and operational efficiency of the elevator. As a key component in the elevator control system, a high-quality button board can ensure accurate transmission of floor selection and operation commands. The Elevator Control Box Button Board ID.NR.57635651, exclusively supplied by Nanjing Zhuye Elevatorparts, is meticulously designed for modern passenger and freight elevators. Compliant with international standards such as IEC/EN 60947 and GB 7588, this button board integrates sensitive key switches, clear indicator lights, and stable circuit modules, making it compatible with mainstream elevator brands including Schindler, OTIS, KONE, and domestic well-known brands. It is widely used in residential buildings, commercial complexes, office buildings, and other scenarios, providing reliable operation support for elevators.
Nanjing Zhuye Elevatorparts has always adhered to strict quality control standards, and the ID.NR.57635651 elevator control box button board is a concentrated embodiment of this philosophy. Each button board undergoes multiple rigorous tests before leaving the factory, including key sensitivity testing, indicator light brightness detection, high-temperature and low-temperature resistance tests, and anti-electromagnetic interference tests. The button board adopts a high-quality PCB substrate, which has excellent insulation performance and heat dissipation effect. The key switches are made of wear-resistant materials, which can withstand more than 1 million presses without failure, ensuring long-term stable use. The surface of the button board is coated with an anti-corrosion and anti-scratch layer, which can effectively resist the erosion of dust, moisture, and other factors in the elevator car. In addition, the built-in fault self-diagnosis module can promptly feed back abnormal conditions to the elevator main controller, facilitating maintenance personnel to quickly locate and solve problems.
Usage Guide for Elevator Control Box Button Board ID.NR.57635651
Correct installation, debugging, and daily use are crucial to extending the service life of the ID.NR.57635651 button board. Nanjing Zhuye Elevatorparts strongly recommends that only professional and certified elevator maintenance technicians perform installation and debugging operations to avoid operational failures or safety hazards. Before use, it is necessary to confirm that the model, interface, and electrical parameters of the button board are completely consistent with the elevator control system. For detailed installation steps and parameter setting standards, you can refer to the product manual provided by Nanjing Zhuye Elevatorparts, or contact our technical support team for professional guidance.
1. Pre-Installation Preparation
First, cut off the main power supply of the elevator and the power supply of the control box, lock the power switch, and place a “Maintenance in Progress” warning sign at the elevator entrance and machine room to prevent accidental startup. Prepare professional tools such as screwdrivers, multimeters, wire strippers, and anti-static gloves. Clean the installation position inside the elevator control box to remove dust, debris, and oil stains, as these impurities may cause poor contact of the button board. Carefully inspect the ID.NR.57635651 button board for external damage, such as cracks on the PCB substrate, damage to key switches, or loose indicator lights. Use a multimeter to test the circuit continuity of the button board to ensure that there is no open circuit or short circuit.
2. Installation & Wiring
Align the ID.NR.57635651 button board with the mounting holes inside the control box and fix it with screws. Note that the tightening torque should be appropriate to avoid damaging the PCB substrate. According to the wiring diagram provided by Nanjing Zhuye Elevatorparts, connect the button board to the elevator main controller. The power wires, signal wires, and indicator light wires should be connected to the corresponding terminals correctly, and the wire stripping length should be controlled at 6-8mm to prevent short circuits caused by wire exposure. After wiring, use cable ties to organize the wires neatly to avoid wire entanglement or extrusion. Check the wiring again to ensure that there is no wrong connection or missing connection. Finally, install the control box panel and ensure that the buttons on the button board are aligned with the holes on the panel to facilitate passenger operation.
3. Debugging & Daily Use
After installation, restore the power supply of the elevator and conduct debugging. First, test the sensitivity of each button: press each floor selection button, door opening button, and door closing button in sequence to check whether the corresponding indicator lights are on normally and whether the elevator can accurately receive and execute commands. Use the elevator main controller to check the communication status with the button board to ensure that the signal transmission is smooth. If there is a button that is insensitive or the indicator light is not on, it is necessary to recheck the wiring or replace the faulty key switch in time. During daily use, passengers should press the buttons gently to avoid violent pressing, which may damage the internal structure of the buttons. Maintenance personnel should clean the surface of the button board regularly with a dry cloth to remove fingerprints and dust, and avoid using water or corrosive cleaning agents.
Replacement Cycle of Elevator Control Box Button Board ID.NR.57635651
The replacement cycle of the ID.NR.57635651 elevator control box button board is affected by factors such as usage frequency, use environment, and maintenance quality. Under normal use conditions—elevator operation time is 12-24 hours a day, the number of button presses per day is within 2000 times, and the elevator car is kept clean and dry—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 5-7 years. This cycle is formulated based on a large number of field test data, fully considering the wear of key switches, the aging of circuit modules, and the attenuation of indicator light brightness, which are the main factors affecting the performance of the button board.
For elevators in high-traffic areas such as shopping malls, airports, and subway stations, where the number of button presses per day exceeds 5000 times, or in harsh environments with high humidity, heavy dust, or large temperature fluctuations, the replacement cycle should be shortened to 3-5 years. High-frequency use will accelerate the wear of key switches, and harsh environments will easily cause corrosion of the circuit board and short circuits. For elevators with low usage frequency, such as villa elevators and small office buildings with daily operation time less than 8 hours, if the maintenance is proper, the replacement cycle can be extended to 7-10 years. However, it is necessary to arrange professional technicians from Nanjing Zhuye Elevatorparts to conduct annual inspections on the button board, including testing key sensitivity, circuit stability, and indicator light status, to ensure that it meets the operational requirements.
Regardless of the service life, the ID.NR.57635651 button board should be replaced immediately if any of the following problems occur: multiple buttons are insensitive or invalid, and cannot be repaired by replacing the key switches; the indicator lights are dim, flickering, or completely not on, affecting the user’s judgment; the circuit board is corroded, burned, or has obvious damage; the button board frequently fails, leading to abnormal operation of the elevator; the button board cannot pass the annual safety inspection. Timely replacement of the button board is essential to ensure the normal operation of the elevator and the safety of passengers.
The Elevator Control Box Button Board ID.NR.57635651 from Nanjing Zhuye Elevatorparts combines stability, durability, and compatibility, and is an ideal choice for elevator maintenance and renovation. With its strict quality assurance and perfect after-sales service, it has won the trust of a large number of elevator maintenance enterprises and property management companies. By following the correct usage methods and replacement cycles, you can effectively reduce the failure rate of the elevator control system and improve the user experience. Nanjing Zhuye Elevatorparts provides 100% genuine ID.NR.57635651 button boards, and provides professional technical support and after-sales service, including model matching, installation guidance, and fault diagnosis. Choose Nanjing Zhuye Elevatorparts to get reliable elevator components and intimate services.
