Description

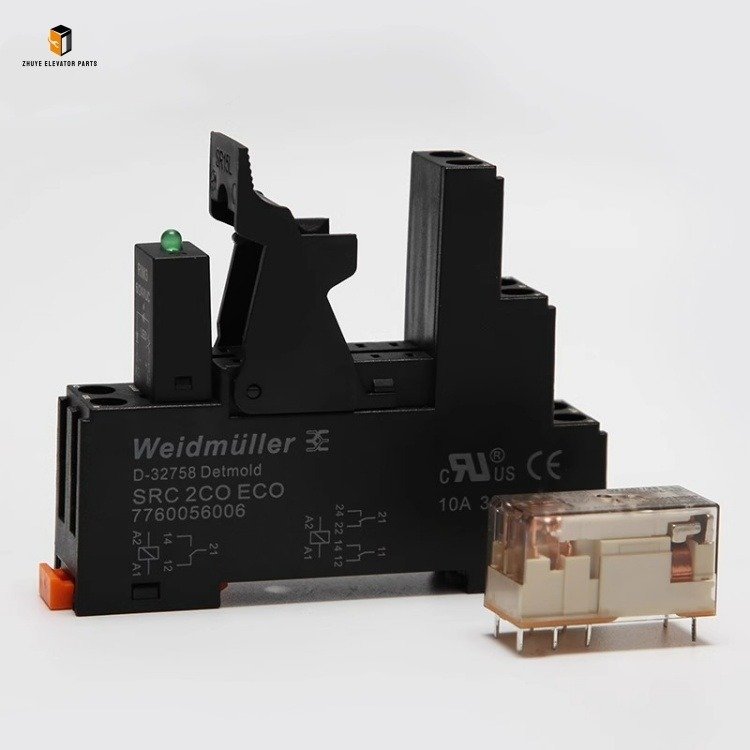

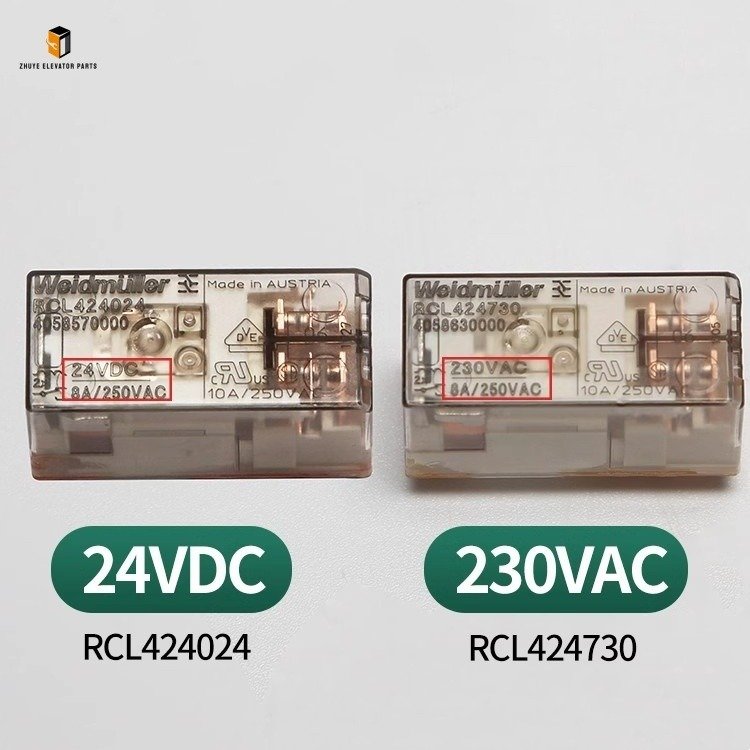

Elevator contactor RCL424024 RCL424730 Brief Introduction
|
Product Name |
Elevator contactor |
| Model Number | RCL424024
RCL424730 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Contactors RCL424024 & RCL424730: Premium Solutions from Nanjing Zhuye Elevatorparts
In the complex ecosystem of elevator systems, the contactor serves as a critical “switching heart,” governing the operation of core components like traction motors and door operators. A reliable contactor is non-negotiable for ensuring elevator safety, stability, and long-term service, as specified in national safety standards for elevator manufacturing and installation. The Elevator Contactors RCL424024 and RCL424730, exclusively supplied by Nanjing Zhuye Elevatorparts, are engineered to meet the rigorous demands of modern elevator applications. Designed with precision and durability in mind, these contactors comply with international standards such as GB/T 14048.4-2020 and IEC/EN 60947, making them compatible with mainstream elevator brands including Schindler, OTIS, and KONE. Ideal for both new elevator installations and maintenance upgrades, these AC contactors feature optimized contact configurations to deliver consistent performance that elevator professionals trust.
Nanjing Zhuye Elevatorparts has always adhered to a strict quality control system, and the RCL424024 and RCL424730 elevator contactors are testaments to this commitment. Each unit undergoes comprehensive testing, including contact resistance measurement, insulation performance assessment, mechanical durability trials, and high-temperature operation tests. These contactors feature high-quality silver alloy contacts that minimize ablation and oxidation—a key advantage as contact damage is a major cause of elevator malfunctions. Their flame-retardant insulating shells meet industry protection standards, providing effective protection against accidental contact, while their operating temperature range of -25℃ to 60℃ enables reliable performance in harsh machine room environments. Equipped with robust electromagnetic systems, RCL424024 and RCL424730 resist voltage fluctuations, ensuring consistent suction and release even in unstable power supply scenarios, which is crucial for preventing unexpected elevator stops.
Usage Guide for Elevator Contactors RCL424024 & RCL424730
Proper installation, wiring, and operation are essential to maximize the performance and lifespan of the RCL424024 and RCL424730 contactors. Nanjing Zhuye Elevatorparts strongly recommends that only certified elevator maintenance technicians perform these procedures to avoid safety hazards or equipment damage—improper operations may lead to contactor failure and even elevator safety incidents. Before starting, verify that the contactor’s voltage rating, current capacity, and contact configuration match the elevator system’s specifications—refer to the product manual provided by Nanjing Zhuye Elevatorparts or consult our technical team for clarification, especially when distinguishing between the two models for specific circuit applications.
1. Pre-Installation Preparation
Begin by cutting off the elevator’s main power supply and control system power, then lock the power switch and place a “Maintenance in Progress” warning sign at the machine room and elevator entrances to prevent accidental activation. Prepare essential tools: a torque wrench, screwdriver, multimeter, wire stripper, and anti-static gloves. Clean the installation area in the electrical control cabinet to remove dust, debris, and oil stains—contaminants are a leading cause of contactor malfunctions. Inspect the contactor (either RCL424024 or RCL424730) for any external damage, loose terminals, or stuck moving parts; do not use the product if any defects are found. Ensure the installation space meets the arc-extinguishing distance requirements specified in the manual.
2. Installation & Wiring
Mount the RCL424024 or RCL424730 contactor on the standard guide rail inside the control cabinet, ensuring a secure fit with no looseness. Follow the principle of left-to-right, top-to-bottom installation for consistent assembly quality. Avoid installing near heat sources or direct sunlight to prevent overheating. Follow the wiring diagram from Nanjing Zhuye Elevatorparts strictly: connect the main circuit wires to the main contacts and the control circuit wires to the coil and auxiliary contact terminals. The recommended tightening torque for screws should comply with specifications to avoid damaging fasteners’ protective layers, and the wire stripping length should be appropriate to avoid short circuits from exposed wire cores. Keep main circuit and control circuit wires neatly separated to reduce electromagnetic interference. After wiring, use a multimeter to check the insulation resistance between terminals to confirm no short circuits exist, and ensure reliable protective grounding continuity.
3. Debugging & Daily Operation
After completing installation and wiring, conduct a no-load power-on test: energize the control circuit to check if the contactor engages and disengages smoothly without abnormal noise. Use a multimeter to verify the on-off status of main and auxiliary contacts under control signals—poor contact can cause voltage drops and elevator emergencies. Proceed to load testing by operating the elevator through start, run, and stop cycles, monitoring the contactor’s performance for stability. During daily operation, regularly inspect the contactor’s surface for discoloration—blackening indicates potential contact ablation that requires timely handling. Avoid overloading the contactor beyond its rated capacity, as this can cause premature failure. Regularly check the contactor’s surface temperature—any abnormal heating (exceeding 60℃) indicates a potential issue that requires immediate attention.
Replacement Cycle of RCL424024 & RCL424730 Contactors
The replacement cycle of RCL424024 and RCL424730 elevator contactors depends on operating frequency, working environment, and load conditions. Under normal operating parameters—elevator runs 12-24 hours daily, contactor switches ≤1000 times/day, and the machine room is dry, ventilated, and maintained at 0℃-40℃—Nanjing Zhuye Elevatorparts recommends a replacement cycle of 3-5 years. This timeline aligns with elevator regular inspection cycles and is based on long-term field data, accounting for contact wear, coil aging, and mechanical component fatigue, which are key factors in relay failure prevention.
For elevators in high-traffic areas (e.g., shopping malls, airports) where the contactor switches ≥2000 times/day, or in harsh environments (high humidity, heavy dust, frequent temperature fluctuations, or unstable voltage), the replacement cycle should be shortened to 1.5-3 years. High-frequency switching accelerates contact ablation and coil aging, while harsh conditions increase the risk of insulation damage and mechanical jamming. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation <8 hours) in stable environments, the cycle can be extended to 5-7 years, but annual professional testing by Nanjing Zhuye’s technicians is mandatory to confirm contact resistance, insulation performance, and mechanical functionality meet safety standards, especially critical for elevators over 15 years old which require annual inspections.
Immediately replace RCL424024 or RCL424730 contactors if any of the following issues occur, regardless of service life: severe contact ablation, welding, or jamming leading to failure to open/close—such defects may cause dangerous elevator malfunctions like unexpected stops; coil burnout, discoloration, or insulation damage causing failure to engage or frequent tripping; mechanical components are stuck, deformed, or damaged resulting in inflexible operation or abnormal noise; the contactor fails annual safety testing; or frequent elevator malfunctions (e.g., failure to start, sudden stops) caused by contactor defects that cannot be resolved through maintenance, similar to hazards posed by relay contact adhesion.
The Elevator Contactors RCL424024 and RCL424730 from Nanjing Zhuye Elevatorparts combine reliability, durability, and compatibility to deliver premium solutions for elevator control systems. By following the recommended usage guidelines and replacement cycles, you can effectively reduce downtime caused by contactor issues and enhance elevator safety. Nanjing Zhuye Elevatorparts provides 100% authentic RCL424024 and RCL424730 contactors, along with professional support including model matching (to distinguish between the two models for optimal application), on-site installation guidance adhering to wiring specifications, and timely after-sales service. Choose Nanjing Zhuye Elevatorparts for peace of mind in elevator component solutions.
