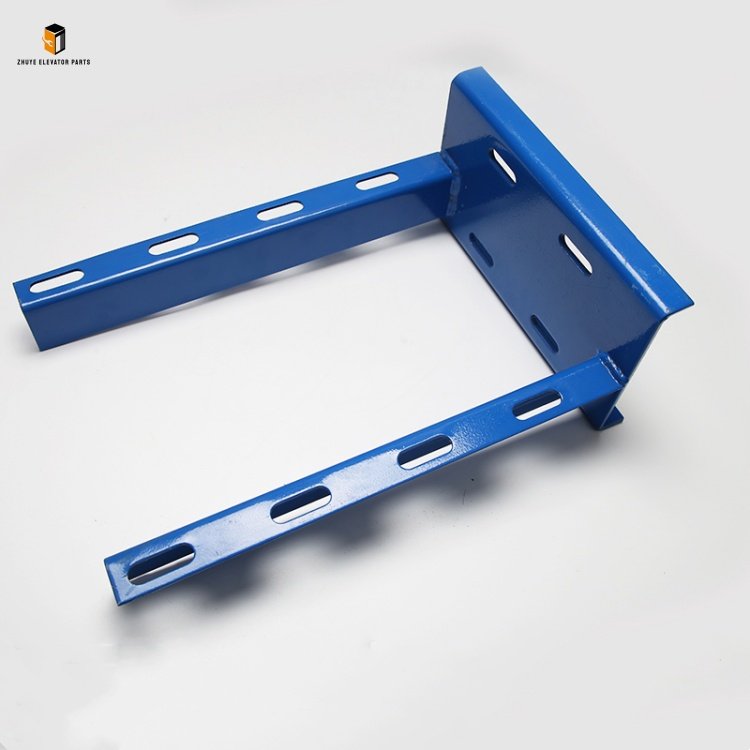

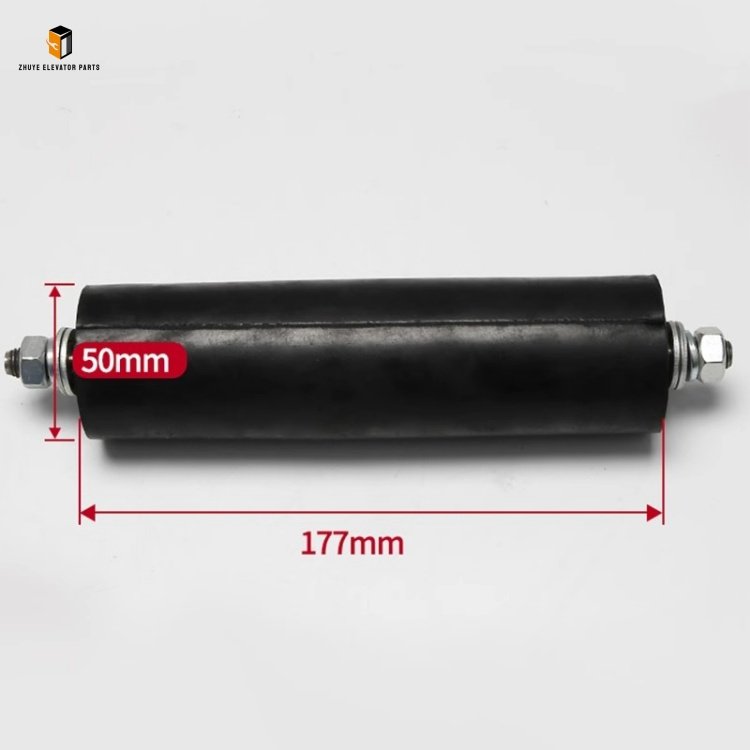

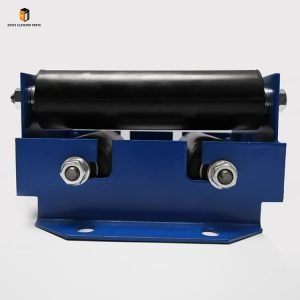

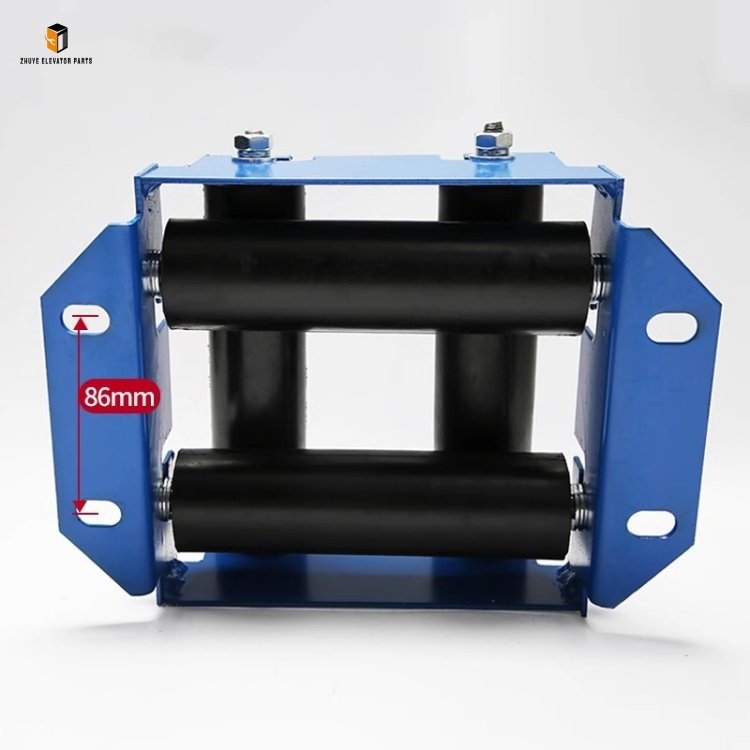

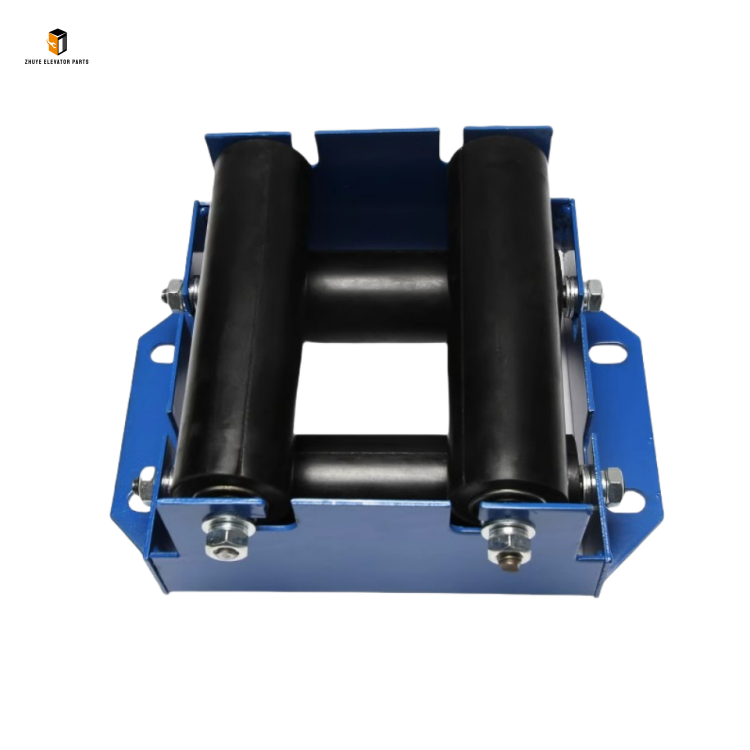

Elevator Compensation Chain Guiding Device 50*177: Stable Chain Operation Core from Nanjing Zhuye Elevatorparts

Step-by-Step Usage Guide for Elevator Compensation Chain Guiding Device 50*177

1. Professional Installation & Adjustment

• Safety Preparation: Cut off the elevator’s main power supply and fix the elevator car to the top floor (or a safe position) using safety clamps to prevent accidental movement. Lower the compensation chain to a proper position (avoiding tension) and clean the mounting area on the shaft wall (usually installed at intervals of 2–3 meters along the chain’s movement path) to remove dust, oil stains, and debris that may affect installation stability.
• Device Installation: Fix the 50*177 Guiding Device to the shaft wall using high-strength expansion bolts provided by Nanjing Zhuye Elevatorparts. Ensure the guiding device is installed vertically (verticality error ≤ 1mm/m) and the guiding groove is aligned with the compensation chain’s movement direction. Adjust the horizontal position of the device to ensure the compensation chain is located in the center of the guiding groove (gap between chain and groove: 1–2mm) to avoid one-sided friction.
• Post-Installation Calibration: After installing all guiding devices (quantity determined by elevator height), restore the elevator car to the normal position and switch the elevator to inspection mode. Operate the car to move up and down the entire shaft at low speed, observing the compensation chain’s movement—ensure it moves smoothly in the guiding groove without lateral swing, collision, or abnormal noise. Check the tightness of the mounting bolts; if there is chain deviation or collision, re-adjust the position of the guiding device immediately.

2. Daily Operation & Routine Inspection

• Daily Visual Inspection: During shaft patrols, check the external condition of the 50*177 Guiding Device. Ensure the galvanized coating is free of peeling, rust, or corrosion; the guiding groove is free of obvious wear, deformation, or debris accumulation; the mounting bolts are tight without looseness. Observe the compensation chain’s movement during elevator operation to check for deviation, swing, or collision with the guiding device.
• Weekly Functional Check: Operate the elevator in inspection mode to move up and down slowly, manually checking the guiding device’s stability—ensure there is no shaking or displacement. Clean the guiding groove with a brush to remove dust, oil stains, or foreign objects that may affect chain movement. For elevators in high-humidity environments, apply a small amount of anti-rust oil to the device’s surface (recommended by Nanjing Zhuye Elevatorparts) to enhance corrosion resistance.
• Monthly Wear Detection: Use a caliper to measure the wear depth of the guiding groove (standard wear depth ≤ 2mm), recording the data for trend analysis. Check the compensation chain for wear marks caused by friction with the guiding device; if any abnormality is found, adjust the device’s position or plan for maintenance. Verify the verticality of the guiding device to ensure it remains aligned with the chain’s movement direction.

3. Regular Maintenance Schedule

• Quarterly Maintenance: Disconnect the power supply and fix the car to a safe position. Remove the guiding device (if necessary) and thoroughly clean the guiding groove, bracket, and mounting surface with a professional cleaner (avoid using corrosive agents). Inspect the device for deformation or cracks; if minor deformation occurs, correct it with professional tools (if severe, replace the device). Reinstall the device and recheck the alignment and gap with the compensation chain.
• Semi-Annual Performance Test: Conduct a comprehensive performance test, including guiding device wear status, chain movement stability, and noise level. Simulate extreme operating conditions (e.g., elevator full-load operation, fast acceleration/deceleration) to verify the device’s ability to limit chain swing. For high-rise elevators (height > 50m) or those in high-traffic areas, increase the test frequency to once every 3 months.
• Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Check the entire compensation chain system, including guiding devices, compensation chains, and fixing components. Replace severely worn or corroded guiding devices with genuine 50*177 units. Recalibrate the position of all guiding devices to ensure consistent alignment with the chain’s movement path, meeting the original factory standards.

Recommended Replacement Cycle for Elevator Compensation Chain Guiding Device 50*177

1. Standard Replacement Cycle

2. Adjustments for Special Scenarios

• Harsh Environments: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or shafts with large temperature fluctuations (e.g., unheated industrial buildings), the replacement cycle should be shortened to 2–3 years. Harsh conditions accelerate galvanized coating peeling, groove wear, and bracket corrosion, significantly reducing the device’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and clean, stable shaft environments, the replacement cycle can be extended to 4–5 years—only if Nanjing Zhuye’s professional inspection confirms the device’s groove wear, structural integrity, and guiding performance are intact.

3. Immediate Replacement Conditions

• The guiding groove has obvious wear (wear depth > 2mm), leading to excessive lateral swing of the compensation chain (swing amplitude > 50mm) and collision with the shaft or guide rails.
• The device is severely deformed, corroded, or cracked, failing to limit the compensation chain’s movement or posing risks of chain jamming.
• The mounting bolts are loose or damaged, causing the guiding device to shake or displace during elevator operation, affecting the chain’s stable movement.
• The device fails to pass the safety performance test, with the compensation chain showing abnormal movement that may threaten the elevator’s operation safety.
