Description

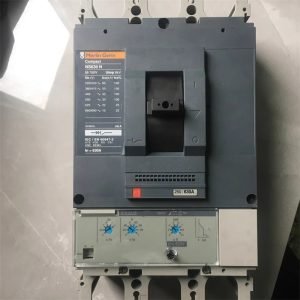

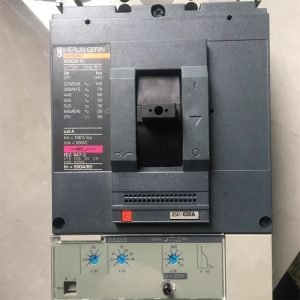

Automatic circuit breaker Merlin Gerin Compact NS400N Brief Introduction

Product Name	Elevator circuit breaker
Model Number	NS400N NS400H NS630N NS630H MT400/630
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton box

Elevator Circuit Breaker Merlin Gerin Compact NS400N: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

The Merlin Gerin Compact NS400N is a high-performance molded case circuit breaker (MCCB) specifically engineered for elevator power distribution and protection systems—widely adopted in commercial high-rises, residential towers, and public transit elevators (compatible with Otis, Mitsubishi, Schindler, and other major brands). As a core safety component, this circuit breaker safeguards elevator main power lines, traction motors, control systems, and auxiliary subsystems from overcurrent, short circuits, and thermal overloads. It features a robust, industry-proven design: thermal-magnetic trip technology (for precise protection across current ranges), interrupting capacity of up to 50kA at 415V AC, modular construction, and IP20 protection rating to withstand harsh elevator machine room environments (temperature fluctuations, dust, vibration). Compliant with global electrical safety standards (IEC 60947-2, UL 489, GB 14048.2), the NS400N ensures reliable power cutoff during faults, preventing electrical fires, equipment damage, and safety hazards for passengers and maintenance personnel. Nanjing Zhuye Elevator Parts, a trusted supplier of authentic industrial electrical components, delivers the Merlin Gerin Compact NS400N that meets the manufacturer’s original specifications, guaranteeing seamless integration, consistent protection performance, and long-term durability.

Proper Usage Methods of Merlin Gerin Compact NS400N Elevator Circuit Breaker

1. Pre-Installation Preparation

Before installing the NS400N, prioritize safety by shutting off the elevator’s main power supply and securing the electrical distribution cabinet with a lockout tag. Inspect the circuit breaker for physical damage—such as cracked housing, damaged operating handles, loose terminal screws, or corrosion on contact points—defects that can compromise interruption performance or cause electrical arcing. Nanjing Zhuye Elevator Parts conducts rigorous quality control checks, so each unit arrives in optimal condition: intact trip mechanisms, pre-calibrated thermal-magnetic components, functional auxiliary contacts, and pre-tested insulation resistance (≥100MΩ at 1000V DC). Additionally, verify compatibility with your elevator’s power system by cross-referencing the technical manual or consulting Nanjing Zhuye’s technical support team—ensure the breaker’s rated current (up to 400A), voltage rating (415V AC), trip curve (typically C-curve for elevator applications), and mounting type (fixed or withdrawable) match your system’s load requirements and cabinet design.

2. Installation & Configuration Steps

Breaker Installation:
- Access the elevator’s electrical distribution cabinet and locate the designated mounting position for the MCCB. Clean the mounting rail or panel surface to remove dust, debris, or rust that could interfere with contact or heat dissipation.
- Align the NS400N with the mounting rail (for DIN rail installation) or bolt holes (for fixed mounting) and secure it firmly. For fixed mounting, use high-strength bolts (torque to 8–10 Nm) to prevent vibration-induced loosening; for DIN rail, ensure the breaker snaps into place with an audible lock. Connect the main power cables (incoming and outgoing) to the top and bottom terminals, respectively—torque terminal screws to the manufacturer’s specification (typically 12–15 Nm for copper cables) to ensure proper electrical contact and prevent overheating.
Trip Setting Configuration:
- Configure the thermal-magnetic trip settings to match the elevator’s load characteristics (performed by certified electricians only):
  - Long-Time Trip (Thermal) Setting: Adjust the dial to match the elevator’s full-load current (e.g., 315A for a 400A-rated breaker powering a 300A traction motor). This setting protects against sustained overcurrents (e.g., motor overloads) by tripping after a time delay proportional to the current magnitude.
  - Short-Time Trip (Magnetic) Setting: Set the instantaneous trip current (typically 5–10x the rated current) to detect and interrupt short circuits within milliseconds, minimizing equipment damage.
  - Auxiliary Contact Wiring: Connect auxiliary contacts (if required) to the elevator’s control system to transmit breaker status signals (e.g., “Tripped,” “Closed”) for remote monitoring.
Functional Testing:
- Conduct comprehensive tests to verify protection performance (by certified electricians/technicians only):
  - Manual Operation Test: Toggle the breaker’s handle between “ON” and “OFF” positions to confirm smooth operation and proper latching.
  - Trip Test: Use a calibrated current injector to simulate overcurrent and short-circuit conditions—ensure the breaker trips within the specified time for each setting, adhering to Merlin Gerin’s performance standards.
  - Insulation Resistance Test: Use a megohmmeter to measure insulation resistance between terminals and ground—ensure it meets or exceeds 100MΩ to prevent leakage current.
- Document test results and trip settings in maintenance records to demonstrate compliance with electrical safety regulations.

3. Routine Usage Maintenance

To preserve the NS400N’s protection performance and extend its lifespan, implement these proactive maintenance practices:

Weekly Visual Inspections: Check for loose terminal screws, damaged handles, or signs of overheating (discoloration of housing or cables). Remove dust from the breaker and surrounding cabinet with compressed air—avoid water or chemical cleaners that can damage insulation or contacts.
Monthly Operational Checks: Manually cycle the breaker once to prevent contact oxidation and ensure smooth latching. Verify auxiliary contact signals (if used) are transmitted correctly to the control system.
Quarterly Terminal & Cable Inspections: Re-torque terminal screws to prevent loosening due to vibration. Inspect power cables for fraying, corrosion, or insulation damage—replace damaged cables with genuine components from Nanjing Zhuye.
Semi-Annual Trip Setting Verification: Use a current clamp meter to measure the elevator’s operating current and confirm trip settings remain aligned with load requirements. Adjust settings if the elevator’s load has changed (e.g., after a motor upgrade).
Annual Full-Scale Testing: Repeat functional and insulation resistance tests to ensure protection performance has not degraded. Clean contact points (by qualified personnel) to remove oxidation that could impair current carrying capacity.

Recommended Replacement Cycle

The service life of the Merlin Gerin Compact NS400N depends on operating conditions (current load, number of trips, environmental factors) and maintenance quality. Based on manufacturer guidelines and Nanjing Zhuye’s technical expertise:

1. Standard Replacement Cycle

Under normal operating conditions (12–18 hours of daily use, stable power supply, regular maintenance), the NS400N should be replaced every 10–12 years. This timeframe accounts for gradual wear of contact points, degradation of thermal trip elements, and aging of insulation materials—ensuring the breaker maintains reliable overcurrent and short-circuit protection, and compliance with evolving safety standards. Proactive replacement reduces the risk of “failure to trip” or “nuisance tripping,” which can lead to elevator downtime or safety hazards.

2. Signs That Require Immediate Replacement

Replace the circuit breaker immediately if you encounter any of the following issues:

Protection Failures: The breaker fails to trip during overcurrent/short-circuit conditions, or trips unexpectedly without faults—indicating a faulty trip mechanism or contact damage.
Mechanical Malfunctions: The handle sticks, fails to latch securely, or cannot be reset after tripping—compromising the breaker’s ability to control power.
Electrical Anomalies: Signs of overheating (discolored terminals, melted insulation), electrical arcing (sparks when switching), or increased contact resistance (measured via infrared thermography) that cannot be resolved by re-torquing terminals.
Physical Damage: Cracked housing, water intrusion, or irreparable terminal damage—posing electrical shock or fire risks.
Regulatory Non-Compliance: The breaker no longer meets updated electrical safety standards (e.g., revised short-circuit interruption requirements) or cannot be calibrated to match the elevator’s load changes.

3. Maintenance to Extend Service Life

To maximize the NS400N’s lifespan and minimize replacement costs:

Stabilize Power Supply: Install surge protectors and voltage regulators upstream of the breaker to shield it from voltage spikes and transients—common causes of contact damage and insulation degradation.
Control Environmental Conditions: Maintain the machine room temperature between -5°C and +40°C (Merlin Gerin’s operating range) and humidity between 20–85% (non-condensing). Ensure the electrical cabinet is sealed to prevent dust, water, or corrosive gases from entering.
Avoid Overloading: Never exceed the breaker’s rated current or short-circuit interruption capacity. Upgrade to a higher-rated model (via Nanjing Zhuye) if the elevator’s load increases (e.g., after adding auxiliary equipment).
Use Genuine Parts Only: For replacements or repairs (e.g., auxiliary contacts), rely exclusively on authentic Merlin Gerin components from Nanjing Zhuye. Counterfeit breakers may use inferior materials, uncalibrated trip mechanisms, or incorrect contact designs—compromising protection performance and violating safety regulations.

Why Choose Nanjing Zhuye Elevator Parts?

When sourcing the Merlin Gerin Compact NS400N Elevator Circuit Breaker, Nanjing Zhuye Elevator Parts offers unmatched advantages for safety-focused professionals:

Authenticity & Universal Compatibility: All NS400N units are genuine Merlin Gerin products, ensuring seamless integration with elevator systems from Otis, Mitsubishi, Schindler, and other major brands, and compliance with global electrical safety standards.
Strict Quality Assurance: Each breaker undergoes rigorous testing—including trip curve verification, insulation resistance measurement, and mechanical operation checks—to guarantee reliable protection performance in critical elevator power systems.
Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance for installation, trip setting configuration, and troubleshooting (e.g., nuisance tripping, failure to trip) for elevator-specific applications.
Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers electrical components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on uninterrupted elevator operation.
Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant circuit protection.

Conclusion

The Merlin Gerin Compact NS400N is a foundational safety component that safeguards elevator power systems from overcurrents and short circuits, directly impacting operational reliability and passenger safety. By following proper installation, configuration, and maintenance practices, adhering to recommended replacement cycles, and partnering with a trusted supplier like Nanjing Zhuye Elevator Parts, you can ensure your elevator’s electrical system remains compliant, protected, and downtime-free. Whether you need a single replacement breaker, technical support for trip setting, or bulk orders for a building fleet, Nanjing Zhuye is committed to delivering premium Merlin Gerin components and tailored professional services. Invest in robust circuit protection—choose Nanjing Zhuye Elevator Parts for your Merlin Gerin Compact NS400N elevator circuit breaker requirements.
