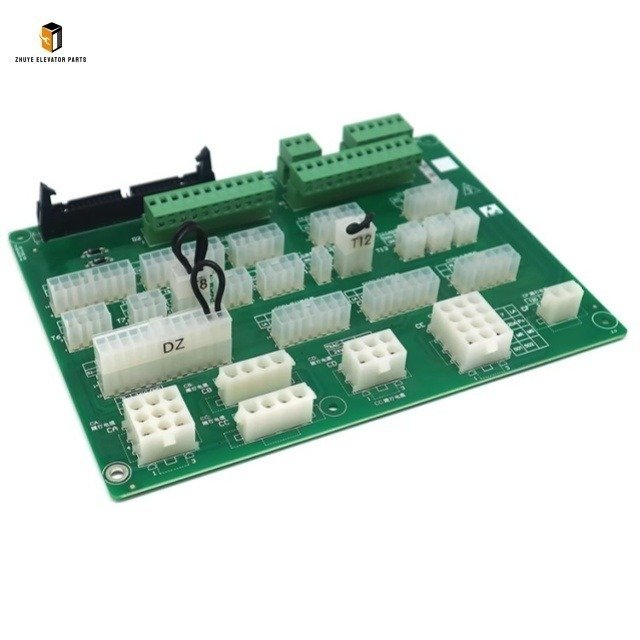

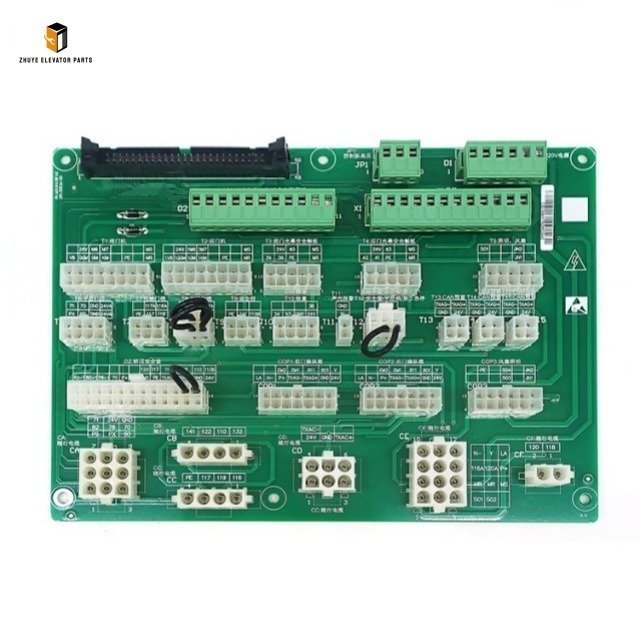

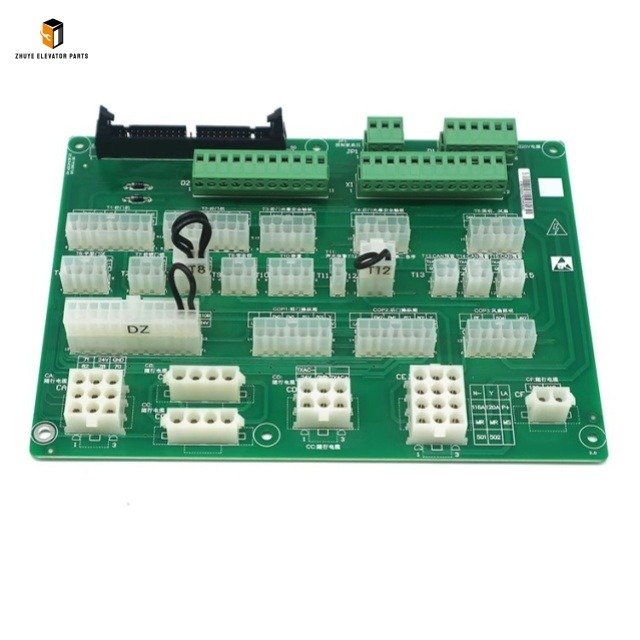

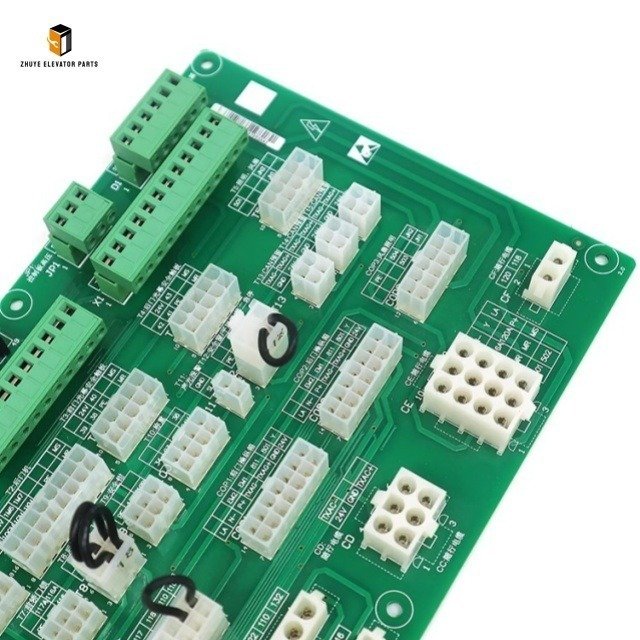

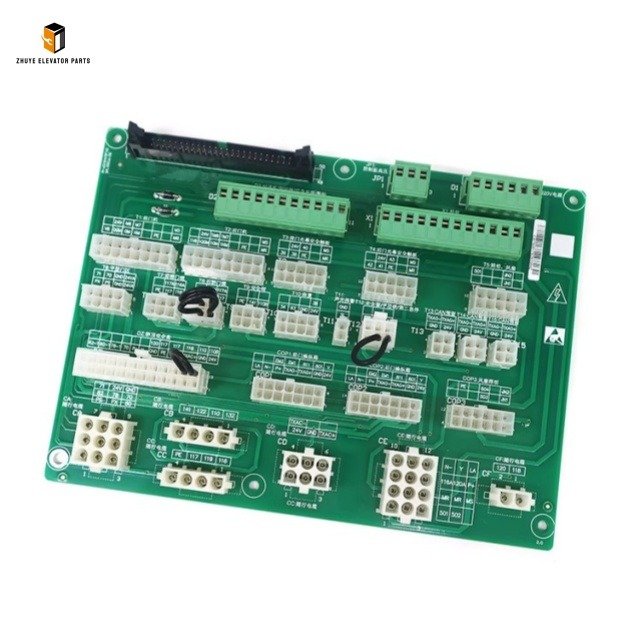

Elevator car top plug-in board SM.09CW/30/37 Brief Introduction
|
Product Name |
Elevator car top plug-in board |
| Model Number | SM.09CW/30
SM.09CW/37 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
SM.09CW/30/37 Elevator Car Top Plug-in Board: Usage Guide & Replacement Cycle
The elevator car top plug-in board is a key communication and control component installed on the car top, responsible for transmitting signals between the car top operation panel, door machine system, and main controller. The SM.09CW/30/37 elevator car top plug-in board, a high-reliability product from Nanjing Zhuye Elevator Parts, is designed with a plug-and-play structure for easy installation and maintenance, while boasting stable signal transmission and strong compatibility with mainstream elevator models. Nanjing Zhuye Elevator Parts, a professional manufacturer and supplier of elevator components, has won wide trust from global maintenance teams and manufacturers by providing rigorously tested, genuine parts like the SM.09CW/30/37 board. This article details the correct usage methods, daily maintenance points, and scientific replacement cycle of this plug-in board to help professionals ensure smooth elevator operation.
Standardized installation and connection are the foundation for the stable operation of the SM.09CW/30/37 plug-in board. Before installation, strictly follow elevator safety protocols: cut off the elevator’s main power supply and place a prominent “No Operation” warning sign to avoid electrical hazards. First, confirm the installation position on the car top—ensure the area is clean, dry, and free of strong vibration and oil pollution. Check the plug-in slot on the car top electrical box for dust or debris, and clean it with a dry cloth if necessary to ensure a tight fit between the board and the slot. Align the SM.09CW/30/37 board with the guide rails of the plug-in slot, and gently insert it until it clicks into place—do not use excessive force to avoid damaging the pins. Next, connect the external signal lines (e.g., door machine control lines, car top inspection lines) to the corresponding terminals on the board, following the wiring diagram provided by Nanjing Zhuye Elevator Parts. Ensure all connections are firm and the wire labels match the terminal markings to prevent signal confusion.
After installation, conduct a comprehensive inspection and functional test. Power on the elevator system and check the board’s power indicator—steady lighting indicates normal power supply. Test the core functions one by one: use the car top inspection panel to operate the elevator up and down, and verify that the board accurately transmits control signals; trigger the door opening and closing commands to ensure the door machine system responds promptly. During the test, pay attention to whether there is signal delay or interruption—if any abnormality occurs, recheck the plug-in connection and wiring. During daily use, avoid collision or vibration of the board during car top maintenance; when disassembling the board for inspection, first cut off the power supply to prevent pin damage or short circuits caused by live operation. Additionally, keep the car top well-ventilated to avoid high temperature and humidity from affecting the board’s components.
Understanding the reasonable replacement cycle of the SM.09CW/30/37 plug-in board is essential to preventing sudden signal transmission failures. As a plug-in electronic component, its service life is affected by factors such as long-term plug-in friction, environmental corrosion, and frequent signal transmission. Based on industry maintenance standards and technical recommendations from Nanjing Zhuye Elevator Parts, the SM.09CW/30/37 plug-in board has a general replacement cycle of 4–5 years under normal operating conditions (8–12 hours of daily operation in residential buildings, office buildings, etc.). For elevators in high-traffic public places such as shopping malls, railway stations, and hospitals—where the car top components are frequently maintained and the board is subjected to more frequent plug-in operations—the replacement cycle should be shortened to 3–4 years. For elevators used for more than 15 years, in line with enhanced inspection requirements for aging equipment, it is recommended to replace the plug-in board every 3 years to ensure compatibility with the aging system.
Even within the recommended replacement cycle, immediate replacement is required if the following abnormal signs appear: 1) Frequent signal loss between the car top and the main controller, leading to unresponsive car top operations or incorrect door machine actions; 2) Loose connection between the board and the slot, resulting in intermittent failure of related functions; 3) Visible damage to the board’s pins (e.g., bending, oxidation) or physical damage to the circuit board (e.g., burnt marks, capacitor swelling); 4) Persistent fault alarms related to car top signal transmission, which cannot be resolved by re-plugging or wiring checks. When replacing, it is crucial to select genuine SM.09CW/30/37 plug-in boards from Nanjing Zhuye Elevator Parts to ensure perfect matching with the elevator’s signal system and avoid safety hazards caused by inferior counterfeit products.
Scientific daily maintenance can effectively extend the service life of the SM.09CW/30/37 plug-in board. In accordance with elevator maintenance specifications, conduct regular inspections: every 3 months, check the tightness of the board’s plug-in connection and the status of the external wiring; every 6 months, power off the elevator and pull out the board to clean the pins with a dry brush or contact cleaner (avoid using corrosive cleaning agents), then reinsert it firmly. Ensure the car top operating environment temperature is maintained between -10℃ and 45℃ with relative humidity below 85%. Nanjing Zhuye Elevator Parts also recommends keeping detailed records of the board’s installation date, maintenance content, and fault handling to comply with regulatory requirements for elevator safety technical file retention.
The SM.09CW/30/37 elevator car top plug-in board is a critical component ensuring smooth signal transmission between elevator car top components and the main controller. By strictly following the correct installation and usage methods and replacing aging or faulty boards with genuine Nanjing Zhuye Elevator Parts products in a timely manner, you can significantly reduce elevator failure rates and improve operational efficiency. For more technical information about the SM.09CW/30/37 plug-in board, or to purchase genuine parts and obtain professional technical support, please contact the professional team of Nanjing Zhuye Elevator Parts.
