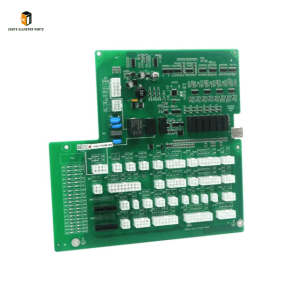

Elevator car top interface board VSJ-TCIB-03 Brief Introduction
|
Product Name |
Elevator car top interface board |
| Model Number | VSJ-TCIB-03
ZH220/12PT-01 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
VSJ-TCIB-03 Elevator Car Top Interface Board: Usage Guide & Replacement Cycle
The elevator car top interface board serves as the “communication hub” of elevator systems, directly affecting the safe and stable operation of elevators. The VSJ-TCIB-03 model, a high-performance option supplied by Nanjing Zhuye Elevator Parts, stands out for its reliability, compatibility, and easy maintenance. Nanjing Zhuye Elevator Parts, established with a focus on providing high-quality elevator components, has become a trusted partner for many elevator maintenance companies and manufacturers by offering genuine, durable parts including the VSJ-TCIB-03 board . This article details the correct usage method, daily maintenance tips, and replacement cycle of the VSJ-TCIB-03 elevator car top interface board to help professionals ensure elevator operational safety.
Proper installation and operation are fundamental to maximizing the performance of the VSJ-TCIB-03 board. Before installation, ensure the elevator is completely powered off to avoid electrical hazards . First, check that the mounting surface on the car top is flat and firm enough to bear the board’s weight; for cement surfaces, use expansion anchors, while wood surfaces can be secured with wood screws . Align the board with the pre-drilled holes and fasten it tightly to prevent vibration-induced loosening during elevator operation. Next, connect the wires according to the terminal diagram: insert the communication cables into the CANH/CANL ports, connect the power supply to the 24V± terminals, and ensure the door signal and leveling sensor wires are correctly attached to the corresponding input ports . It is crucial to use shielded twisted-pair cables for communication lines to reduce signal interference . After wiring, double-check all connections for tightness and confirm no wires are incorrectly connected or short-circuited.
After installation, conduct a functional test following these steps: Power on the elevator system and observe the LED indicators on the VSJ-TCIB-03 board—normal operation is indicated by a 500ms-frequency flash of the program running indicator and a 250ms-frequency flash of the CAN communication indicator . Test core functions such as car top inspection (using the up/down buttons to verify signal transmission), door opening/closing signal feedback, and intercom communication to ensure the board accurately transmits these signals to the main controller. During daily use, avoid tapping or collision with the board, and keep the car top clean and dry to prevent dust, moisture, or oil mist from damaging the board’s components . Additionally, regularly check the cable connections for looseness, especially after strong vibrations or maintenance work.
Understanding the replacement cycle of the VSJ-TCIB-03 board is key to preventing sudden failures. Unlike consumable parts, elevator interface boards have a relatively long service life, but their performance degrades over time due to factors such as electrical aging, environmental corrosion, and frequent signal transmission . Based on industry experience and Nanjing Zhuye Elevator Parts’ recommendations, the VSJ-TCIB-03 board has a general replacement cycle of 4–5 years under normal operating conditions (8–10 hours of daily operation in ordinary buildings) . For elevators in high-traffic areas (e.g., shopping malls, office buildings) or harsh environments (high humidity, large temperature fluctuations), the replacement cycle should be shortened to 3–4 years, as frequent use and environmental stress accelerate component aging.
Certain signs indicate an urgent need for replacement regardless of the cycle: 1) Frequent communication failures (e.g., unresponsive inspection commands, incorrect floor display) that persist after wiring checks; 2) Abnormal LED indicator status (e.g., constant on or off, irregular flashing) accompanied by error codes in the main controller; 3) Physical damage to the board, such as burnt components, swollen capacitors, or corrosion spots on the circuit board; 4) Persistent malfunctions (e.g., unstable door operation, inaccurate leveling) traced to the interface board through troubleshooting. When replacing, always choose genuine VSJ-TCIB-03 boards from Nanjing Zhuye Elevator Parts to ensure compatibility with the elevator system and avoid safety risks from inferior counterfeit parts .
Daily maintenance can extend the service life of the VSJ-TCIB-03 board. Conduct a comprehensive inspection every 6 months: clean dust on the board with a dry brush (avoid using water or chemical cleaners), check for loose or oxidized terminals, and tighten any loose screws . Ensure the car top environment meets the board’s operational requirements—maintain a temperature between -10℃ and 50℃ and a relative humidity below 95% without condensation . Avoid using high-power electrical tools near the board to prevent voltage fluctuations from damaging its circuits . Nanjing Zhuye Elevator Parts also recommends updating the board’s firmware regularly (via the USB programming port) to optimize performance and fix potential bugs .
The VSJ-TCIB-03 elevator car top interface board, as a critical component, requires strict adherence to usage standards and maintenance schedules. By following the installation and operation guidelines provided, and replacing aging or damaged boards with genuine products from Nanjing Zhuye Elevator Parts in a timely manner, you can effectively reduce elevator failure rates and ensure the safety of passengers. For more information on the VSJ-TCIB-03 board or other elevator parts, contact Nanjing Zhuye Elevator Parts’ professional team for technical support and genuine parts supply .
