Description

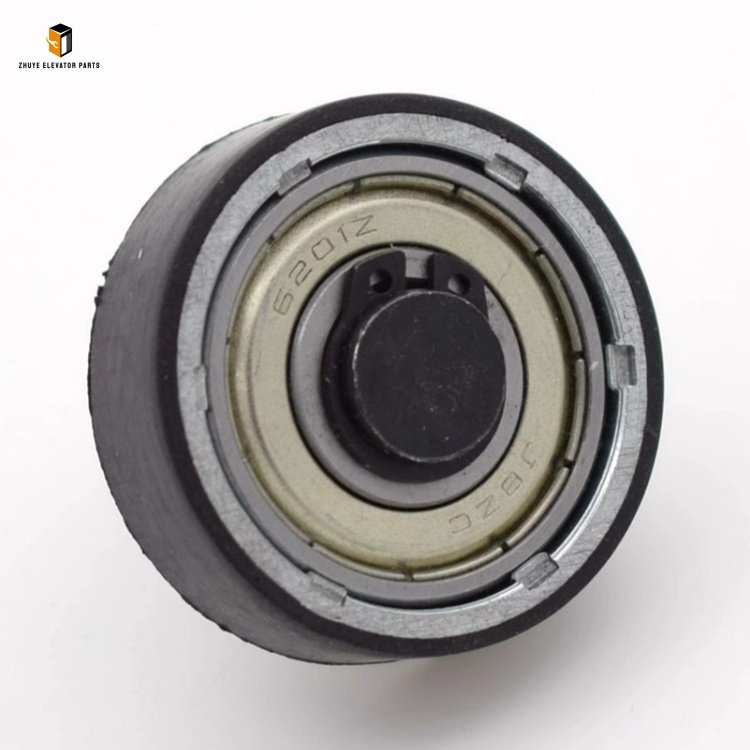

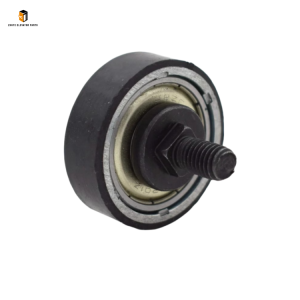

Elevator car door positioning wheel 39*12*6201 M8 Screw Brief Introduction

Product Name	Elevator car door positioning wheel
Model Number	39126201 M8 Screw
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Car Door Positioning Wheel 39126201 (M8 Screw): Precise Guidance Core from Nanjing Zhuye Elevatorparts

The Elevator Car Door Positioning Wheel 39*12*6201 with M8 Screw is a critical guiding and positioning component for elevator car door systems, specifically designed to ensure the car door opens and closes smoothly, stably, and accurately along the door rail. As the “precision roller” of the elevator car door, it bears the lateral force of the door panel during movement, reduces friction between the door and the rail, and prevents deviation or jamming—directly affecting the safety and comfort of elevator operation. The Elevator Car Door Positioning Wheel 39*12*6201 (M8 Screw), exclusively supplied by Nanjing Zhuye Elevatorparts (a professional and trusted distributor of high-quality elevator components), fully complies with international elevator safety standards (EN 81-20, GB 7588) and is perfectly compatible with elevator models matching the 39*12*6201 dimension and M8 screw specification. Featuring high wear resistance, stable rotation performance, and precise dimension matching, this positioning wheel provides reliable operational guarantees for elevators in residential buildings, commercial complexes, office towers, hospitals, and other buildings worldwide.

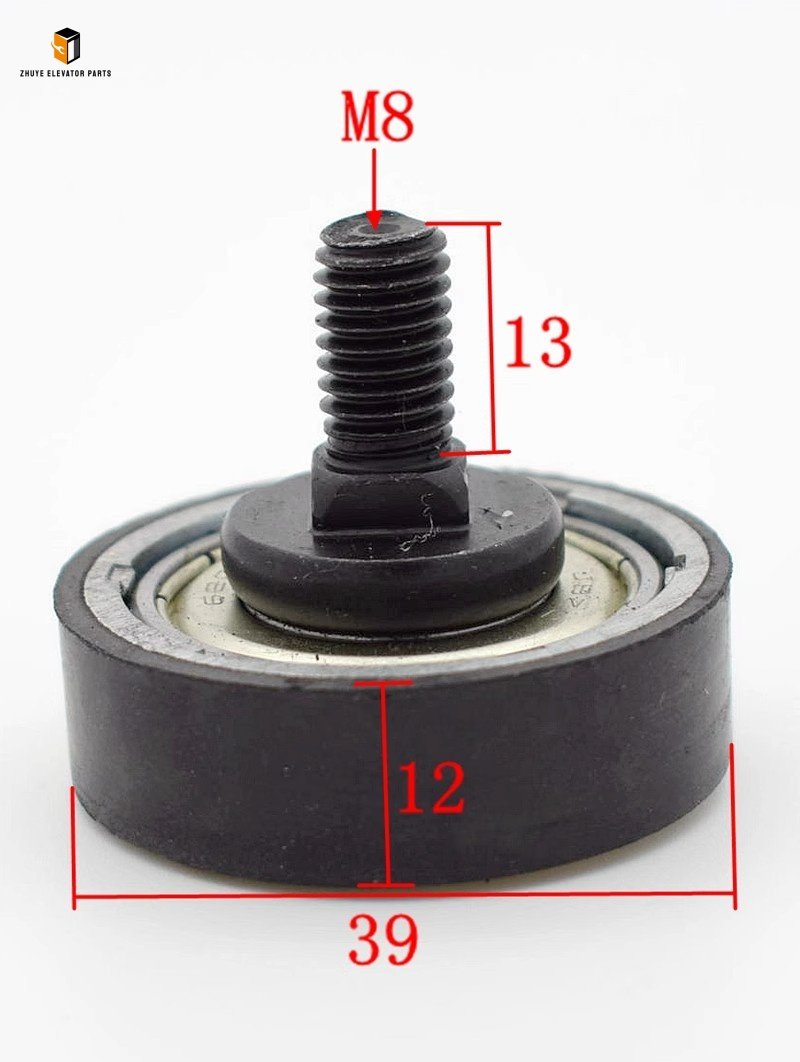

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “safety first, quality-oriented” and implements strict quality control over the Elevator Car Door Positioning Wheel 39*12*6201 (M8 Screw). Each positioning wheel undergoes a multi-stage pre-delivery inspection, including wear resistance testing, rotation smoothness verification, dimension accuracy detection, and load-bearing capacity trials. The product adopts high-quality bearing steel (GCr15) for the wheel body, a precision 6201 bearing inside, and a high-strength M8 fixing screw: the bearing steel wheel body has a hardness of HRC 58-62, ensuring excellent wear resistance and long service life; the built-in 6201 bearing enables smooth rotation with a friction coefficient ≤ 0.005, reducing noise during door operation; the M8 high-strength carbon steel screw ensures firm fixation, resisting vibration and loosening. Its dimensions (39mm outer diameter, 12mm width, matching 6201 bearing) are precisely machined, ensuring seamless fit with the car door rail and mounting bracket.

Step-by-Step Usage Guide for Elevator Car Door Positioning Wheel 39126201 (M8 Screw)

To ensure the reliable operation of the elevator car door system and extend the service life of the 39*12*6201 positioning wheel, follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for installation, operation, and maintenance:

1. Professional Installation & Commissioning

Installation must be performed by certified technicians familiar with elevator door systems. Prior to installation, confirm the compatibility of the positioning wheel (39*12*6201) and M8 screw with the target elevator’s car door model using the detailed compatibility manual provided by Nanjing Zhuye Elevatorparts. The steps are as follows:

Safety Preparation: Cut off the elevator’s main power supply and the power supply of the door system, and hang a “Maintenance in Progress—Do Not Power On” sign at the power switch. Fix the elevator car to a safe position using a safety clamp. Open the car door maintenance cover and clean the door rail and positioning wheel mounting area to remove dust, oil stains, and debris that may affect installation and rotation.
Positioning Wheel Installation: Align the 39*12*6201 positioning wheel with the mounting bracket on the car door. Pass the M8 screw (provided by Nanjing Zhuye Elevatorparts) through the wheel’s inner bearing and fix it to the bracket. Tighten the screw with a torque wrench to a torque of 12–15 N·m—ensure firm fixation without over-tightening (to avoid damaging the bearing). Install all required positioning wheels (usually 2–4 per car door) symmetrically to ensure balanced force on the door panel.
Calibration & Adjustment: After installation, manually push the car door to open and close repeatedly to check if the positioning wheels rotate smoothly (no jamming or abnormal noise). Use a feeler gauge to detect the gap between the wheel and the door rail (standard gap: 0.2–0.5mm). If the door is deviated or the wheel rotates unsmoothly, adjust the mounting bracket’s position to ensure the wheels are evenly in contact with the rail.
Post-Installation Testing: Restore the power supply of the door system and elevator. Conduct comprehensive functional tests: operate the car door to open and close automatically at normal speed, check the rotation status of the positioning wheels (no slipping or stagnation); test the door’s opening/closing accuracy (no deviation from the door sill); measure the operation noise (normal value ≤ 50dB). If there is abnormal noise, jamming, or deviation, recheck the installation torque and gap immediately.

2. Daily Operation & Routine Inspection

Regular inspections are crucial to early detection of positioning wheel faults and ensuring the safety of the car door system. Maintenance personnel should incorporate the following checks into their daily patrols:

Daily Visual Inspection: During elevator maintenance, check the external state of the 39*12*6201 positioning wheels through the car door maintenance cover. Ensure the wheel body is free of cracks, deformation, or severe wear (wear depth ≤ 1mm); the M8 screw is tight with no looseness; the wheel’s rotation is smooth when pushed manually.
Weekly Functional Check: Operate the car door to open and close multiple times, listen for abnormal noise (such as friction or creaking) from the positioning wheel area. Check if the car door opens and closes in place (no overshoot or incomplete closure). If there is abnormal noise or door deviation, inspect the wheel’s wear and rail contact status immediately.
Monthly Parameter Monitoring: Use a caliper to measure the outer diameter of the positioning wheel (original diameter: 39mm; replace if wear causes diameter reduction of more than 2mm). Apply a small amount of special bearing lubricant (provided by Nanjing Zhuye Elevatorparts) to the wheel’s rotation surface to reduce wear. Check the M8 screw for rust or thread damage—replace the screw if necessary.

3. Regular Maintenance Schedule

Systematic maintenance can effectively extend the service life of the Elevator Car Door Positioning Wheel 39*12*6201 (M8 Screw). Follow Nanjing Zhuye Elevatorparts’ recommended maintenance plan:

Quarterly Maintenance: Disconnect the power supply, remove the positioning wheels (by unscrewing the M8 screws), and clean the wheel body, bearing, and mounting bracket with a professional degreaser. Inspect the bearing for loose or damaged balls—replace the positioning wheel if the bearing fails. Reinstall the wheels and retighten the M8 screws according to the specified torque.
Semi-Annual Performance Test: Conduct a comprehensive performance test, including rotation smoothness, wear degree, and load-bearing capacity. Use a professional rotation tester to detect the wheel’s rotation resistance (normal value ≤ 5N). For elevators in high-traffic areas (e.g., shopping malls, airports) or harsh environments (high humidity, dust), increase the test frequency and check the door rail for deformation that may accelerate wheel wear.
Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Replace all positioning wheels that are approaching the wear limit with genuine 39*12*6201 models. Inspect the car door rail for wear or deformation and repair it if necessary. Conduct a full-range calibration of the car door system to ensure the positioning wheels and rail operate in sync.

Recommended Replacement Cycle for Elevator Car Door Positioning Wheel 39126201 (M8 Screw)

As a core guiding component bearing long-term friction and lateral force, the 39*12*6201 positioning wheel has a specified service life. Timely replacement is critical to avoiding wheel failure, which may lead to car door jamming, deviation, or even sudden stop during operation—endangering passenger safety and causing elevator downtime.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, daily car door opening/closing times ≥ 1000, environment temperature -10–60℃, humidity 10%–90%), the recommended replacement cycle for the Elevator Car Door Positioning Wheel 39*12*6201 (M8 Screw) is 1.5–2 years. The M8 fixing screw should be replaced together with the positioning wheel to ensure fixation reliability. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field data, including material wear tests, bearing performance degradation analysis, and actual operation feedback.

2. Adjustments for Special Scenarios

Harsh Environments: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or elevators with frequent door operation (more than 2000 times per day), the replacement cycle should be shortened to 1–1.5 years. Harsh conditions accelerate the wear of the wheel body, corrosion of the bearing, and rust of the M8 screw, significantly reducing the positioning wheel’s reliability.
Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily car door opening/closing times < 300) and clean, stable environments, the replacement cycle can be extended to 2–3 years—only if Nanjing Zhuye’s professional inspection confirms that the wheel’s wear degree, rotation smoothness, and bearing performance are all intact.

3. Immediate Replacement Conditions

Replace the 39*12*6201 positioning wheel (and M8 screw) immediately if any of the following issues occur, regardless of service life:

The wheel body is severely worn (outer diameter reduced by more than 2mm), cracked, or deformed; the bearing is stuck or makes abnormal noise, and the fault cannot be eliminated through lubrication.
The M8 screw is rusted, stripped, or damaged, leading to loose fixation of the positioning wheel (risk of wheel detachment).
The positioning wheel causes the car door to jam, deviate, or fail to open/close in place, and the fault cannot be corrected by adjustment.
The wheel’s rotation resistance exceeds 15N (confirmed by professional testing), affecting the normal operation of the car door system.

In conclusion, the Elevator Car Door Positioning Wheel 39*12*6201 (M8 Screw) supplied by Nanjing Zhuye Elevatorparts is a high-quality, precision-machined guiding component tailored for elevator car door systems. By following the correct usage methods, maintenance schedules, and replacement cycles, elevator maintenance teams can effectively ensure the stable and safe operation of the car door system, improve passenger ride comfort, and minimize failure risks. Choosing Nanjing Zhuye Elevatorparts means you get not only authentic 39*12*6201 positioning wheels and M8 screws but also professional technical support, including installation guidance, maintenance advice, and prompt after-sales service.
