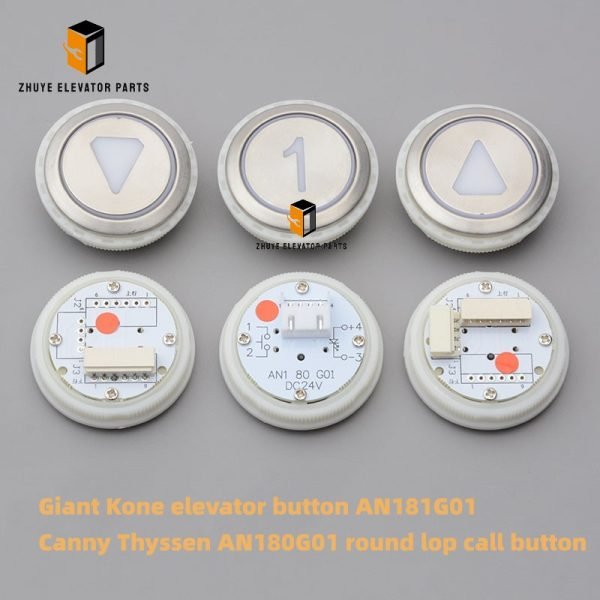

Giant Kone elevator button AN181G01 CAANY Thyssen AN180G01 round button Brief Introduction
1. Full Supply Chain For Otis, Kone, Schindler, Mitsubishi, Thyssenkrupp Elevator Lift and Escalator All Brand Spare Parts
2. 100% Original New with a one-year free Guarantee.
3. Fast Delivery
4. Huge Customer From European
| Product Name: | Giant Kone elevator button CAANY Thyssen round button |
| Model Number: | AN181G01 AN180G01 |
| Brand: | Elevator button |
| Feature: | 100% Original New |
| Guarantee: | One-Year Free Guarantee |
| Delivery Time: | 3-5working days once get the payment |
Elevator Button AN181G01 – The 18 mm Square Switch That Answers Every Passenger in 0.1 Second
Courtesy of Nanjing Zhuye Elevator Parts Co., Ltd.
Courtesy of Nanjing Zhuye Elevator Parts Co., Ltd.
Passengers judge an elevator within half a second—if the call-button LED does not light the instant a finger taps, the entire ride feels “old” and “unsafe”. The AN181G01 is an 18 mm square, illuminated micro-switch originally designed by Otis for Gen2® and SkyRise® car and hall stations. Gold-plated contacts, IP54 front plate and 3-million-cycle endurance make it the silent guarantor of a crisp “click” year after year. Nanjing Zhuye Elevator Parts keeps factory-sealed AN181G01 units in anti-static stock for same-day despatch. Below we explain what the button does, how to install it in 90 seconds, and the replacement cycle that prevents expensive “no response” call-backs.
1. What AN181G01 Really Is
-
18 × 18 mm square lattice snaps into 20 × 20 mm European or 19 × 19 mm Asian cut-outs
-
1.2 mm flush lens with 2.2 mm anti-g vandal bezel—graffiti wipes off with IPA
-
Gold-plated micro-switch, 1 A 250 VAC, 0.1 mm contact gap, 3 million cycles
-
12 VDC warm-white LED, 18 mA, 220 cd m⁻² visible at 6,000 lux lobby lighting
-
IP54 front plate, -25 °C to +70 °C, 95 % RH non-condensing
-
Plug-in 6-way JST connector—swap without touching a screwdriver
If the lens cracks, the LED dies, or tactile force drops below 2 N, passengers immediately doubt the entire lift.
2. Where It Is Used
-
Otis Gen2®, Gen2-Life®, SkyRise® car and hall stations
-
Thyssen, KONE, Schindler retrofits using 18 mm square lattice
-
Machine-room-less (MRL) or machine-room (MR) installations
-
New build or modernisation—one part number fits all 18 mm square faceplates
3. Installation – 90-Second Swap
Safety: place lift on inspection, lock main breaker, tag out.
-
Pop old button with plastic spudger; disconnect 6-way JST.
-
Inspect socket latch; if cracked, replace 18 × 18 carrier (Nanjing Zhuye part HZ-18-ABS).
-
Snap AN181G01 into square hole until two clicks—diagonal pull test >20 N.
-
Plug JST: red +12 V, black 0 V, blue/white NO contact to controller.
-
Power up; LED must light and controller must log call within 50 ms.
No laptop, no parameter, no download—true plug-and-play.
4. Daily Operation – What the Button Actually Does
-
Tactile force 3.8 N ± 0.5 N—perfect for gloved or elderly users
-
1.2 mm pre-travel, 0.8 mm over-travel—no finger fatigue
-
Audible click 45 dB—heard by hard-of-hearing, quiet enough for hotels
-
LED dims to 30 % after 22:00 (energy code) via on-board PWM
5. Replacement Cycle & Preventive Maintenance
-
High-traffic office (>1,500 presses day⁻¹) – inspect quarterly, replace every 24 months
-
Residential tower (400–800 presses day⁻¹) – inspect every 6 months, replace every 4 years
-
Low-rise freight (≤200 presses day⁻¹) – inspect annually, replace every 6 years
Replace immediately if:
-
LED lumen maintenance <70 % (symbol looks grey)
-
Tactile force <2 N (no “click”)
-
Contact resistance >100 mΩ at 1 A
-
Lens cracked or pictogram worn >50 % dot area
-
Yellow LED (end-of-life) stays on after cleaning
6. Extending Life – 3 Pro Tips
-
Keep 12 VDC ±5 %; spikes above 16 V halve LED life
-
Clean with 70 % isopropyl, not ammonia glass spray—prevents crazing
-
In coastal cities add optional silicone boot (IP65) to stop salt fog
7. Why Buy AN181G01 from Nanjing Zhuye Elevator Parts?
-
Factory-new, not refurbished; passes 1-million-cycle bench test
-
Gold contacts 1 µm thick; contact resistance <30 mΩ new
-
Dual stock: 22,000 pcs Nanjing, 8,000 pcs Dubai—next-day to 65 countries
-
Bundle offer: button + 30 cm flying lead + socket—5 % cheaper than single OEM piece
-
24 months warranty, return & replace, no factory RMA
-
7×24 WhatsApp/WeChat video support; average reply 11 minutes
Conclusion
The AN181G01 push button is only 18 mm wide, yet it carries the entire brand image of your elevator. A dead LED or mushy switch tells passengers “this lift is old” long before any door motor fault. Stock a handful of Nanjing Zhuye OEM-grade buttons on every service truck, swap them on schedule, and keep callbacks, complaints and one-star reviews off your dashboard — one quiet, illuminated click at a time.
