Description

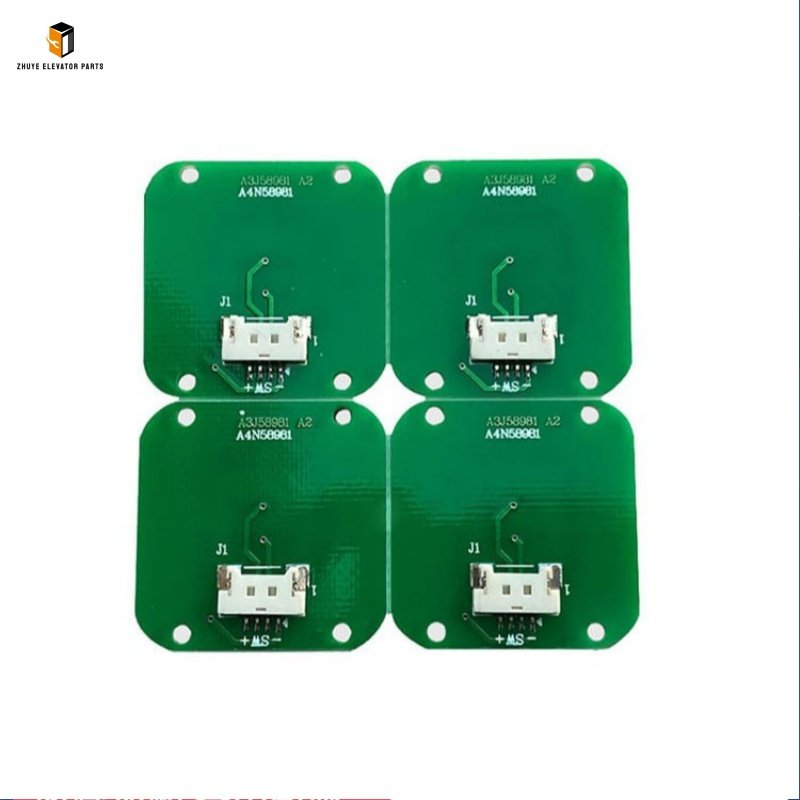

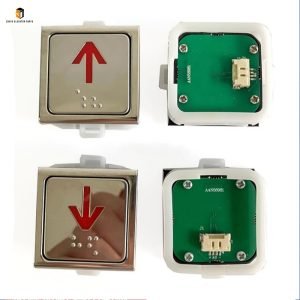

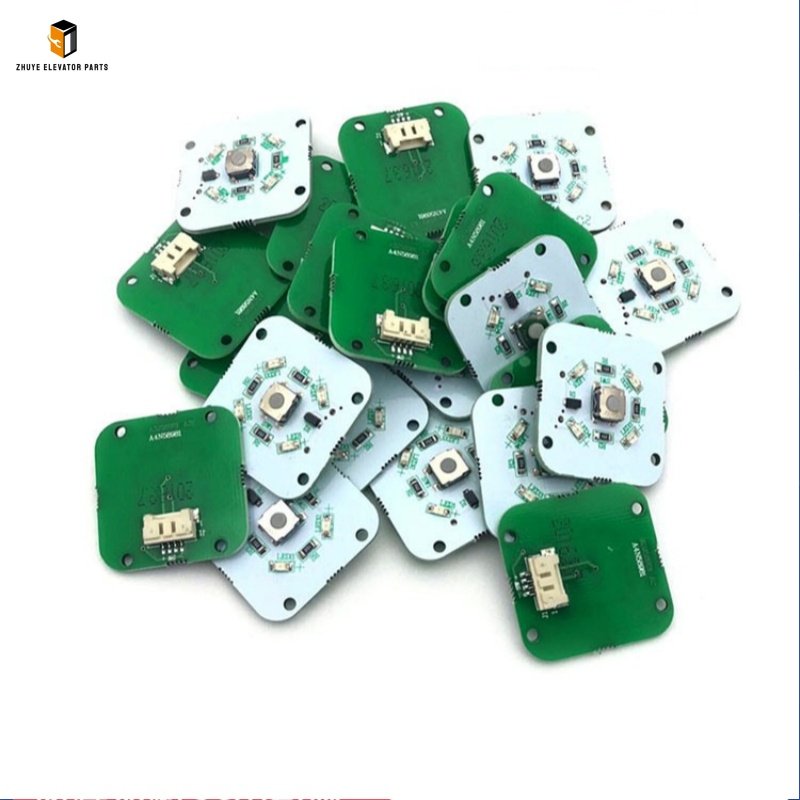

Elevator button A4N58981 Brief Introduction
|
Product Name |
Elevator button |
| Model Number | A4N58981
A3J58981 |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Button A4N58981 – The Touch That Travels Millions of Floors | Nanjing Zhuye Elevator Parts
Every passenger journey starts with a press. The A4N58981 touch-button combines a vandal-resistant stainless face, capacitive sense element and RGB halo in one 30 mm module, giving instant visual feedback while surviving coffee spills, key scratches and 10 million activations. When the halo stays dark or the lift fails to answer, users blame the entire building. Nanjing Zhuye Elevator Parts keeps genuine A4N58981 buttons in original anti-static trays, ready for same-day despatch so your car calls never stay silent.
Product snapshot
-
Part number A4N58981, revision D2, common to Otis, ThyssenKrupp and Hyundai COP assemblies
-
30 mm mounting hole, 1 mm front bezel, brushed SST 304, fingerprint-resistant nano-coating
-
Capacitive touch, 1-5 mm activation distance, works with gloves or wet fingers
-
RGB halo, 24 V common anode, 20 mA per colour, 256-level PWM dimming
-
1 NO + 1 NC gold-plated contacts, 24 VDC 50 mA minimum, 250 mA maximum
-
On-board transient suppressor, ESD ±15 kV air, ±8 kV contact
-
Operating temperature −25 °C to +70 °C, humidity 5-95 % RH non-condensing
-
10 million mechanical cycles, 1 million electrical cycles at rated load
-
Rear housing PA66 + 30 % GF, V-0 flame class, IP54 when front gasket installed
-
Weight 18 g, solder-less cage-clamp terminals AWG 18-24, 0.2 Nm torque
Where it works
-
Passenger COP and landing panels in Otis Gen2®, ThyssenKrupp EVOLUTION, Hyundai YZER
-
Modernisation packages replacing mechanical push-buttons or damaged halos
-
Any controller supplying 24 VDC ±10 % and accepting dry-contact input
Installation method – 2-minute swap
-
Place lift on inspection mode; switch OFF COP breaker.
-
Remove face-plate with plastic pry tool; photograph wire colours.
-
Pull old button forward; release cage-clamp wires.
-
Insert new A4N58981; connect 24 V to pins 1 (+) and 2 (−), halo common to pin 3, NO contact to pin 4.
-
Restore power; halo should light white for 1 s then turn off.
-
Press surface; controller input LED must illuminate and halo change to blue (customisable).
-
Re-install face-plate; torque screws 0.8 Nm to avoid bezel distortion.
-
Log serial number and date in maintenance book.
Replacement cycle & wear indicators
Although contact-less, buttons still age mechanically and electrically. EN 81-70 and site logs suggest:
-
Visual check every 6 months: look for halo dark spots, bezel scratches, cable oil swelling.
-
Function test every 12 months: measure contact resistance < 50 mΩ; replace if > 100 mΩ.
-
Replace entire button every 6 years or 1 million cycles (≈ 400 starts/day).
-
Immediate replacement if:
– halo dead or flickers despite 24 V present,
– no input signal when pressed (capacitive sensor failed),
– bezel cracked exposing live parts,
– ESD damage after lightning (halo locks red).
Pro tip: 60 % of premature failures are traced to over-torqued face-plates—cracks allow moisture into the sensor.
Maintenance tips from Nanjing Zhuye Elevator Parts
-
Clean only with iso-propyl alcohol; abrasive cleaners remove nano-coating and invite fingerprints.
-
Never hot-swap with power on; transients can weld the gold contacts.
-
Keep spare A4N58981 in every service tool bag; at 18 g it costs less than one callback.
-
After heavy cleaning, check 24 V ripple < 1 V; high ripple dims the halo prematurely.
-
Order the “Button Pack” (button + gasket + crimp terminals) from Nanjing Zhuye Elevator Parts to eliminate on-site splicing.
Why buy from Nanjing Zhuye Elevator Parts?
We source A4N58981 directly from the OEM foundry, batch-test 100 % for halo brightness and contact resistance, and ship with a 24-month replacement warranty. Stock is stored in humidity-controlled bins to prevent terminal oxidation. Orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at 50 pieces; we can laser-etch custom icons or your logo on the bezel free of charge.
Conclusion
The A4N58981 button is the smallest critical component in your lift. By installing the genuine unit, setting bezel torque to spec and replacing it before the halo fades, you turn every call into a silent vote for reliability. Stock genuine A4N58981 from Nanjing Zhuye Elevator Parts today—because when the button fails, the whole ride stops.
