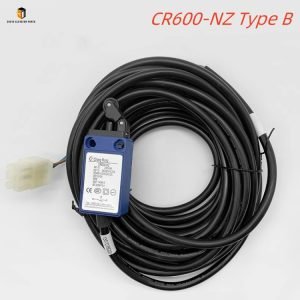

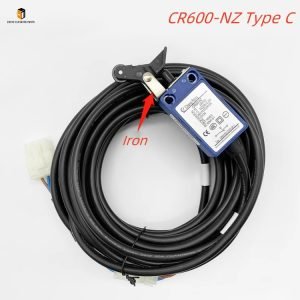

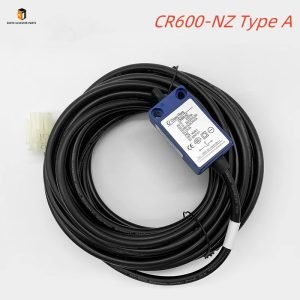

Elevator buffer switch CR600-NZ/NF Brief Introduction

Product Name	Elevator buffer switch
Model Number	CR600-NZ CR600-NF
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Buffer Switch CR600-NZ/NF – Nanjing Zhuye Elevatorparts

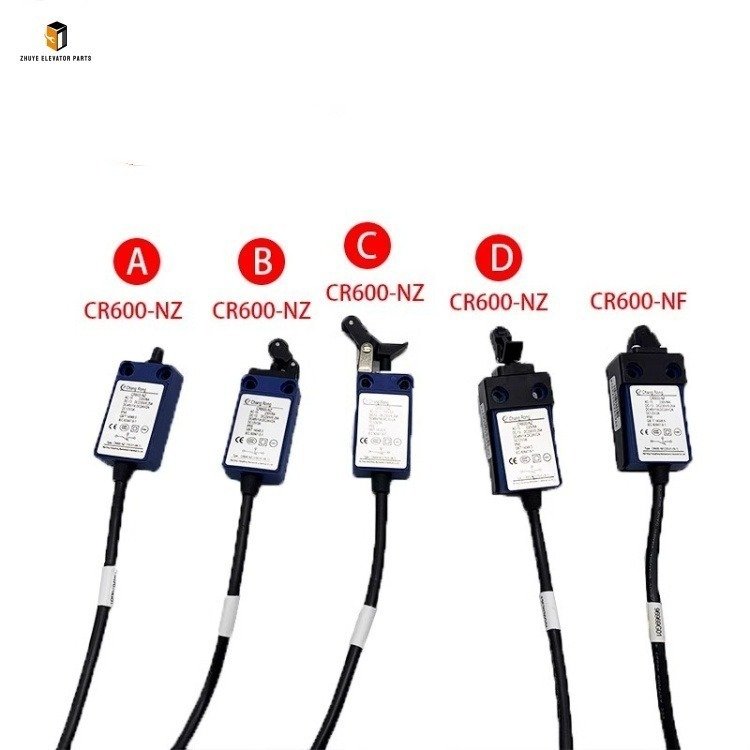

The elevator buffer is a critical safety device that prevents the elevator car from overtraveling, and the buffer switch serves as the “safety trigger” to monitor the buffer’s status. The Elevator Buffer Switch CR600-NZ/NF provided by Nanjing Zhuye Elevatorparts is a high-reliability safety component tailored for elevator buffer systems, covering two models (CR600-NZ normally closed, CR600-NF normally open) to meet different control system requirements. It is widely compatible with mainstream elevator brands such as Schindler, OTIS, and KONE, and is installed on the elevator buffer or pit bracket to cut off the elevator’s operation circuit immediately when the buffer is triggered. Crafted with high-quality insulating materials, precision contact components, and a dust-proof and waterproof shell, this switch meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Safety First, Precision Triggering” and implements strict quality control throughout the production process of the CR600-NZ/NF buffer switch. Each unit undergoes rigorous testing, including contact continuity verification, insulation resistance testing, mechanical trigger sensitivity detection, and environmental adaptability assessment. The switch adopts a rugged PA66 insulating shell with an IP65 protection rating, effectively resisting dust, moisture, and impact in the harsh elevator pit environment. The internal silver alloy contacts have low contact resistance (≤ 50mΩ) and excellent wear resistance, with a mechanical life of ≥ 1 million times and an electrical life of ≥ 100,000 times. The precise trigger mechanism ensures that the switch acts immediately when the buffer is compressed (trigger stroke ≤ 2mm), and the reset function is reliable, ensuring the elevator can only resume operation after the buffer resets to its original position.

Usage Guide for Elevator Buffer Switch CR600-NZ/NF

Correct installation, adjustment, and maintenance are crucial to ensuring the reliable performance of the CR600-NZ/NF elevator buffer switch. Nanjing Zhuye Elevatorparts emphasizes that only certified elevator maintenance technicians are allowed to perform related operations, as improper use may lead to safety hazards or elevator operation failures.

1. Pre-Installation Preparation

First, confirm that the elevator’s MAC car lighting controller model matches the POWCV24181MH power supply (check parameters such as input voltage, output voltage, output current, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and the secondary power supply for the car lighting system, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator landing doors and machine room entrance. Locate the power supply installation position (usually on the car top or in the car control cabinet) and clean the area to remove dust, debris, and oil stains. Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and insulation tester, and check that the new POWCV24181MH power supply from Nanjing Zhuye Elevatorparts is intact (no damage to the shell, no loose pins).

First, confirm that the elevator buffer model and control system type match the CR600-NZ/NF switch (select normally closed CR600-NZ or normally open CR600-NF as needed). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and secondary power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the landing doors and machine room entrance. Enter the elevator pit after stabilizing the elevator car with mechanical supports to prevent accidental movement. Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and insulation tester, and clean the switch installation position (on the buffer or pit bracket) to remove dust, debris, and water stains.

2. Installation & Wiring

If replacing the old switch, first take photos to record the wiring positions and trigger rod alignment for later reference. Disconnect the wiring of the old switch according to the labels and remove the old switch. Take the new CR600-NZ/NF switch from Nanjing Zhuye Elevatorparts, fix it on the buffer or pit bracket with screws, and ensure the switch’s trigger rod is aligned with the buffer’s collision plate (gap between trigger rod and collision plate: 1-3mm). Connect the wires strictly following the wiring diagram provided by Nanjing Zhuye—note that the switch must be connected in series in the elevator’s safety circuit to ensure it can cut off the circuit effectively when triggered. After wiring, tighten the terminal screws and use a multimeter to test the switch’s on-off status (CR600-NZ is closed in normal state, CR600-NF is open).

Debugg3. Operation & Daily Maintenance

Restore the power supply and switch the elevator to inspection mode. Manually trigger the buffer to check if the switch acts immediately (the elevator control system should issue a fault alarm and cut off the operation circuit). Release the buffer to confirm it resets normally and the switch restores its original on-off state. Test the switch’s sensitivity repeatedly 3-5 times to ensure reliable performance. For daily maintenance, inspect the switch during weekly pit patrols: Check if the shell is damaged, cracked, or has water seepage; confirm the trigger rod is not bent or stuck; check the wiring terminals for looseness, oxidation, or corrosion. Clean the switch surface with a dry cloth regularly. Every 3 months, test the switch’s on-off sensitivity and insulation resistance (insulation resistance ≥ 100MΩ is normal); every 6 months, inspect the buffer’s synchronization with the switch.

Replacement Cycle of Elevator Buffer Switch CR600-NZ/NF

The replacement cycle of the CR600-NZ/NF buffer switch is closely related to the operating environment and trigger frequency. Under normal circumstances (elevator daily operation 12-24 hours, pit environment dry and low-dust, no frequent buffer triggering), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 3-4 years. This cycle is determined based on long-term field operation data, component aging tests, and contact wear tests, fully considering the aging of insulating materials, the wear of internal contacts, and the fatigue of the trigger mechanism.

For elevators in harsh environments (e.g., pits with frequent water accumulation, high humidity, or heavy dust; coastal areas with high salt spray) or elevators in areas with frequent power fluctuations, the replacement cycle should be shortened to 1.5-2.5 years. Harsh environments accelerate the corrosion of the shell and terminals, while unstable power supply affects the service life of internal components. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation time < 8 hours) in stable environments, the cycle can be extended to 4-5 years, but only after inspection and confirmation by Nanjing Zhuye’s technicians that the switch’s performance meets safety standards.

Replace the switch immediately if any of the following issues occur, regardless of its service life: The switch fails to act when the buffer is triggered, or fails to reset after the buffer is released; the shell is severely damaged, cracked, or has water seepage, leading to exposed internal circuits; multimeter testing shows insulation resistance < 100MΩ or contact resistance > 100mΩ; the trigger rod is bent, stuck, or deformed, affecting normal triggering; the switch causes frequent false alarms or fails to alarm when needed.

The Elevator Buffer Switch CR600-NZ/NF from Nanjing Zhuye Elevatorparts integrates safety, durability, and compatibility, providing a solid safety guarantee for elevator buffer systems. By following the correct usage, maintenance, and replacement guidelines, you can effectively ensure the switch functions reliably when needed, safeguard the safety of passengers and maintenance personnel, and avoid major elevator safety accidents. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic CR600-NZ/NF buffer switches, as well as professional services including model matching, on-site installation guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the safety of your elevator system.
