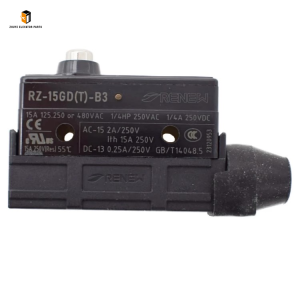

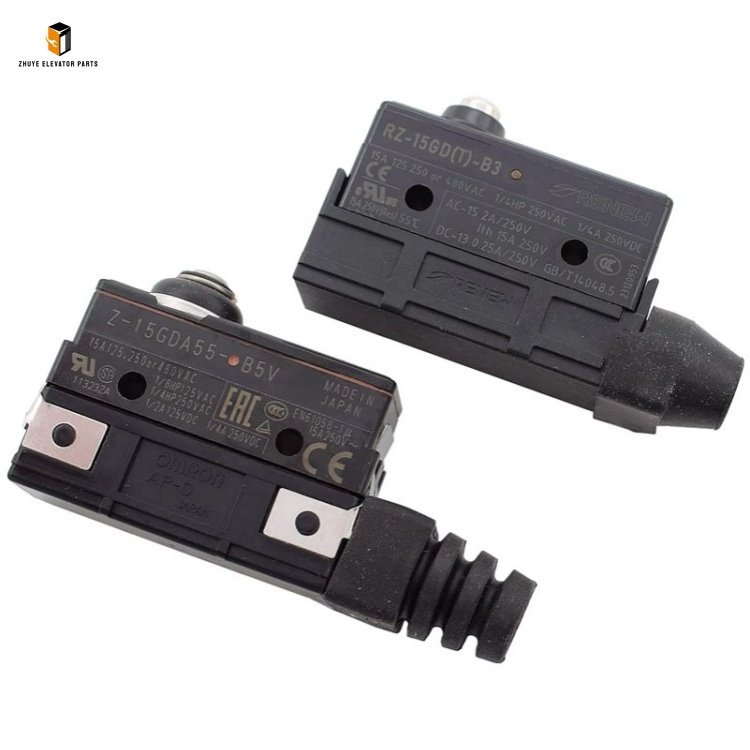

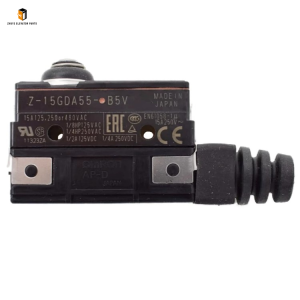

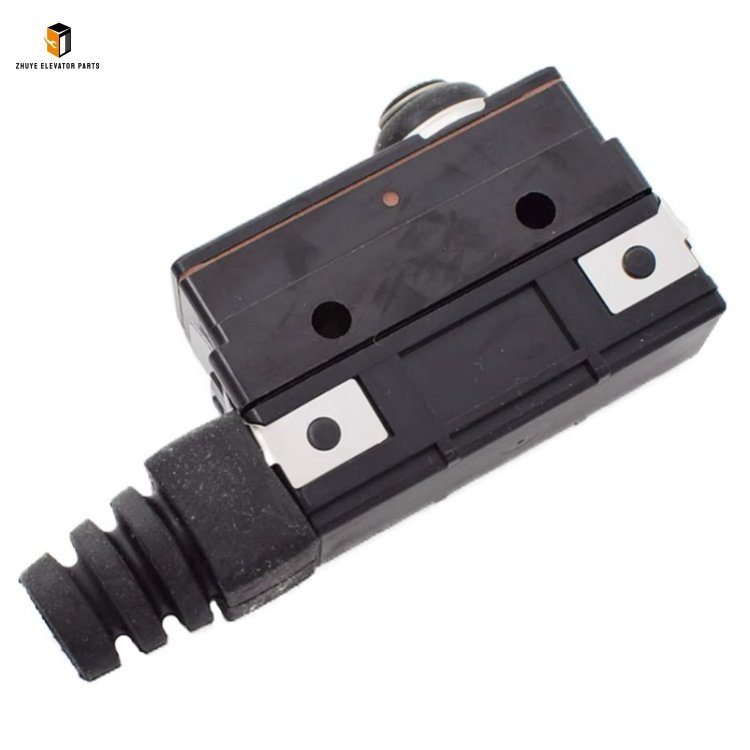

Elevator Brake Switch RZ-15GD-B3(T): Reliable Safety Component for Otis Z-15GDA55-B5V

Proper Usage Methods of Elevator Brake Switch RZ-15GD-B3(T) for Otis Z-15GDA55-B5V

1. Installation & Commissioning

• First, cut off the elevator power supply and ensure safety. Thoroughly clean the installation position on the Otis Z-15GDA55-B5V brake assembly to remove dust, oil stains, and debris, ensuring a stable mounting base for the switch.
• Align the brake switch with the preset mounting holes on the brake assembly, and fasten it firmly using original matching bolts and nuts. The tightening torque must comply with Otis’s technical requirements (typically 12–18 N·m) to prevent loosening due to elevator vibration during operation.
• Correctly connect the wiring: According to the wiring diagram provided by Nanjing Zhuye Elevatorparts and Otis, connect the switch’s signal wires to the corresponding terminals of the Otis Z-15GDA55-B5V elevator controller. Ensure the wiring is tight and reliable, and the wire insulation layer is intact to avoid short circuits or poor contact. Pay special attention to the contact state (normally open/normally closed) of the switch to ensure it matches the elevator control system’s requirements.
• Post-installation commissioning: Restore the elevator power supply, operate the elevator in the inspection mode, and check if the brake switch’s signal output is normal through the elevator controller. Verify that the switch can accurately detect the brake’s on-off state—when the brake is released, the switch sends a normal signal, and when the brake is engaged, the signal changes accordingly. Confirm that the elevator can start and stop normally according to the brake switch’s signal.

2. Daily Operation & Routine Inspection

• During elevator operation, monitor the elevator’s braking status and the brake switch’s working state through the elevator control system’s fault code display. Abnormal codes related to the brake switch usually indicate issues such as poor contact, loose wiring, or switch failure.
• Conduct weekly visual inspections: After cutting off the power supply, check the appearance of the RZ-15GD-B3(T) brake switch for damage, including cracks or deformation of the insulating shell, looseness of bolts and wiring terminals, and oxidation or ablation of the wiring. Retighten loose fasteners in a timely manner, clean the wiring terminals with a dry cloth if oxidation is found, and replace damaged wiring if necessary.
• Regularly check the switch’s trigger sensitivity. Manually simulate the brake’s on-off action to ensure the switch triggers accurately and resets smoothly without jamming. If the switch is stuck or insensitive, resolve the issue promptly.

3. Regular Maintenance

• Every 3 months, thoroughly clean the brake switch and its surrounding area. Use a dry, lint-free cloth to wipe off dust and debris; avoid using water, alcohol, or corrosive cleaners that may damage the insulating shell and contact components.
• Every 6 months, recheck the wiring connections and terminal tightness. Use a multimeter to detect the switch’s contact resistance (should be ≤50mΩ) to ensure it meets the standard requirements. If the contact resistance exceeds the standard, it indicates contact wear or oxidation, and the switch should be maintained or replaced in time.
• Annually, conduct a comprehensive performance test: Simulate various working conditions of the brake to test the switch’s trigger accuracy and signal stability. If the performance indicators do not meet Otis’s technical requirements, contact Nanjing Zhuye Elevatorparts for professional maintenance or replacement with original brake switches to ensure the safety of the elevator braking system.

Recommended Replacement Cycle of Elevator Brake Switch RZ-15GD-B3(T)

1. Standard Replacement Cycle

2. Scenario-Based Cycle Adjustment

• Harsh Operating Environments: For elevators operating in high-humidity coastal regions, high-dust construction sites, high-temperature unventilated machine rooms, or areas with unstable power grids, the replacement cycle should be shortened to 3–4 years. Harsh conditions accelerate the aging of insulating materials, corrosion of contacts, and mechanical wear, reducing the switch’s reliability.
• Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with less than 3,000 monthly operations) and stable operating environments, the replacement cycle can be appropriately extended to6–8 years after a professional inspection by Nanjing Zhuye Elevatorparts confirms that the switch’s contact performance, trigger sensitivity, and structural integrity are intact.

3. Immediate Replacement Conditions

• The insulating shell is severely cracked, deformed, or burned, losing its insulating and protective functions.
• Contacts are severely oxidized, ablated, or stuck, resulting in poor contact, no signal output, or false signals.
• The switch fails to trigger accurately or reset smoothly, leading to abnormal elevator braking (e.g., failure to start, sudden stop during operation) that cannot be resolved by maintenance.
• The switch fails the annual performance test, and the performance indicators cannot be restored to the standard range even after maintenance.
