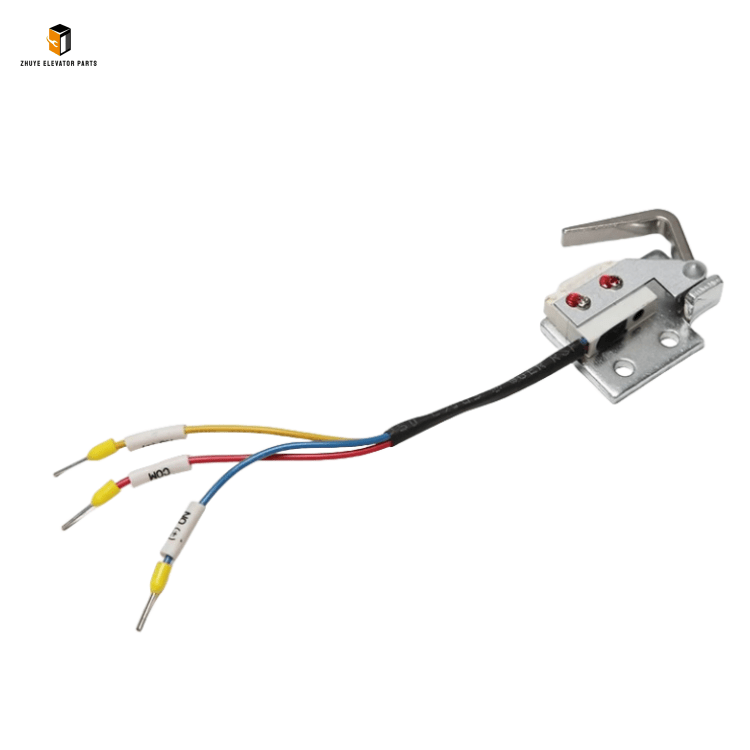

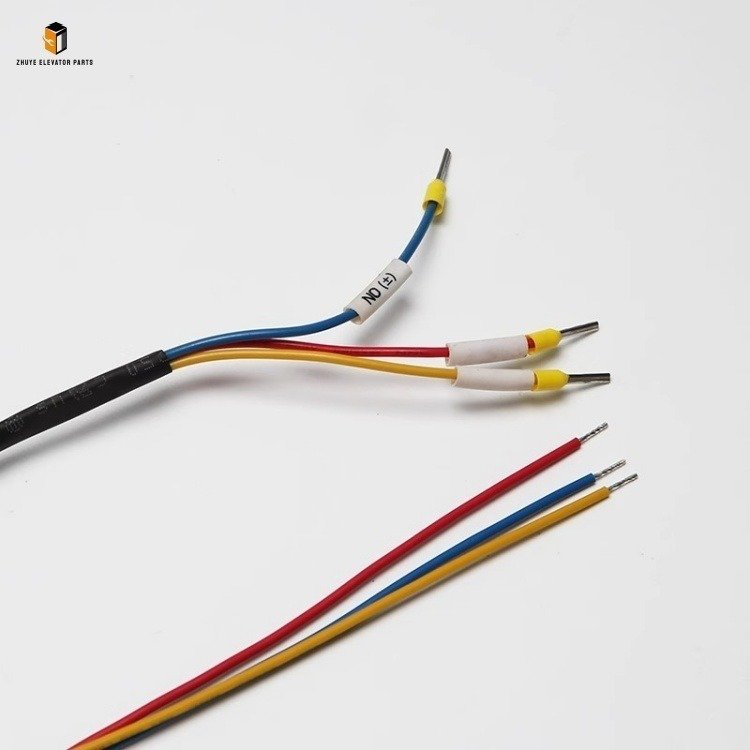

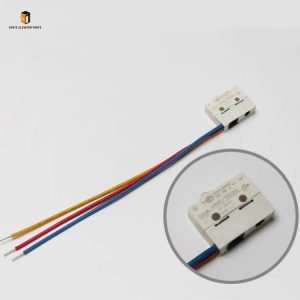

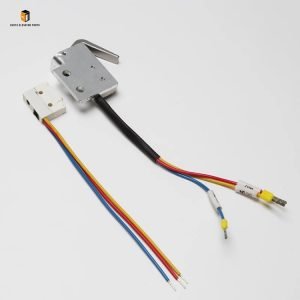

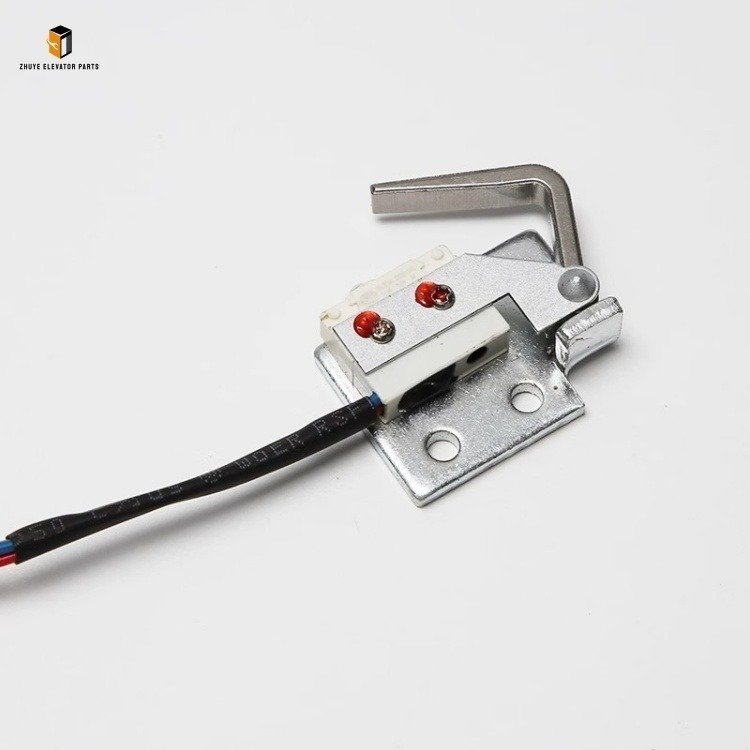

Elevator brake detection switch V4NS/3502UL Introduction
|
Product Name |
Elevator brake detection switch |
| Model Number | V4NS/3502UL |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Brake Detection Switch V4NS/3502UL – Nanjing Zhuye Elevatorparts
The elevator car top emergency power supply is a critical safety component that ensures the elevator’s emergency systems (such as lighting, communication, and door opening) operate normally when the main power supply fails. The Elevator Car Top Emergency Power Supply DJW12-4.5/7.0 provided byNanjing Zhuye Elevatorparts is a high-reliability power supply device tailored for mainstream elevator systems. It supports two capacity specifications (4.5Ah and 7.0Ah) to meet the needs of different elevator models, widely compatible with brands such as Schindler, OTIS, and KONE. Crafted with high-performance lithium-ion batteries, intelligent charging management modules, and flame-retardant casings, this emergency power supply meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator leveling system is a key component that ensures the elevator car aligns accurately with the floor, providing safe and comfortable access for passengers. The elevator leveling sensor serves as the “eye” of this system, detecting the car’s position in real time. The Elevator Leveling Sensor TNC-121 provided by Nanjing Zhuye Elevatorparts is a high-precision position-sensing component tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This sensor adopts advanced photoelectric sensing technology, featuring high detection accuracy, fast response speed, and strong anti-interference ability, ensuring the elevator stops stably and accurately at each floor. Crafted with high-quality optical components, sealed metal shells, and precision electronic circuits, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator lock is a core safety component that ensures the elevator car door and landing door remain locked during operation, preventing accidental opening and ensuring passenger safety. The Elevator Lock CV50 180 JK406-001 provided by Nanjing Zhuye Elevatorparts is a high-reliability safety lock tailored for mainstream elevator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, suitable for both passenger and freight elevators. This elevator lock integrates precise mechanical structure and stable electrical control, achieving reliable locking when the elevator is running and smooth unlocking when it reaches the floor. Crafted with high-strength alloy steel, flame-retardant plastic, and precision electronic components, it meets international elevator safety standards (EN 81-20, GB 7588) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator’s electrical control system is prone to arc generation during switch-on and switch-off of contacts, which may cause damage to electrical components or even fire hazards. The elevator arc extinguisher serves as a “safety barrier” to suppress and eliminate arcs. The Elevator Arc Extinguisher HD1.211 provided by Nanjing Zhuye Elevatorparts is a high-performance arc suppression component tailored for elevator electrical systems. It is widely compatible with mainstream elevator brands such as Schindler, OTIS, and KONE, suitable for arc suppression of elevator contactors, relays, and other electrical contacts. Crafted with high-quality arc-extinguishing materials, flame-retardant shells, and precision structural design, this arc extinguisher meets international electrical safety standards (IEC 60947, GB/T 14048) and has become a trusted choice for global elevator maintenance teams and manufacturers.
The elevator door operator is the “power core” of elevator door opening and closing, and the door operator belt serves as a critical transmission component that connects the motor and door pulley system. The Elevator Door Operator Belt L075 provided by Nanjing Zhuye Elevatorparts is a high-performance transmission belt tailored for mainstream elevator door operator systems. It is widely compatible with elevator brands such as Schindler, OTIS, and KONE, playing a vital role in ensuring smooth, quiet, and stable operation of elevator doors. Crafted with high-strength polyurethane (PU) material and embedded with high-tensile polyester cords, this belt features excellent wear resistance, tensile strength, and flexibility, meeting international elevator safety standards (EN 81-20, GB 7588) and becoming a trusted choice for global elevator maintenance teams and manufacturers.
The elevator brake system is a core safety component, and the brake detection switch serves as its “monitor” to ensure reliable operation, which is closely linked to the door machine pulley system (composed of drive and driven pulleys). The Elevator Brake Detection Switch V4NS/3502UL launched by Nanjing Zhuye Elevatorparts is a high-reliability safety component tailored for mainstream elevator brake systems. It is widely compatible with renowned elevator brands such as Schindler, OTIS, and KONE, accurately detecting the brake’s on-off status and sending signals to control the door machine pulley system to start or stop door operation. Crafted with high-precision contact mechanisms, flame-retardant shells, and anti-interference modules, this detection switch meets international elevator safety standards (EN 81-20, UL 508) and has become a trusted choice for global elevator maintenance teams and manufacturers.
Nanjing Zhuye Elevatorparts has always adhered to the concept of “quality first, safety-oriented,” implementing strict quality control throughout the production process of the V4NS/3502UL brake detection switch. Each unit undergoes rigorous testing, including contact on-off performance verification, mechanical durability testing, high-temperature resistance assessment, and anti-electromagnetic interference testing. The precision contact mechanism adopts a snap-action design with a response time of less than 0.05 seconds, ensuring timely and accurate transmission of brake status signals. The flame-retardant shell (UL94 V-0 rating) can withstand high temperatures up to 120℃, effectively preventing fire risks in the machine room. The switch has an IP65 dustproof and waterproof rating, adapting to the harsh operating environment of elevator machine rooms, and its mechanical service life exceeds 10 million operations, ensuring long-term reliable performance.
Usage Guide for Elevator Brake Detection Switch V4NS/3502UL
Correct installation, debugging, and maintenance of the V4NS/3502UL brake detection switch are crucial to ensuring elevator brake safety and coordinated operation with the door machine pulley system. Nanjing Zhuye Elevatorparts emphasizes that only certified elevator maintenance technicians are allowed to perform installation and replacement operations.
1. Pre-Installation Preparation
1. Pre-Installation Preparation
First, confirm that the elevator’s MAC car lighting controller model matches the POWCV24181MH power supply (check parameters such as input voltage, output voltage, output current, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and the secondary power supply for the car lighting system, lock the switch, and place a “Maintenance in Progress” warning sign at the elevator landing doors and machine room entrance. Locate the power supply installation position (usually on the car top or in the car control cabinet) and clean the area to remove dust, debris, and oil stains. Finally, prepare professional tools such as a screwdriver, wire stripper, multimeter, and insulation tester, and check that the new POWCV24181MH power supply from Nanjing Zhuye Elevatorparts is intact (no damage to the shell, no loose pins).
First, confirm that the elevator brake model matches the V4NS/3502UL detection switch (check parameters such as contact type, action stroke, and installation dimensions). Consult Nanjing Zhuye Elevatorparts’ technical team if there is any uncertainty about compatibility. Then, cut off the elevator’s main power supply and brake system power supply, lock the switch, and place a “Maintenance in Progress” warning sign at the machine room entrance. Fix the elevator car at a safe position with a hoist to ensure the brake is in a released state. Finally, prepare professional tools such as a screwdriver, wrench, multimeter, and measuring tape; clean the switch installation area and brake linkage parts, and check the door machine’s drive and driven pulleys for normal operation (abnormal pulley operation may affect door operation after brake release).
2. Installation & Wiring
If replacing the old detection switch, first take photos to record its installation position, contact direction, and wiring connections for later reference. Disconnect the wires from the old switch according to the recorded labels and remove the old switch. Take the new V4NS/3502UL switch from Nanjing Zhuye Elevatorparts, install it on the brake bracket, and fasten it firmly with screws. Adjust the switch’s action pin to ensure it is in close contact with the brake linkage—when the brake is engaged, the switch is triggered; when released, it resets. Connect the wires to the corresponding terminals strictly following the photos and the wiring diagram provided by Nanjing Zhuye—distinguish between signal wires and power wires to avoid wrong connection. After wiring, use a multimeter to test the contact on-off performance to confirm normal signal transmission.
Debugg3. Operation & Daily Maintenance
Remove the hoist fixing the car, restore the power supply, and switch the elevator to inspection mode. Operate the brake to engage and release repeatedly, observing whether the V4NS/3502UL switch is triggered accurately and sends correct signals to the control system. Check if the door machine pulley system starts door operation only when the brake is released—no misoperation is allowed. After 1 hour of stable operation, check the switch’s temperature and wiring terminals (no abnormal heat or loose wires). For daily maintenance, inspect the switch during monthly machine room patrols: Check for loose bolts, deformation of the action pin, and oxidation of contacts; clean the switch surface and action pin with a dry cloth. At the same time, check the door machine pulley system’s operation—abnormal pulley wear may cause door operation delays after brake release. Every 3 months, recheck the switch’s action stroke and contact performance; every 6 months, lubricate the switch’s moving parts with special lubricant.
Replacement Cycle of Elevator Brake Detection Switch V4NS/3502UL
The replacement cycle of the V4NS/3502UL brake detection switch is closely related to operating conditions and the frequency of door machine pulley operation. Under normal circumstances (elevator daily operation 12-24 hours, machine room environment dry and low-dust, no frequent vibration), Nanjing Zhuye Elevatorparts recommends a replacement cycle of 2-3 years. This cycle is determined based on long-term field operation data and component aging tests, fully considering the wear of the action pin, contact fatigue, and shell aging.
For elevators in high-traffic areas (e.g., large shopping malls, airports with daily operation ≥ 20 hours) or harsh environments (machine room with high humidity, heavy dust, large temperature fluctuations), the replacement cycle should be shortened to 1-1.5 years. High-frequency brake engagement and release accelerate the wear of the switch’s moving parts, while harsh environments easily cause component corrosion and jamming. For low-usage elevators (e.g., villa elevators, small office buildings with daily operation time < 8 hours) in stable environments, the cycle can be extended to 3-4 years, but only after inspection and confirmation by Nanjing Zhuye’s technicians that the switch’s performance and coordination with the door machine pulley system meet standards.
Replace the switch immediately if any of the following issues occur, regardless of its service life: The switch fails to trigger or is triggered incorrectly, causing the door machine pulley system to misoperate; the action pin is deformed or broken, affecting normal operation; the contacts are severely oxidized or burned, resulting in unstable signal transmission; the shell is severely corroded or damaged, losing protection performance; the switch cannot coordinate with the brake system normally, leading to frequent elevator safety alarms.
The Elevator Brake Detection Switch V4NS/3502UL from Nanjing Zhuye Elevatorparts integrates high reliability, durability, and strong compatibility, providing a critical safety guarantee for the elevator brake system and ensuring coordinated operation with the door machine pulley system. By following the correct usage, maintenance, and replacement guidelines, you can effectively prevent elevator safety accidents caused by brake failures, ensure the safe operation of the elevator, and protect the safety of passengers and equipment. Choosing Nanjing Zhuye Elevatorparts means you get 100% authentic V4NS/3502UL brake detection switches, as well as professional services including model matching, on-site installation guidance, and timely after-sales support. Trust Nanjing Zhuye Elevatorparts for the stable and safe operation of your elevator.
