Description

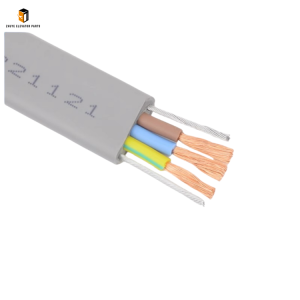

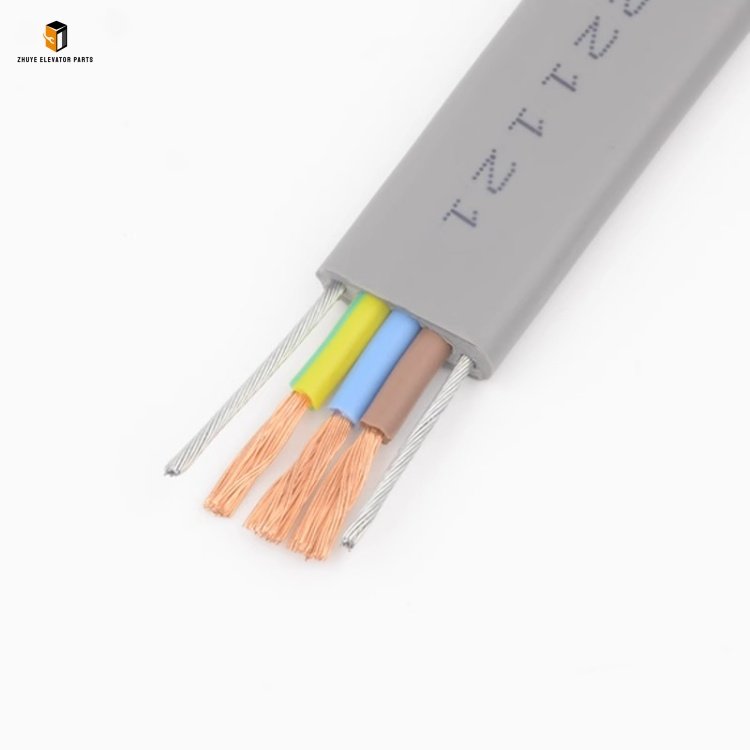

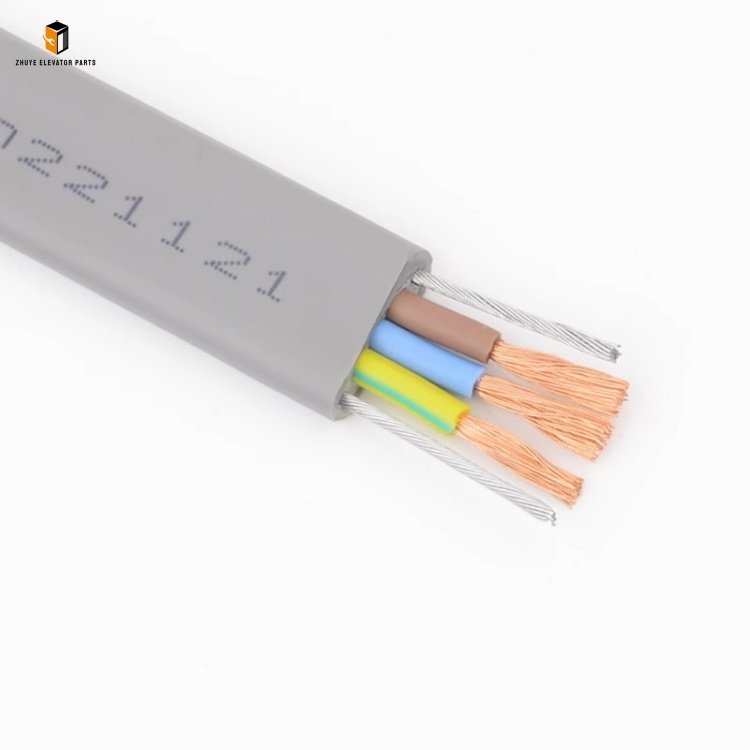

Elevator air conditioning accompanying cable TVVB2G3 Brief Introduction

Product Name	Elevator air conditioning accompanying cable
Model Number	3 core 2.5 flat double steel wire TVVB2G3
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Air Conditioning Accompanying Cable TVVB2G3: Stable Connection Core from Nanjing Zhuye Elevatorparts

The elevator air conditioning accompanying cable is a critical connecting component for elevator air conditioning systems, responsible for transmitting power and control signals between the fixed control cabinet and the movable air conditioning unit in the elevator car. Its stable performance directly determines the normal operation of the elevator air conditioner, ensuring a comfortable temperature environment for passengers. The Elevator Air Conditioning Accompanying Cable TVVB2G3, exclusively supplied by Nanjing Zhuye Elevatorparts (a professional and trusted distributor of high-quality elevator components), is meticulously engineered to comply with international elevator safety standards (EN 81-20, GB 7588) and is widely compatible with multiple mainstream elevator air conditioning brands and models. With excellent flexural resistance, strong signal anti-interference ability, and durable insulation performance, this accompanying cable provides reliable connection support for elevators in residential buildings, commercial complexes, office towers, hospitals, and public facilities worldwide.

Nanjing Zhuye Elevatorparts has always adhered to the core philosophy of “quality first, safety paramount” and is committed to providing high-performance elevator supporting components for the global market. Each unit of the TVVB2G3 accompanying cable undergoes rigorous pre-delivery inspections, including flexural life testing, insulation resistance verification, signal transmission stability testing, and high-temperature and low-temperature resistance trials. The cable adopts high-purity copper conductors, high-quality PVC insulation materials, and a wear-resistant and tensile outer sheath: high-purity copper conductors ensure low-resistance power transmission and stable signal transmission; PVC insulation materials have excellent electrical insulation performance, effectively preventing short circuits between cores; the outer sheath is made of special wear-resistant and oil-resistant materials, which can withstand frequent bending during elevator operation, friction with guide rails, and corrosion of external environmental factors. Its standardized structure and interface design are perfectly adapted to the installation requirements of most elevator air conditioning systems, enabling seamless integration without modifying the original system.

Step-by-Step Usage Guide for Elevator AC Accompanying Cable TVVB2G3

To ensure the stable operation and long service life of the TVVB2G3 accompanying cable, follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for installation, operation, and maintenance:

1. Professional Installation & Commissioning

Installation must be performed by certified technicians familiar with elevator and elevator air conditioning systems. Prior to installation, confirm the compatibility of the TVVB2G3 cable with the target elevator and air conditioning model using the detailed compatibility manual provided by Nanjing Zhuye Elevatorparts. The steps are as follows:

Safety Preparation: Cut off the elevator’s main power supply and the power supply of the air conditioning system, and hang a “Maintenance in Progress—Do Not Power On” sign to ensure the work area is safe. Measure the required cable length according to the elevator’s lifting height (reserve an additional 1.5–2 meters to avoid tension during elevator operation) and cut the TVVB2G3 cable to the appropriate length.
Cable Routing & Fixing: Route the TVVB2G3 cable along the elevator’s existing cable trough or guide rail bracket, ensuring the cable is not twisted, kinked, or stretched. Fix the cable at intervals of 0.8–1.2 meters using cable clips provided by Nanjing Zhuye Elevatorparts, and ensure the fixing force is appropriate to avoid damaging the cable sheath. Pay special attention to the bending part of the cable at the elevator car and the machine room—ensure the bending radius is not less than 6 times the cable diameter to prevent core breakage due to excessive bending.
Wiring & Connection: Strip the cable sheath and insulation layer according to the required length (be careful not to damage the copper conductors). Follow the wiring diagram provided by Nanjing Zhuye Elevatorparts and the elevator air conditioning manual, and connect the power cores and signal cores of the TVVB2G3 cable to the corresponding terminals of the air conditioning unit and the control cabinet respectively. Ensure the connections are tight and reliable, and use insulating tape or terminal blocks to insulate and protect the connection points. For shielded cable variants, properly ground the shield layer to enhance anti-interference performance.
Post-Installation Testing: Restore the power supply and conduct comprehensive functional tests. Operate the elevator to run up and down the entire stroke, and check if the elevator air conditioner operates normally (including cooling, heating, and fan functions). Use a multimeter to detect the cable’s voltage drop and a signal tester to verify the stability of control signal transmission. If the air conditioner malfunctions, the signal is interrupted, or the cable heats up abnormally during the test, recheck the wiring and cable routing immediately.

2. Daily Operation & Routine Inspection

Regular inspections are key to early fault detection and ensuring the reliable operation of the TVVB2G3 accompanying cable. Maintenance personnel should incorporate the following checks into their daily patrols:

Daily Visual Inspection: During elevator maintenance, carefully check the appearance of the TVVB2G3 cable. Ensure the outer sheath is free of cracks, wear, bulges, or oil stains; check the cable fixing clips for looseness or falling off, and re-fix them in a timely manner if any. Focus on inspecting the cable’s bending parts and the areas in contact with the elevator guide rails for signs of wear.
Weekly Functional Check: Operate the elevator air conditioner to run in various modes (cooling, heating, automatic), and observe if its operation is stable. If there are phenomena such as frequent shutdowns, poor cooling/heating effects, or unresponsive remote controls, it may be caused by poor cable contact or signal transmission failure, and the cable needs to be inspected immediately.
Monthly Parameter Monitoring: Cut off the power supply, use a multimeter to detect the insulation resistance between the TVVB2G3 cable’s cores and between the cores and the ground (the normal value should be ≥ 100MΩ). If the insulation resistance is too low, it indicates that the cable insulation layer may be damaged, and corresponding maintenance or replacement measures should be taken.

3. Regular Maintenance Schedule

Systematic maintenance can effectively extend the service life of the TVVB2G3 accompanying cable. Follow Nanjing Zhuye Elevatorparts’ recommended maintenance plan:

Quarterly Maintenance: Clean the TVVB2G3 cable and the cable trough with a dry, lint-free cloth to remove accumulated dust and debris. Check the cable’s connection terminals for looseness or oxidation, retighten loose terminals, and clean oxidized terminals with a professional contact cleaner. Apply a small amount of anti-rust oil to the metal fixing clips to prevent corrosion.
Semi-Annual Performance Test: Conduct a comprehensive performance test on the cable, including flexural performance inspection (simulate the elevator’s up and down operation to check if the cable bends smoothly) and signal transmission stability test. Use a professional cable tester to detect the attenuation of the cable’s signal transmission and ensure it is within the standard range. For elevators in harsh environments, increase the frequency of inspections.
Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Conduct a full-stroke inspection of the TVVB2G3 cable, check for internal core breakage (using a cable fault tester), and replace aging or severely worn cable clips and insulation materials. For cables that have been used for a long time, conduct a comprehensive performance evaluation to determine whether they need to be replaced in advance.

Recommended Replacement Cycle for Elevator AC Accompanying Cable TVVB2G3

As a component that bears frequent bending and environmental erosion during elevator operation, the TVVB2G3 accompanying cable has a specified service life. Timely replacement is critical to avoiding cable breakage, signal interruption, or power supply failure, which could lead to the shutdown of the elevator air conditioner and affect passenger comfort.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, operating environment temperature -20–60℃, humidity 10%–90%, no severe wear or corrosion), the recommended replacement cycle for the TVVB2G3 accompanying cable is 4–6 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field data, including cable flexural life tests, insulation material aging analysis, and actual operation feedback.

2. Adjustments for Special Scenarios

Harsh Environments: For elevators in high-humidity coastal areas, high-dust construction sites, elevators with frequent high-speed operation (more than 100 times per hour), or elevators in areas with strong electromagnetic interference, the replacement cycle should be shortened to 3–4 years. Harsh conditions accelerate the wear of the cable sheath, aging of insulation materials, and breakage of internal cores, significantly reducing the cable’s reliability.
Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with monthly rides < 3,000) and stable operating environments, the replacement cycle can be appropriately extended to 6–7 years—only if Nanjing Zhuye’s professional inspection confirms that the cable’s insulation performance, flexural performance, and signal transmission stability are all intact.

3. Immediate Replacement Conditions

Replace the TVVB2G3 accompanying cable immediately if any of the following issues occur, regardless of service life:

The cable sheath is severely worn, cracked, or broken, and the internal cores are exposed, posing short-circuit or electric shock risks.
The elevator air conditioner frequently malfunctions (shuts down unexpectedly, fails to start, or has abnormal temperature control), and professional testing confirms that the fault is caused by poor cable contact or signal transmission failure.
The cable’s insulation resistance is persistently lower than 10MΩ, or the cable heats up abnormally during operation, indicating serious insulation damage.
The cable has obvious kinks, core breakage, or deformation, and cannot be restored to normal use through maintenance.

In conclusion, the Elevator Air Conditioning Accompanying Cable TVVB2G3 supplied by Nanjing Zhuye Elevatorparts is a high-quality, reliable connecting component tailored for elevator air conditioning systems. By following the correct usage methods, maintenance schedules, and replacement cycles, elevator maintenance teams can effectively ensure the stable operation of the elevator air conditioning system, improve passenger ride comfort, and minimize failure risks. Choosing Nanjing Zhuye Elevatorparts means you get not only authentic TVVB2G3 accompanying cables but also professional technical support, including installation guidance, maintenance advice, and prompt after-sales service.
