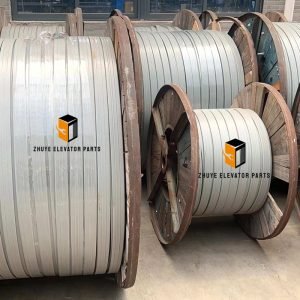

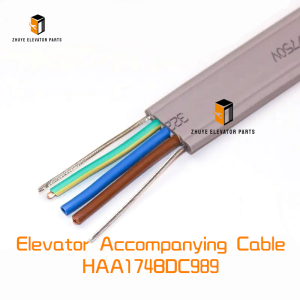

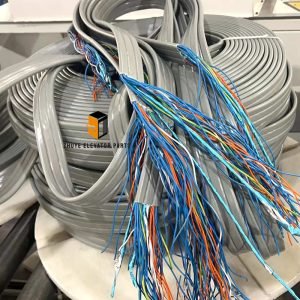

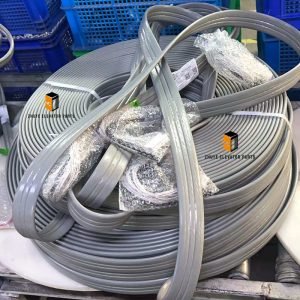

Elevator Accompanying Cable HAA174BDC989: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Elevator Accompanying Cable HAA174BDC989

1. Pre-Installation Preparation

2. Installation & Routing Steps

• Cable Routing Planning:
  • Plan the routing path along the elevator car frame and hoistway—avoid sharp edges, moving parts (e.g., door rails, counterweight cables), and high-temperature areas (e.g., near motors). The cable must have sufficient slack to accommodate the elevator’s full travel range without tension or excessive bending.
  • Use cable trays, clips, or protective sleeves to secure the cable at 50–80cm intervals—preventing sagging, twisting, or contact with abrasive surfaces. Ensure the minimum bending radius is ≥10× the cable diameter (per EN 50214 standards) to avoid conductor damage.
• Mechanical Installation:
  • Connect one end of the HAA174BDC989 to the elevator car’s control panel terminal block—match conductor colors to the wiring diagram (e.g., red/black for power, blue/green for signals) to prevent misconnection. Use cable glands to seal entry points, protecting against dust and moisture.
  • Secure the other end to the hoistway’s fixed terminal box—leave a 1–1.5m service loop at both ends to facilitate future maintenance or replacement. Avoid pulling the cable taut; maintain a natural curve to reduce stress during elevator movement.
• Functional Testing:
  • Restore power to the elevator and conduct comprehensive tests:
    • Verify power transmission: Check car lights, ventilation fans, and door motors operate normally.
    • Test signal integrity: Confirm floor selection, emergency calls, and safety interlock signals are transmitted without delay or interference.
    • Simulate full travel: Operate the elevator from the lowest to highest floor to ensure the cable moves smoothly without snagging or excessive vibration. Document test results in maintenance records.

3. Routine Usage Maintenance

• Conduct weekly visual inspections: Check for cable slack, frayed insulation, or damage at connection points and bending areas. Remove any debris or foreign objects that may rub against the cable.
• Inspect terminals quarterly: Tighten loose connections and check for corrosion—clean terminals with a dry cloth or anti-corrosion spray if needed.
• Test conductivity semi-annually using a multimeter: Verify power and signal lines have no continuity issues or resistance anomalies.
• Monitor cable movement annually: Ensure the cable does not contact sharp edges or moving parts during elevator operation—adjust routing or add protective sleeves if wear is detected.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Insulation damage: Cracked, melted, or peeling outer sheath exposing conductors—risking short circuits or electric shocks.
• Signal/power failures: Intermittent car light outages, unresponsive control buttons, or lost communication with the hoistway system—traced to cable conductivity issues.
• Mechanical damage: Fraying, kinking, or corrosion at terminals that cannot be repaired.
• Excessive wear: Visible thinning of the sheath at bending points or contact areas.
• Fire safety concerns: Burn marks or discoloration on the cable—indicating overheating or fire risk.

3. Maintenance to Extend Service Life

• Maintain the hoistway at a stable temperature (10–35°C) and low humidity (≤60%) to prevent insulation aging and corrosion.
• Avoid overloading the cable with excessive bending or tension—ensure routing adheres to the minimum bending radius.
• Protect the cable from chemical exposure (e.g., cleaning agents) and sharp edges—install protective sleeves or padding at high-wear areas.
• Use only genuine replacement parts and accessories from Nanjing Zhuye for repairs or extensions—counterfeit cables may have inferior insulation or conductor quality, leading to premature failure.

Why Choose Nanjing Zhuye Elevator Parts?

• Universal Compatibility: Engineered to work with most elevator brands and models, eliminating compatibility risks and simplifying replacement.
• Strict Quality Assurance: Each cable undergoes rigorous testing—including insulation resistance, conductivity, bending fatigue, and flame-retardant performance—to meet global safety standards.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from cable selection and routing guidance to troubleshooting transmission issues.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers cables promptly worldwide, minimizing elevator downtime during replacement.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you balance maintenance budgets and safety requirements.
