Description
Elevator AC Contactor SC-E05P
|
Product Name |
Elevator AC Contactor |
| Model Number | SC-E05P |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|

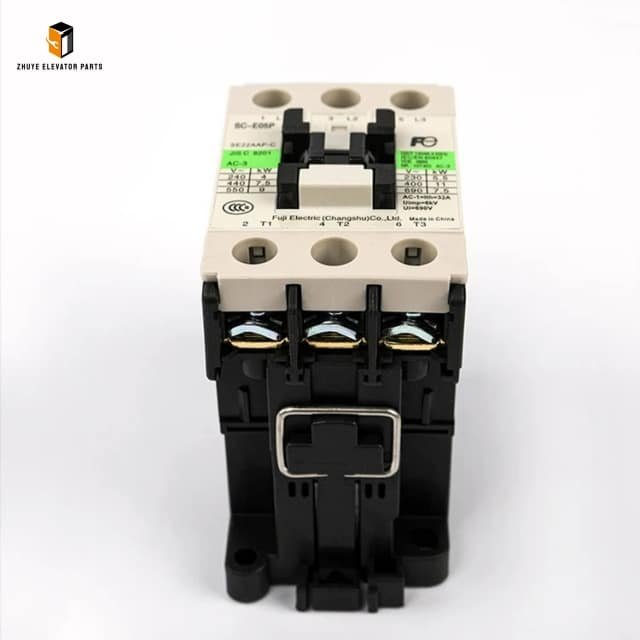

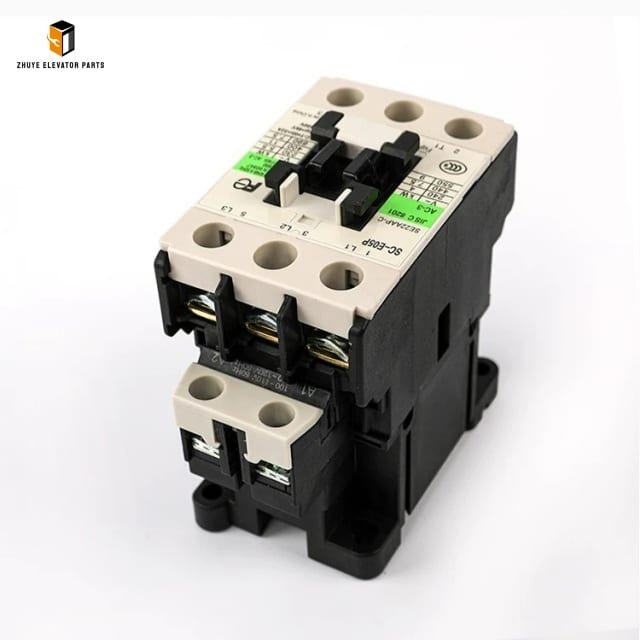

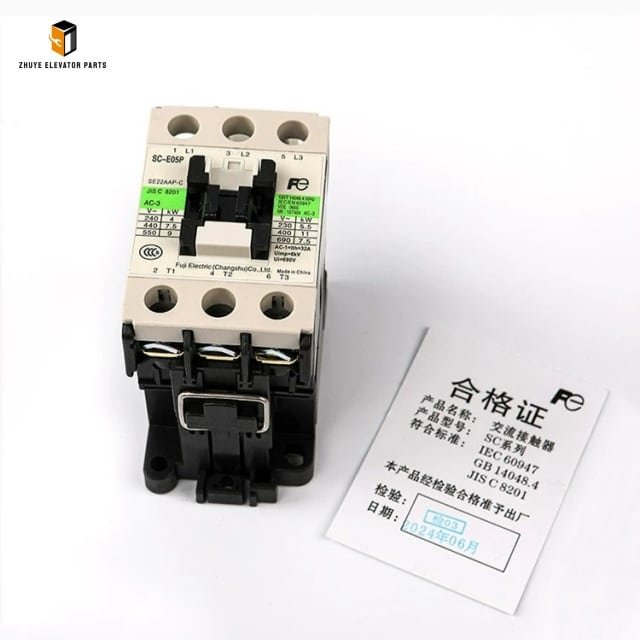

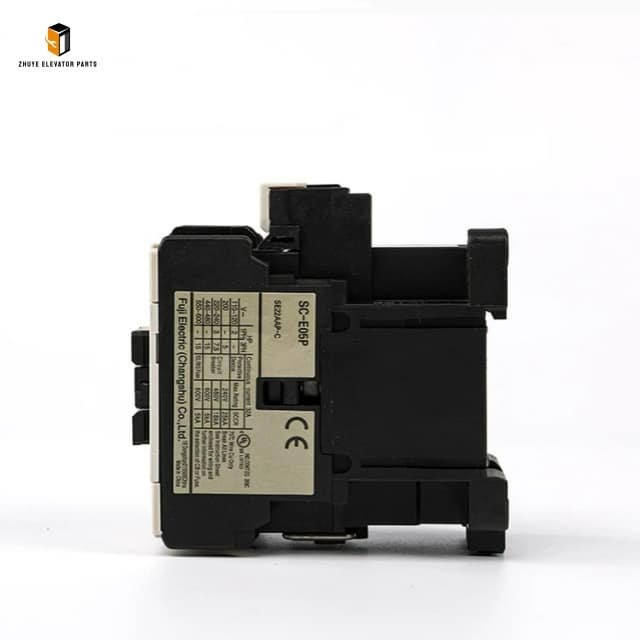

Elevator AC Contactor SC-E05P AC110V | Universal Elevator Compatibility
The Elevator AC Contactor SC-E05P AC110V is a universal industrial-grade electrical control component designed for wide compatibility with most standard elevator systems. Serving as a core power switching device in elevator electrical circuits, this high-precision AC contactor reliably controls the connection and disconnection of main power loops, door operator systems, and auxiliary electrical units. Operating stably at AC 110V rated voltage, it transmits precise electrical signals to ensure coordinated operation of elevator motors and control modules. Common faults including failed elevator startup, intermittent power cutoffs, unresponsive door system operation, and abnormal circuit tripping are mostly caused by contact ablation, spring fatigue, coil aging, and long-term arc wear on old contactors. Manufactured in line with universal elevator electrical standards and dimensional specifications, the SC-E05P AC110V acts as a standard replacement part for daily elevator maintenance, electrical system overhaul, and bulk spare part inventory for global elevator service enterprises.

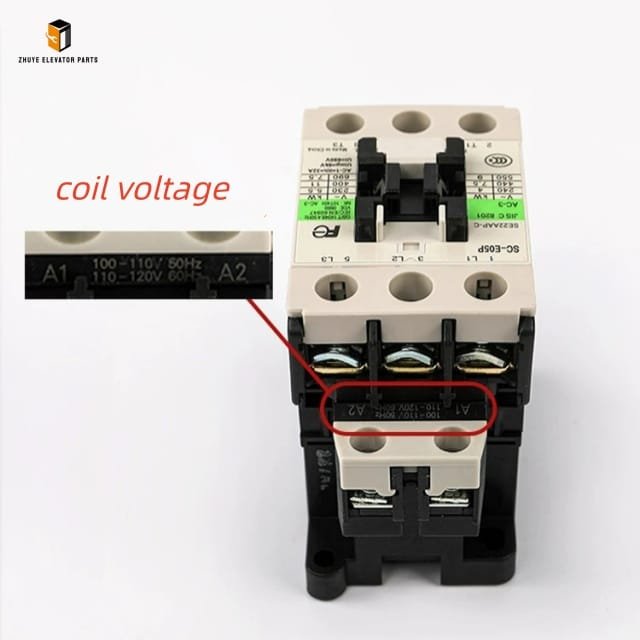

Adopting high-purity silver alloy contacts and insulated flame-retardant housing, the SC-E05P AC110V elevator AC contactor features excellent arc resistance, anti-oxidation and durable conductivity. Optimized for long-term cyclic switching operation in elevator control cabinets, it effectively resists current impact, electromagnetic interference and ambient dust erosion. With a standard AC110V coil design, the component delivers stable suction and release performance, avoiding poor contact or coil burnout caused by voltage fluctuation. All installation dimensions, wiring terminal definitions and electrical parameters comply with universal elevator industry norms, enabling plug-and-play replacement without circuit modification or complex parameter adjustment. Built-in anti-vibration structural design prevents operational failure triggered by elevator running vibration, perfectly adapting to long-duration continuous operation of residential and commercial elevators.
Standard Installation & Professional Operation Guidelines
All disassembly and installation operations for the SC-E05P AC110V elevator AC contactor must be completed by certified professional elevator electricians. Before maintenance work, completely cut off the elevator main power and control cabinet auxiliary power supply, lock the safety isolation switch, and place a prominent “Maintenance In Progress” warning sign onsite. Live-line disassembly and wiring operation are strictly prohibited to prevent electric shock, short circuit accidents and electrical component damage.
Open the elevator main control cabinet with insulated professional tools. Locate the faulty original contactor and verify model and voltage parameters to confirm full matching with SC-E05P AC110V. Disconnect main power lines, control signal wires and coil connecting cables one by one, and clearly mark each wiring terminal to avoid misconnection during reinstallation. Unscrew the fixed mounting bolts and safely remove the defective old contactor from the guide rail.
Clean the installation guide rail and terminal area thoroughly to remove dust, oxide layers and conductive debris that may cause poor contact. Secure the brand-new SC-E05P AC110V contactor firmly on the guide rail and fasten fixing bolts to prevent displacement from equipment vibration. Reconnect all cables strictly according to the marked wiring sequence and double-check terminal tightness and circuit correctness. After installation, close the control cabinet cover, restore the power supply, and conduct multiple elevator startup and running tests to verify stable power switching, no abnormal heating or tripping faults.
Scientific Replacement Cycle & Fault Replacement Standards
The service lifespan of the SC-E05P AC110V elevator contactor varies with elevator operating frequency and cabinet environment. For conventional residential and office elevators with moderate operation volume, the recommended standard replacement cycle is6 to 8 years.
For high-traffic venues such as shopping malls, hospitals and public transport buildings, or humid and dusty machine room environments, the contactor endures frequent switching and environmental corrosion. It is advisable to shorten the replacement cycle to4 to 5 years to prevent sudden circuit failure and elevator downtime.
Immediate replacement is required once abnormal symptoms occur, including poor contact conduction, frequent tripping, coil overheating, obvious arc sparking, and delayed circuit response. Timely replacement of the SC-E05P AC110V contactor eliminates hidden electrical hazards and ensures safe and stable power control for all standard elevator systems.
Reliable Supply Advantages from Our Factory
We supply brand-new factory-tested Elevator AC Contactor SC-E05P AC110V, universally compatible with most mainstream elevator models. Every product undergoes strict conductive performance testing, voltage resistance inspection and 72-hour continuous switching aging tests before shipment. We maintain sufficient in-stock inventory, support fast global cross-border logistics, and provide professional remote installation guidance. Our high-standard electrical spare parts reduce on-site maintenance difficulty, minimize elevator operational faults, and help global elevator contractors optimize service efficiency and equipment safety.
