Elevator 4.3 inch Display XBA25140AEJ999 – Usage, Replacement Cycle & Maintenance Guide
By Nanjing Zhuye Elevatorparts

Introduction

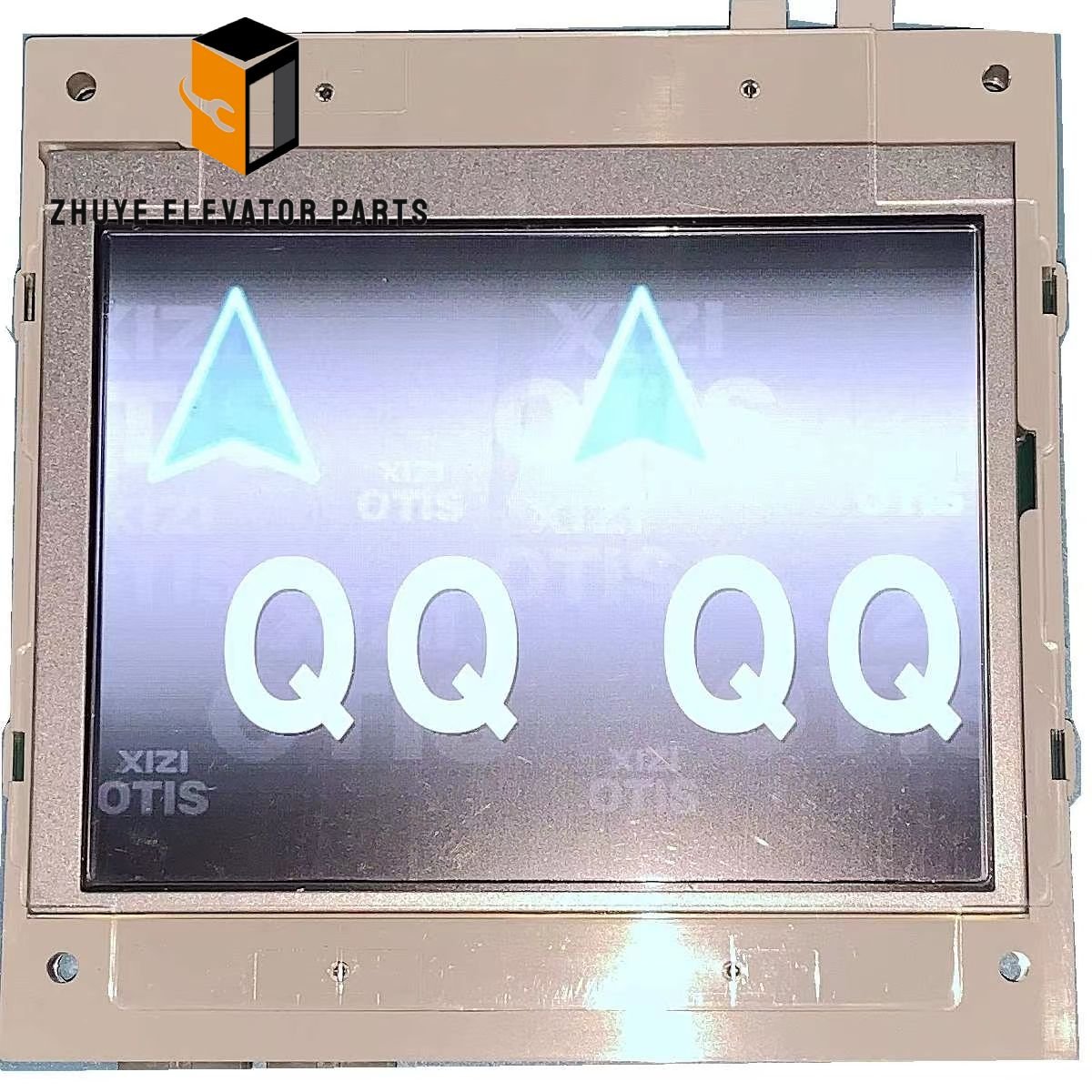

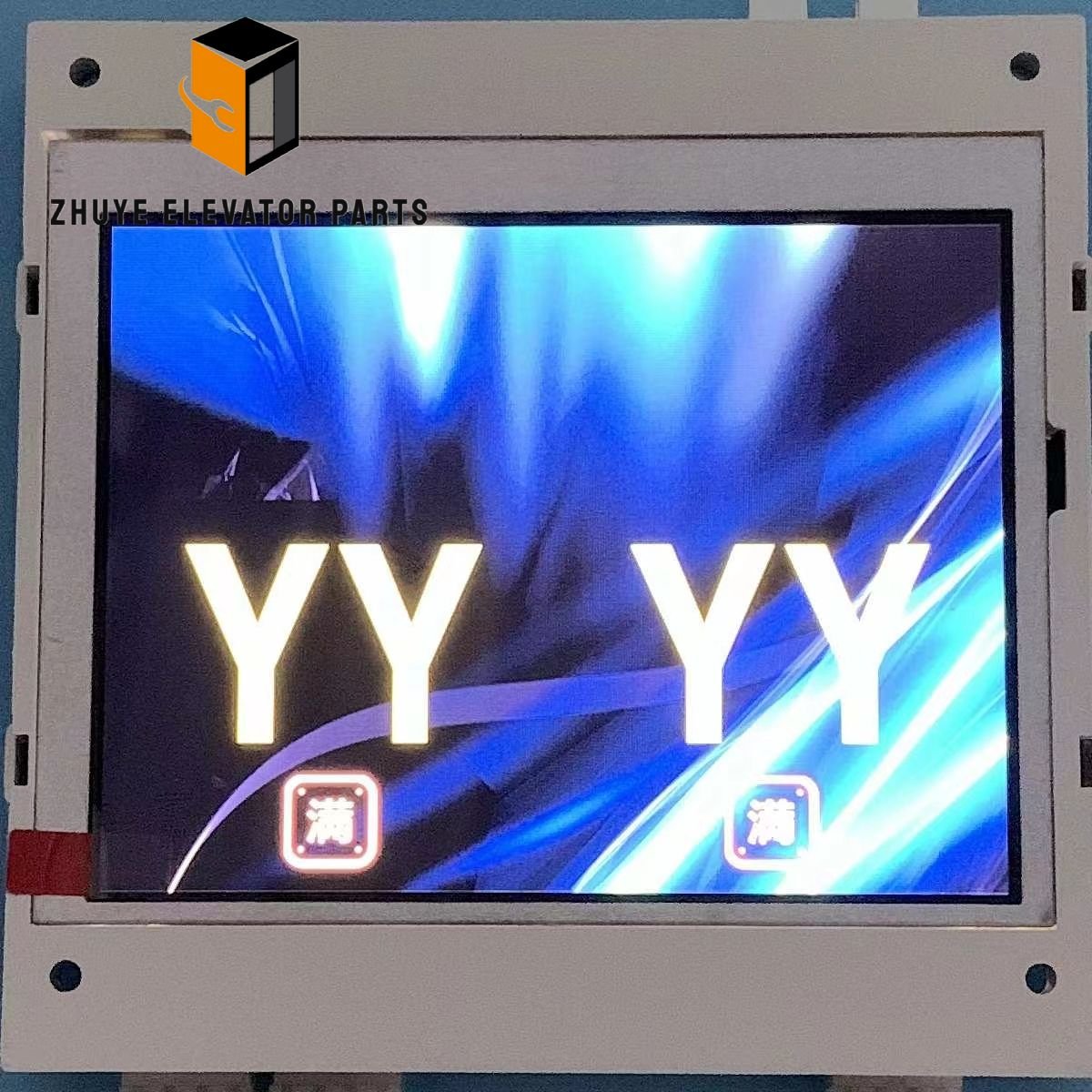

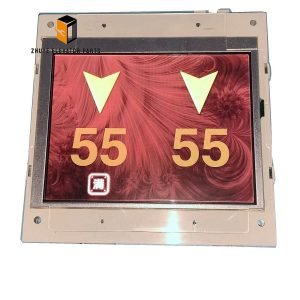

The XBA25140AEJ999 4.3-inch elevator display is a premium, high-resolution interface designed for modern elevator cars and landings. Manufactured and distributed worldwide by Nanjing Zhuye Elevatorparts, this IP54-rated unit meets EN 81-20/50, ASME A17.1 and UL standards, delivering crystal-clear floor indication, call registration, and optional multimedia content.

1. Product Highlights
– Display: 4.3-inch high-resolution LED, 1920 × 1080 px, 1000 cd/m² visible in sunlight
– Interface: RS-485, CANopen, optional Wi-Fi/4G
– Power: 24 V DC ±10 %, <8 W
– Housing: IP54 ABS, anti-UV, -20 °C to +70 °C
– Life: 50,000 h @ 25 °C, 70 % lumen maintenance

2. Installation Method
Step 1 – Preparation
De-energise the control cabinet; lock-out/tag-out and verify zero energy. Record serial number and firmware version.

Step 2 – Mounting
Position panel 1.2 m above floor, within 0.5 m of door jamb. Drill 30 mm holes for buttons; secure with M4 screws (torque 1.2 N·m).

Step 3 – Wiring
Route shielded CAT6 cable through PG9 gland. Connect:
– 24 V DC (red/black)
– RS-485 A/B (white/orange)
– Optional Wi-Fi antenna (coaxial)
Earth shield at controller only; maintain 50 mm separation from power cables.

Step 4 – Commissioning
Power-up; screen lights automatically. Teach-in floor numbers, button layouts and ad playlist via service app. Test call, cancel, and full-screen emergency message.

3. Daily & Preventive Maintenance
Daily (Building Staff)
Visual check – screen bright, no cracks or moisture.

Monthly
Wipe screen and housing with 70 % IPA; check illumination and cable tightness.

Quarterly
Measure 24 V rail (±1 V) and RS-485 signal (>2 V diff). Cycle buttons 100×; log any sticking or dim areas.

Annually
Replace desiccant pack inside enclosure. Perform full function test including fire-mode display and emergency stop.

4. Replacement Cycle & Indicators
| Duty Cycle | Replace Every | Hours | Warning Signs |
| Standard residential | 7–8 years | 50k | Brightness <70 %, >8 W draw |
| Commercial / hospital | 5–6 years | 35k | Pixel faults, IP54 failure |
| High-traffic / outdoor | 3–4 years | 25k | UV yellowing, cable fatigue |

Replace immediately if:
– Brightness <70 % of original
– Repeated “display fault” logs
– Physical damage or water ingress (IP54 compromised)

Maintain one spare **XBA25140AEJ999** per 20 cars/landings for <4-hour response.

5. Why Choose Nanjing Zhuye Elevatorparts?
• Full traceability – laser-etched serial & QR code
• Same-day global dispatch via DHL/FedEx Express
• 24/7 multilingual hotline and on-site training
• Competitive tiered pricing and custom skins for OEM projects

6. Conclusion
The XBA25140AEJ999 4.3-inch display is the passenger’s first impression of your elevator. By following the installation, testing, and replacement guidelines—and sourcing only from Nanjing Zhuye Elevatorparts—you guarantee code compliance, reduce downtime, and enhance user experience.
