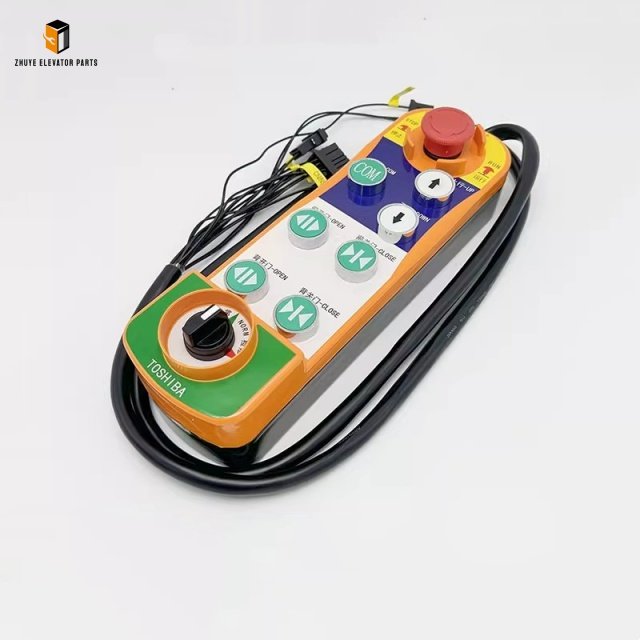

Introduction to Elevator Car Top Inspection Box 5P6L0187P016
Manufactured by NANJING ZHUYE ELEVATOR PARTS
The 5P6L0187P016 is a fully-wired, SIL 2-compliant car-top inspection station designed for modern traction and MRL elevators. Designed, assembled and 100 % function-tested by NANJING ZHUYE ELEVATOR PARTS, it meets EN 81-20/50, ASME A17.1 and GB 7588, and is CE, UL and CCC certified for worldwide installation.
- Technical Specifications
- Enclosure: 2 mm 304 stainless steel, brushed finish, IP54 front, IP20 rear
- Dimensions: 260 mm (H) × 180 mm (W) × 110 mm (D)
- Mounting: 4 × M8 rubber-damped studs, 120 × 60 mm pattern
- Supply Voltage: 24 V DC ±10 %, 5 A fused (110 V AC version optional)
- Inspection Outputs: Up, Down, Normal (3 × NO gold-plated, 5 A 250 V AC)
- Emergency Stop: 1 NC positive-opening, SIL 2 / PL c, lockable mushroom Ø 40 mm
- Service Lamp: 3 W 24 V DC LED, 300 lm, 120° beam, auto-off after 10 min
- Cable Lengths: 5 m PVC 22 AWG pre-wired; PUR or silicon optional
- Temperature Range: –25 °C to +70 °C, 95 % RH non-condensing
- Protection: IK08 impact, salt-spray 500 h per ASTM B117
- Safety & Compliance
- Positive-opening NC contact guarantees ≥ 0.5 mm break even under weld conditions.
- Dual-channel evaluation compatible – outputs galvanically isolated from supply.
- Fire-rated 90 min @ 850 °C with optional intumescent gasket.
- UV-stable materials for outdoor machine-room-less (MRL) applications.
- Human-Centred Design
- Low-profile 110 mm depth clears restricted overhead beams.
- Braille and high-contrast icons comply with ADA and EN 81-70.
- LED status ring (green = normal, red = inspection, amber = fault) for instant diagnostics.
- Tool-free front frame: lamp or contact block replaced in < 30 s.
- Energy Efficiency
- Entire station consumes < 2 W in standby; LED lamp < 0.5 W average.
- Auto-dimming lamp reduces battery load during rescue operation.
- Installation & Compatibility
- Plug-in terminal blocks, colour-coded for Up/Down/Normal/Stop/Lamp.
- Universal 120 × 60 mm footprint matches OTIS, KONE, Schindler, Thyssen, Mitsubishi COP extrusions.
- Optional M12 or Deutsch 5-pin quick-connect for vibration-prone headers.
- Typical Applications
- High-speed passenger elevators ≤ 4 m/s
- Hospital bed lifts requiring ADA compliance
- Freight elevators with frequent top-car access
- Modernisation of existing dot-matrix or filament-bulb stations
- After-Sales Support
NANJING ZHUYE ELEVATOR PARTS provides:
- 5-year worldwide warranty
- 24-hour technical hotline
- Next-day global spare-part dispatch
- Free PC and mobile commissioning toolkit
Custom legends, voltage variants or special connectors ship within 7 working days.
- Conclusion
Specifying the 5P6L0187P016 car-top inspection box from NANJING ZHUYE ELEVATOR PARTS delivers code-compliant safety, ergonomic operation and maintenance-free reliability—reducing downtime while protecting passengers and technicians in every vertical-transportation system.
