Elevator Belt Pulley F9: Usage, Replacement Cycle & Maintenance Guide
By Nanjing Zhuye Elevatorparts
Introduction

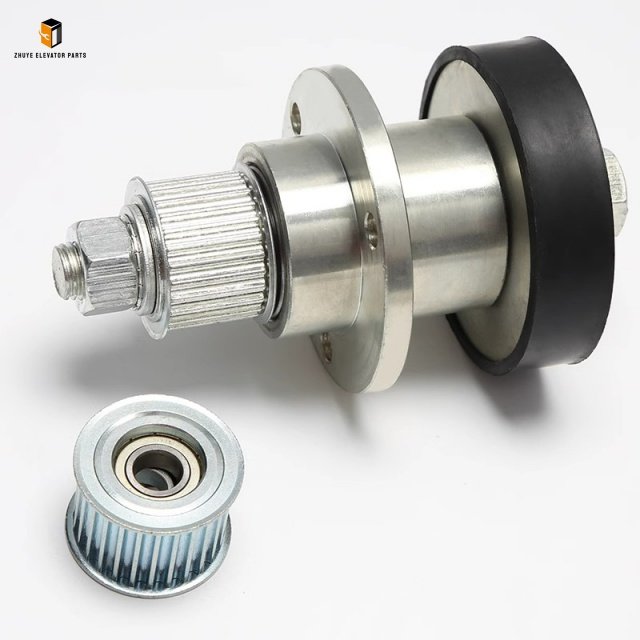

The F9 elevator belt pulley is a critical component designed to ensure smooth and reliable door operation in elevator systems. Manufactured by Nanjing Zhuye Elevatorparts, a globally recognized supplier of high-quality elevator components, this pulley is engineered to provide durable performance and meet international safety standards. Below, we outline its proper usage, replacement cycle, and maintenance protocols to optimize performance and ensure passenger safety.
Key Features of F9
- High-Durability Material: Made from high-quality steel with a durable coating to resist wear and corrosion.
- Precision Engineering: Designed to fit standard elevator door systems with precise alignment and smooth operation.
- Low Noise Operation: Ensures quiet and efficient door movement, enhancing passenger comfort.
- Robust Construction: Resistant to environmental factors such as dust and moisture.
- Easy Installation: Compatible with most elevator door systems, ensuring quick and hassle-free replacement.
Usage Guidelines
1. Installation
- Preparation: Ensure the elevator car is de-energized and locked out to prevent accidental operation during installation.
- Positioning: Align the pulley with the door operator mechanism, ensuring it is properly seated and secured.
- Mounting: Use the provided mounting hardware to secure the pulley to the door operator frame. Ensure all bolts are tightened to the specified torque.
- Testing: Perform a series of door opening and closing tests to verify smooth operation and proper alignment.
2. Operation
- Initial Testing: After installation, perform a series of door opening and closing tests to verify smooth operation.
- Monitoring: Regularly check the pulley for any unusual noises, such as squeaking or grinding, which may indicate improper alignment or wear.
- Safety Checks: Ensure the emergency stop function is operational and that the doors close fully without obstruction.
3. Safety Protocols
- Lockout/Tagout: Always de-energize the elevator system before performing any maintenance or installation tasks.
- Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves and safety glasses, when working with the belt pulley.
- Training: Ensure that all technicians are trained in the proper use and maintenance of the pulley.
Replacement Cycle & Maintenance
Replacement Interval
- Standard Usage: Replace every 5–7 years or after 1 million door cycles, whichever comes first.
- High-Traffic Environments (e.g., commercial buildings, hospitals): Replace every 3–4 years.
- Early Warning Signs:
- Visible wear or damage to the pulley surface
- Increased noise during door operation
- Door misalignment or jerky movement
Maintenance Checklist
- Monthly:
- Inspect the pulley for signs of wear, fraying, or damage.
- Clean the pulley with a dry cloth to remove dust and debris.
- Quarterly:
- Check the pulley’s mounting bolts and tighten if necessary.
- Verify that the pulley operates smoothly without excessive vibration.
- Annually:
- Perform a full functionality test, including door speed and alignment.
- Replace the pulley if any signs of wear or damage are detected.
Why Choose Nanjing Zhuye Elevatorparts?
- Quality Assurance: All belt pulleys undergo rigorous testing to ensure durability and reliability.
- Global Support: 24/7 technical assistance and fast shipping to 60+ countries.
- Cost Efficiency: Competitive pricing with bulk discounts for OEMs and maintenance companies.
Conclusion
The F9 elevator belt pulley is essential for ensuring smooth and safe door operation in elevator systems. By following the usage and maintenance guidelines above, facility managers and technicians can reduce downtime and ensure compliance with safety standards. For genuine parts and expert support, trust Nanjing Zhuye Elevatorparts—your partner in elevator safety and reliability.
