Description

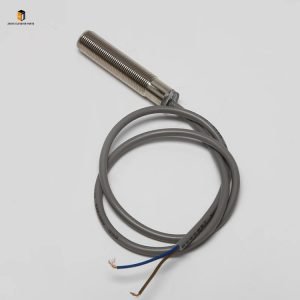

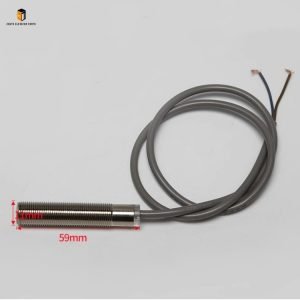

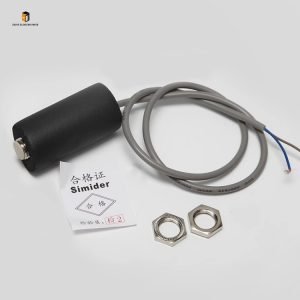

Elevator leveling sensor magnetic switch SFL12A-55 Brief Introduction

Product Name	Elevator leveling sensor magnetic switch
Model Number	SFL12A-55
Quality	Original.Brand New
Payment	T/T. Paypal. Western Union
Delivery	3-5 Working Days
Packaging	Packed by carton

Elevator Leveling Sensor Magnetic Switch SFL12A-55: Precise Detection Core from Nanjing Zhuye Elevatorparts

Elevator Leveling Sensor Magnetic Switch SFL12A-55 is a key detection component for elevator leveling systems, responsible for transmitting accurate position signals to the elevator controller when the elevator car reaches the target floor. This magnetic switch adopts a non-contact detection design, featuring high response speed, strong anti-interference capability, and stable performance, making it widely compatible with mainstream elevator brands and leveling magnetic strip systems. It is extensively applied in residential buildings, commercial complexes, office towers, airports, and industrial elevators, ensuring the elevator stops precisely at the landing floor to enhance passenger ride comfort and safety. Exclusively supplied by Nanjing Zhuye Elevatorparts, a professional and trusted provider of high-quality elevator electrical components, this Elevator Leveling Sensor Magnetic Switch SFL12A-55 fully complies with international elevator safety standards (EN 81-20, GB 7588) and electrical switch technical specifications (IEC 60947). Crafted with premium electronic components and precision manufacturing technology, it delivers long service life and reliable operation, winning recognition from global elevator maintenance teams.

Nanjing Zhuye Elevatorparts adheres to the core philosophy of “Precise Detection, Stable Transmission” and implements strict quality control throughout the production and inspection process of the SFL12A-55 magnetic switch. Each unit undergoes multi-stage pre-delivery inspections, including response time testing, magnetic sensitivity verification, high-temperature and humidity resistance detection, and anti-interference performance testing. The switch adopts advanced materials and technology: the internal core uses high-sensitivity Hall effect components, with a response time of ≤ 10ms to ensure timely signal transmission; the shell is made of flame-retardant engineering plastic (UL94 V0 grade) with IP67 protection rating, effectively resisting humidity, dust, and electromagnetic interference in elevator shafts (-20℃ to 80℃); the standardized pin and mounting structure enable seamless matching with elevator control systems and guide rails, simplifying installation and replacement processes.

Step-by-Step Usage Guide for Elevator Leveling Sensor Magnetic Switch SFL12A-55

To maximize the detection accuracy, service life, and operational stability of the Elevator Leveling Sensor Magnetic Switch SFL12A-55, strictly follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for selection, installation, and maintenance:

1. Professional Selection & Installation

Installation must be conducted by certified elevator technicians proficient in leveling systems. Prior to installation, refer to the compatibility manual provided by Nanjing Zhuye Elevatorparts to confirm that the SFL12A-55 magnetic switch matches the elevator’s leveling magnetic strip (e.g., 250*20*8), control system voltage (DC 24V), and signal interface. The installation steps are as follows:

Safety Preparation: Cut off the elevator’s main power supply and lock the power switch to prevent accidental power-on. Use a hoisting device to stabilize the elevator car at the maintenance position and fix it with mechanical supports. Clean the mounting surface (elevator car frame or guide rail bracket) to remove dust, oil stains, and debris.
Position Marking: According to the elevator’s leveling parameter requirements and Nanjing Zhuye Elevatorparts’ installation guidelines, mark the mounting position of the SFL12A-55 sensor. Ensure the sensor’s detection surface is aligned with the leveling magnetic strip (alignment deviation ≤ 2mm) and the distance between the sensor and magnetic strip is 5–12mm (consistent with the sensor’s detection range).
Sensor Installation: Fix the SFL12A-55 magnetic switch on the marked position using stainless steel bolts provided by Nanjing Zhuye Elevatorparts. Connect the sensor’s signal wires to the elevator controller according to the wiring diagram (distinguish between power supply, signal input, and ground wires to avoid wrong connection). Fasten the wire harness with cable ties to prevent it from being squeezed or worn by moving parts.

2. Debugging & Function Test

Debugging and function testing are crucial to ensuring the precise detection of the SFL12A-55 magnetic switch. Follow these steps with reference to Nanjing Zhuye Elevatorparts’ technical guidelines:

Power-On Inspection: Restore the elevator’s power supply and check if the SFL12A-55 sensor’s indicator light is on normally (green light for power-on, red light for signal detection). If the indicator light is off or flickering, recheck the power supply and wiring connections immediately.
Leveling Accuracy Test: Switch the elevator to inspection mode and operate it to run up and down. When the elevator car passes the leveling magnetic strip, confirm the sensor transmits the signal to the controller in a timely manner, and the elevator stops precisely at the landing floor (the gap between the car floor and landing floor ≤ 3mm). Repeat the test 15 times for each floor to ensure stable detection without deviation.
Anti-Interference Test: Simulate the harsh electromagnetic environment in the elevator shaft (e.g., turn on other electrical components) to test the sensor’s performance. Ensure the SFL12A-55 does not generate false signals and the elevator’s leveling accuracy is not affected.

3. Daily Operation & Routine Maintenance

Regular inspection and maintenance are essential to early fault detection and ensuring the long-term stable operation of the SFL12A-55 magnetic switch. Maintenance personnel should integrate the following checks into their daily patrol routines:

Daily Visual Inspection: During elevator patrols, check the external condition of the sensor. Ensure the shell is free of deformation, cracks, or corrosion; the indicator light works normally; the wire harness is intact without aging, wear, or loose connections. Clean the sensor’s detection surface and the matching magnetic strip with a soft, dry cloth to remove dust and debris.
Weekly Signal Detection: Use a multimeter to test the sensor’s output signal voltage. Confirm the voltage changes stably when the sensor detects the magnetic strip (consistent with the technical parameters provided by Nanjing Zhuye Elevatorparts). If the signal is unstable or missing, adjust the sensor’s position or check the magnetic strip’s magnetic performance.
Monthly Comprehensive Inspection: Cut off the power supply and remove the sensor to check for internal component damage. Recheck the mounting position and gap between the sensor and magnetic strip, and adjust if deviation is found. Apply a thin layer of anti-rust oil to the mounting bolts to prevent corrosion.

Recommended Replacement Cycle for Elevator Leveling Sensor Magnetic Switch SFL12A-55

As a core electronic detection component enduring long-term environmental erosion (humidity, dust, temperature changes), electromagnetic interference, and frequent signal transmission, the SFL12A-55 magnetic switch has a specified service life. Timely replacement is critical to avoiding faults such as delayed signal transmission, inaccurate detection, or signal loss—issues that may lead to elevator leveling deviation, frequent adjustment failures, or even safety risks during passenger boarding and alighting.

1. Standard Replacement Cycle

Under normal operating conditions (elevator daily operation time 12–24 hours, daily leveling cycles ≥ 2000, shaft environment temperature -20–80℃, humidity 10%–95%), the recommended replacement cycle for the SFL12A-55 magnetic switch is 4–6 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field operation data, component aging tests, and global user feedback on elevator leveling systems.

2. Adjustments for Special Scenarios

Harsh Environments & High-Traffic Scenarios: For elevators in high-humidity coastal areas (salt spray corrosion), high-dust industrial sites, or ultra-high-traffic locations (e.g., large airports, central shopping malls) with daily leveling cycles ≥ 3500, the replacement cycle is shortened to 2–3 years. Harsh conditions accelerate the aging of internal electronic components and the corrosion of external shells.
Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and stable shaft environments (constant temperature and humidity), the replacement cycle can be extended to 6–7 years—only if Nanjing Zhuye Elevatorparts’ professional technicians conduct an inspection and confirm that the sensor’s response speed, signal stability, and detection accuracy meet the original factory standards.

3. Immediate Replacement Conditions

Replace the SFL12A-55 elevator leveling sensor magnetic switch immediately if any of the following issues occur, regardless of its service life:

The sensor fails to detect the magnetic strip, leading to elevator overshooting or undershooting (leveling deviation > 5mm) and frequent leveling adjustment failures.
The output signal is unstable or interrupted, causing the elevator controller to display frequent leveling error codes and affecting normal operation.
The sensor’s indicator light is off or flickering abnormally, and the fault persists after checking the power supply and wiring.
The shell is severely corroded or damaged, exposing internal components, which may cause short circuits or signal interference.

In conclusion, the Elevator Leveling Sensor Magnetic Switch SFL12A-55 supplied by Nanjing Zhuye Elevatorparts is a high-quality, reliably compatible detection component tailored for modern elevator systems. By adhering to the correct usage methods, maintenance schedules, and replacement cycles outlined above, elevator maintenance teams can effectively ensure the precise and stable leveling of elevators, enhance passenger ride comfort, and minimize downtime. Choosing Nanjing Zhuye Elevatorparts means you not only get 100% authentic SFL12A-55 magnetic switches but also access to professional technical support—including model matching guidance, on-site installation and debugging advice, and prompt after-sales service. Trust Nanjing Zhuye Elevatorparts for the precise detection of your elevator system.
