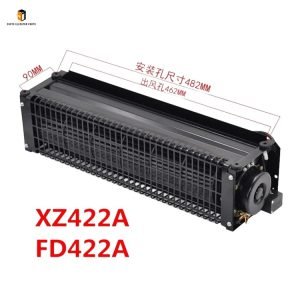

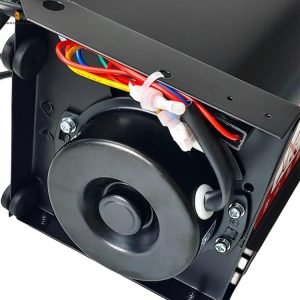

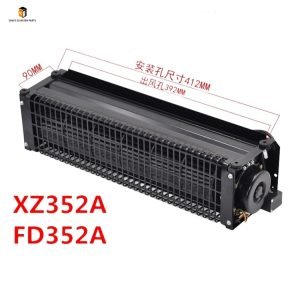

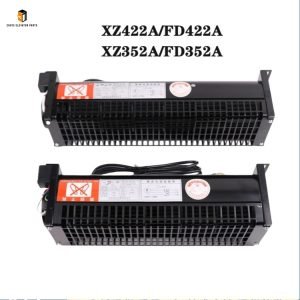

Elevator Lift Cross Flow Fan XZ422A XZ352A FD198A Brief Introduction
|
Product Name |
Elevator Lift Cross Flow Fan |
| Model Number | XZ422A
XZ352A FD198A |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Elevator Lift Cross Flow Fan XZ422A: Ventilation Core from Nanjing Zhuye Elevatorparts
Elevator Lift Cross Flow Fan XZ422A is a critical ventilation and heat dissipation component for elevator systems, specifically designed to circulate air in the elevator car and cool the elevator control cabinet. As the “air circulation engine” of elevators, it ensures a comfortable and fresh air environment for passengers by promoting air flow, and prevents overheating of electrical components in the control cabinet to maintain stable operation. Exclusively supplied by Nanjing Zhuye Elevatorparts (a professional and trusted distributor of high-quality elevator components), the Elevator Lift Cross Flow Fan XZ422A fully complies with international safety and quality standards (IEC 60335, GB 4706) and is compatible with mainstream elevator brands and car/control cabinet models. Featuring low noise operation, high air volume, and durable structure, this cross flow fan provides reliable ventilation and heat dissipation guarantees for elevators in residential buildings, commercial complexes, office towers, hospitals, and other scenarios worldwide.
Nanjing Zhuye Elevatorparts adheres to the core philosophy of “safety first, quality-oriented” and implements strict quality control over the Elevator Lift Cross Flow Fan XZ422A. Each fan undergoes multi-stage pre-delivery inspections, including air volume testing, noise level verification, motor performance detection, and durability trials. The product adopts a high-efficiency brushless DC motor, a precision-machined impeller, and a flame-retardant ABS plastic shell: the brushless DC motor ensures low power consumption (rated power ≤ 30W) and long service life (≥ 10,000 hours of continuous operation); the precision impeller is optimized for air duct design, providing stable air volume (≥ 200m³/h) while keeping noise ≤ 45dB; the flame-retardant ABS shell has good insulation and corrosion resistance, adapting to the confined and humid environment in the elevator car and control cabinet. Its standardized mounting dimensions and interface design are tailored to match the dedicated mounting positions of compatible elevators, eliminating the need for complex modifications and ensuring quick installation.
Step-by-Step Usage Guide for Elevator Lift Cross Flow Fan XZ422A
To ensure the reliable operation of the elevator’s ventilation and heat dissipation system and extend the service life of the XZ422A cross flow fan, follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for installation, debugging, and maintenance:
1. Professional Installation & Debugging
Installation must be performed by certified elevator technicians familiar with elevator electrical systems. Prior to installation, confirm the compatibility of the XZ422A fan with the target elevator’s car size and control cabinet structure using the detailed compatibility manual provided by Nanjing Zhuye Elevatorparts. The steps are as follows:
-
Safety Preparation: Cut off the elevator’s main power supply and the power supply of the car/control cabinet. For car-mounted fans, fix the elevator car to a safe position aligned with the floor using a safety clamp; for control cabinet-mounted fans, open the control cabinet door and clean the mounting area to remove dust, oil stains, and debris that may affect installation and air circulation.
-
Fan Installation: Fix the XZ422A cross flow fan to the dedicated mounting bracket using high-strength screws provided by Nanjing Zhuye Elevatorparts. Ensure the fan is installed in the correct direction (air outlet aligned with the designated ventilation area) and tightly fitted to avoid air leakage. Connect the fan’s power terminal (rated voltage: 24VDC/110VDC, optional) to the elevator power supply according to the wiring diagram, ensuring correct polarity and tight connections.
-
Operation Debugging: Restore the power supply and switch the elevator to inspection mode. Turn on the fan and check if it operates smoothly without abnormal noise or vibration. Use an anemometer to detect the air volume at the air outlet to ensure it meets the standard (≥ 200m³/h). For car-mounted fans, verify that the air circulation in the car is uniform; for control cabinet-mounted fans, check if the temperature in the cabinet decreases steadily.
-
Post-Installation Testing: Conduct comprehensive functional tests under different working conditions. Operate the elevator normally for 1–2 hours and monitor the fan’s operating status and noise level; simulate high-load operation of the control cabinet to verify the fan’s heat dissipation effect. If the fan has abnormal noise, low air volume, or fails to start, recheck the installation and wiring immediately.
2. Daily Operation & Routine Inspection
Regular inspections are crucial to early detection of fan faults and ensuring the normal operation of the elevator’s ventilation and heat dissipation system. Maintenance personnel should incorporate the following checks into their daily patrols:
-
Daily Visual Inspection: During car and control cabinet inspections, check the external state of the XZ422A fan. Ensure the ABS shell is free of cracks, deformation, or damage; the power cord is intact with no aging, cracking, or loose connections; the air inlet and outlet are free of blockages by dust, debris, or other foreign objects.
-
Weekly Functional Check: Turn on the fan and listen for abnormal noise (such as rattling or squeaking) during operation. Check the fan’s vibration amplitude (should be ≤ 2mm/s) to avoid affecting elevator operation. For control cabinet-mounted fans, use an infrared thermometer to detect the temperature in the cabinet to ensure the fan’s heat dissipation effect is normal.
-
Monthly Parameter Monitoring: Turn off the power supply and clean the fan’s air inlet, outlet, and impeller with a dry, lint-free cloth or a soft brush to remove accumulated dust (dust affects air volume and heat dissipation). Check the tightness of the mounting screws and power terminals to prevent loosening due to vibration. For elevators in harsh environments (high humidity, high dust), check the fan for moisture or corrosion.
3. Regular Maintenance Schedule
Systematic maintenance can effectively extend the service life of the Elevator Lift Cross Flow Fan XZ422A. Follow Nanjing Zhuye Elevatorparts’ recommended maintenance plan:
-
Quarterly Maintenance: Disconnect the power supply and remove the fan from the mounting bracket. Thoroughly clean the shell, impeller, and air duct with a professional cleaner. Inspect the fan motor for signs of overheating (discoloration) and the bearing for wear (add a small amount of special lubricant if necessary, recommended by Nanjing Zhuye Elevatorparts). Reinstall the fan and recheck its operation status and air volume.
-
Semi-Annual Performance Test: Conduct a comprehensive performance test, including air volume, noise level, and motor operating current. Use a professional air volume tester and noise meter to verify that the parameters meet the standard; use a multimeter to detect the motor current (should be within the rated range). For elevators in high-traffic areas (e.g., shopping malls, airports) or harsh environments (high humidity, heavy dust), increase the test frequency.
-
Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Replace aging components (such as motor, bearing, or power cord) with genuine parts. Check the matching ventilation ducts and grilles for blockage or damage and clean or replace them if necessary. Recalibrate the fan’s installation position to ensure optimal ventilation and heat dissipation effect.
Recommended Replacement Cycle for Elevator Lift Cross Flow Fan XZ422A
As a core ventilation and heat dissipation component bearing long-term operation, dust accumulation, and environmental erosion, the Elevator Lift Cross Flow Fan XZ422A has a specified service life. Timely replacement is critical to avoiding fan failure (such as reduced air volume, increased noise, or motor burnout), which may lead to poor air quality in the car affecting passenger comfort, or overheating of control cabinet components causing elevator operation failure.
1. Standard Replacement Cycle
Under normal operating conditions (elevator daily operation time 12–24 hours, fan continuous operation rate ≥ 80%, environment temperature -10–60℃, humidity 10%–95%), the recommended replacement cycle for the Elevator Lift Cross Flow Fan XZ422A is 3–4 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field data, including motor life tests, impeller wear analysis, and actual operation feedback.
2. Adjustments for Special Scenarios
-
Harsh Environments: For elevators in high-humidity coastal areas (moisture erosion), high-dust construction sites, or elevators with long-term high-load operation (fan continuous operation 24 hours a day), the replacement cycle should be shortened to 2–3 years. Harsh conditions accelerate the aging of the motor, corrosion of the shell, and accumulation of dust on the impeller, significantly reducing the fan’s performance and service life.
-
Low-Frequency Use Scenarios: For elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and clean, stable environments, the replacement cycle can be extended to 4–5 years—only if Nanjing Zhuye’s professional inspection confirms that the fan’s air volume, noise level, and motor performance are all intact.
3. Immediate Replacement Conditions
Replace the Elevator Lift Cross Flow Fan XZ422A immediately if any of the following issues occur, regardless of service life:
-
The fan’s air volume is reduced by more than 30% (compared to the standard 200m³/h) and cannot be restored through cleaning and maintenance, resulting in poor ventilation in the car or insufficient heat dissipation in the control cabinet.
-
The fan operates with excessive noise (＞60dB) or severe vibration, affecting passenger comfort or causing resonance in the elevator car/control cabinet.
-
The motor is burned out (no operation when powered on) or the bearing is stuck, confirmed by professional testing, leading to complete failure of the fan.
-
The fan’s shell is severely cracked, deformed, or corroded, and the impeller is damaged, making maintenance ineffective and posing potential safety hazards.
In conclusion, the Elevator Lift Cross Flow Fan XZ422A supplied by Nanjing Zhuye Elevatorparts is a high-quality, high-reliability ventilation and heat dissipation component tailored for elevator systems. By following the correct usage methods, maintenance schedules, and replacement cycles, elevator maintenance teams can effectively ensure the stable operation of the elevator’s ventilation and heat dissipation system, improve passenger ride comfort, and minimize failure risks. Choosing Nanjing Zhuye Elevatorparts means you get not only authentic XZ422A cross flow fans but also professional technical support, including model matching guidance, installation advice, and prompt after-sales service.
