Description

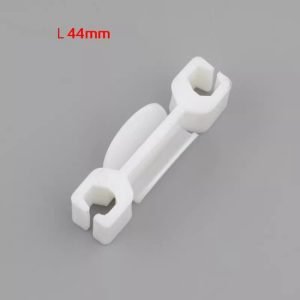

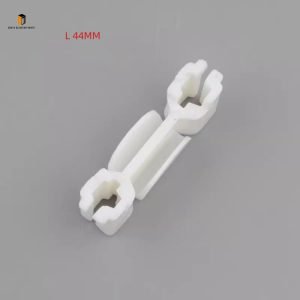

Kone Elevator Slider Elevator Landing Door Slider Brief Introduction
|
Product Name |
Kone Elevator Slider |
| Model Number | Elevator Landing Door Slider |
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Kone Elevator Landing Door Slider: Stable Guiding Core from Nanjing Zhuye Elevatorparts
The Kone Elevator Landing Door Slider is a critical guiding and buffering component exclusively designed for Kone elevator landing door systems. As the “silent guide” of elevator landing doors, it supports the door panel and ensures smooth, stable sliding along the door rail during opening and closing, reducing friction and noise while preventing door deviation or jamming. The Kone Elevator Landing Door Slider, exclusively supplied by Nanjing Zhuye Elevatorparts (a professional and trusted distributor of high-quality elevator components), fully complies with Kone’s original factory standards and international elevator safety norms (EN 81-20, GB 7588). It is perfectly compatible with mainstream Kone elevator models (such as Kone MonoSpace, MiniSpace, and TranSys series). Featuring high wear resistance, excellent buffering performance, and precise dimension matching, this slider provides reliable operational guarantees for Kone elevators in residential buildings, commercial complexes, office towers, hospitals, and other buildings worldwide.
Nanjing Zhuye Elevatorparts adheres to the core philosophy of “safety first, quality-oriented” and implements strict quality control over the Kone Elevator Landing Door Slider. Each slider undergoes a multi-stage pre-delivery inspection, including wear resistance testing, compatibility verification with Kone models, buffering performance trials, and environmental resistance detection. The product adopts high-quality engineering plastic (PA66+GF30) as the main material, with a built-in metal reinforcement insert: the PA66+GF30 material has excellent wear resistance and impact toughness, ensuring long-term use without deformation; the embedded metal insert enhances structural stability, bearing the weight of the landing door panel stably; its dimensions are precisely machined according to Kone’s original drawings, ensuring seamless fit with Kone landing door rails and door panels. The slider’s surface is specially treated to reduce the friction coefficient to ≤ 0.06, further improving the smoothness of door operation.
Step-by-Step Usage Guide for Kone Elevator Landing Door Slider
To ensure the reliable operation of Kone elevator landing door systems and extend the service life of the landing door slider, follow the professional guidelines provided by Nanjing Zhuye Elevatorparts for installation, adjustment, and maintenance:
1. Professional Installation & Calibration
Installation must be performed by certified technicians familiar with Kone elevator systems. Prior to installation, confirm the compatibility of the slider with the specific Kone elevator model using the detailed compatibility manual provided by Nanjing Zhuye Elevatorparts. The steps are as follows:
-
Safety Preparation: Cut off the elevator’s main power supply and the power supply of the landing door system, and hang a “Maintenance in Progress—Do Not Power On” sign at the power switch. Fix the elevator car to a safe position using a safety clamp. Locate the landing door slider mounting positions (usually 2–4 sliders per landing door, installed at the top and bottom of the door panel) and clean the door rail, mounting groove, and door panel contact area to remove dust, oil stains, and debris.
-
Slider Installation: Remove the old slider (if replacing) by loosening the fixing clips or screws on the landing door panel. Align the new Kone landing door slider with the mounting groove on the door panel, ensuring the slider’s groove is perfectly matched with the landing door rail. Press the slider firmly into the groove until it clicks into place (for clip-type installation) or tighten the fixing screws with a torque wrench to 5–8 N·m (for screw-type installation). Ensure all sliders are installed symmetrically to ensure balanced force on the door panel.
-
Gap Calibration: After installation, manually push the landing door to open and close repeatedly to check if the sliders slide smoothly (no jamming or abnormal noise). Use a feeler gauge to detect the gap between the slider and the door rail (standard gap: 0.1–0.3mm). If the door is deviated or the slider slides unsmoothly, adjust the position of the mounting groove according to Nanjing Zhuye’s technical guidance. Ensure the door panel is parallel to the door sill after adjustment.
-
Post-Installation Testing: Restore the power supply and conduct comprehensive functional tests. Operate the landing door to open and close automatically at normal speed, check the slider’s operation status (no slipping or stagnation); measure the operation noise (normal value ≤ 48dB); verify the door’s opening/closing accuracy (no deviation from the door sill or failure to close tightly). If there is abnormal noise, jamming, or deviation, recheck the installation position and gap immediately.
2. Daily Operation & Routine Inspection
Regular inspections are crucial to early detection of slider faults and ensuring the safety of Kone elevator landing door systems. Maintenance personnel should incorporate the following checks into their daily patrols:
-
Daily Visual Inspection: During on-site patrols, check the external state of the Kone landing door sliders through the landing door observation gap. Ensure the slider is free of cracks, deformation, or severe wear (wear depth ≤ 1mm); the fixing clips/screws are tight with no looseness; the slider’s groove is free of debris accumulation that may affect sliding.
-
Weekly Functional Check: Operate the landing door to open and close multiple times, listen for abnormal noise (such as friction or creaking) from the slider area. Check if the landing door opens and closes in place (no overshoot or incomplete closure). If there is abnormal noise or door deviation, inspect the slider’s wear and rail contact status immediately.
-
Monthly Parameter Monitoring: Use a caliper to measure the slider’s key dimensions (groove width, thickness) to confirm no excessive wear or deformation. Clean the slider’s surface and door rail with a dry, lint-free cloth to remove dust and oil stains. For elevators in harsh environments, apply a small amount of special lubricant (recommended by Nanjing Zhuye Elevatorparts) to the slider’s groove to reduce wear.
3. Regular Maintenance Schedule
Systematic maintenance can effectively extend the service life of the Kone Elevator Landing Door Slider. Follow Nanjing Zhuye Elevatorparts’ recommended maintenance plan:
-
Quarterly Maintenance: Disconnect the power supply, remove the landing door sliders by loosening the fixing clips/screws. Clean the slider’s groove and the door panel’s mounting groove with a professional cleaner. Inspect the slider for hidden cracks or internal damage—replace the slider if any defects are found. Reinstall the sliders and ensure they fit tightly with the door rail.
-
Semi-Annual Performance Test: Conduct a comprehensive performance test, including wear degree, sliding smoothness, and buffering performance. Use a force gauge to measure the sliding resistance of the landing door (normal value ≤ 15N). For Kone elevators in high-traffic areas (e.g., shopping malls, airports) or harsh environments (high humidity, dust), increase the test frequency and check the landing door rail for deformation that may accelerate slider wear.
-
Annual Professional Overhaul: Arrange a professional inspection with Nanjing Zhuye Elevatorparts’ certified technical team. Replace all sliders that are approaching the wear limit with genuine Kone-compatible models. Inspect the Kone landing door panel and rail for wear or deformation and repair them if necessary. Conduct a full-range calibration of the landing door system to ensure the slider, door panel, and rail operate in sync.
Recommended Replacement Cycle for Kone Elevator Landing Door Slider
As a core guiding and buffering component bearing long-term friction and the weight of the landing door panel, the Kone Elevator Landing Door Slider has a specified service life. Timely replacement is critical to avoiding slider failure, which may lead to landing door jamming, deviation, or failure to open/close in place—affecting passenger access safety and causing elevator downtime.
1. Standard Replacement Cycle
Under normal operating conditions (elevator daily operation time 12–24 hours, daily landing door opening/closing times ≥ 1000, environment temperature -10–60℃, humidity 10%–95%), the recommended replacement cycle for the Kone Elevator Landing Door Slider is 1.5–2 years. This cycle is determined based on Nanjing Zhuye Elevatorparts’ long-term field data, including material wear tests, compatibility performance analysis, and actual operation feedback for Kone elevators.
2. Adjustments for Special Scenarios
-
Harsh Environments: For Kone elevators in high-humidity coastal areas (salt spray corrosion), high-dust construction sites, or elevators with frequent landing door operation (more than 2000 times per day), the replacement cycle should be shortened to1–1.5 years. Harsh conditions accelerate the wear of the engineering plastic material, deformation of the metal insert, and reduce the slider’s guiding performance.
-
Low-Frequency Use Scenarios: For Kone elevators with low usage frequency (e.g., villa elevators, small office buildings with daily operation time < 8 hours) and clean, stable environments, the replacement cycle can be extended to 2–3 years—only if Nanjing Zhuye’s professional inspection confirms that the slider’s wear degree, sliding smoothness, and compatibility are all intact.
3. Immediate Replacement Conditions
Replace the Kone Elevator Landing Door Slider immediately if any of the following issues occur, regardless of service life:
-
The slider is severely worn (wear depth > 1mm) or cracked, leading to uneven contact with the door rail and obvious door deviation.
-
The slider is deformed, and its groove width deviates from the standard by more than 1mm, failing to fit the Kone landing door rail tightly.
-
The engineering plastic material is aging (hardening, brittleness, or peeling), losing buffering performance and causing abnormal noise or jamming during door operation.
-
The embedded metal insert is exposed due to material wear, posing a risk of scratching the door rail or damaging the landing door panel.
In conclusion, the Kone Elevator Landing Door Slider supplied by Nanjing Zhuye Elevatorparts is a high-quality, Kone-compatible component tailored for Kone elevator landing door systems. By following the correct usage methods, maintenance schedules, and replacement cycles, elevator maintenance teams can effectively ensure the stable and safe operation of Kone elevator landing door systems, improve passenger access experience, and minimize failure risks. Choosing Nanjing Zhuye Elevatorparts means you get not only authentic Kone elevator landing door sliders but also professional technical support, including model matching guidance, installation advice, and prompt after-sales service.
