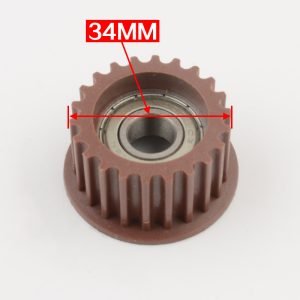

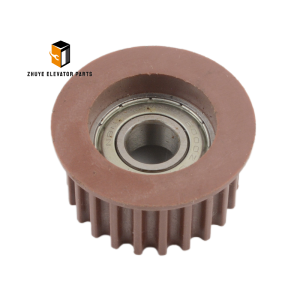

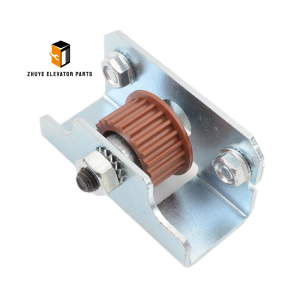

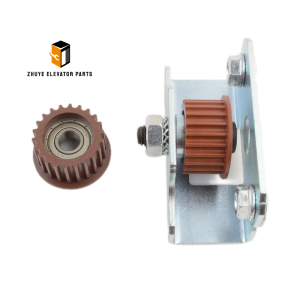

KONE Elevator Door Machine Belt Pulley: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of KONE Elevator Door Machine Belt Pulley

1. Pre-Installation Preparation

2. Installation & Alignment Steps

• Removal of Old Pulley:
  • Access the door operator assembly (located in the elevator cab ceiling or hoistway). Loosen the mounting bolts of the old pulley using a calibrated torque wrench and carefully remove it from the motor shaft or bracket. Detach the door drive belt from the pulley’s grooves—note the belt’s direction and tension to ensure correct reinstallation. Clean the motor shaft, mounting bracket, and surrounding area to remove dust, belt residue, or rust that could interfere with alignment.
• Installation of New Pulley:
  • Slide the new pulley onto the motor shaft (or align with the mounting bracket) and secure it with the provided high-strength bolts or set screws. Torque the fasteners to KONE’s specified range (3–5 Nm for most models) to prevent vibration-induced loosening—over-torquing can damage the pulley or motor shaft. Re-thread the drive belt into the pulley’s grooves, ensuring the belt sits flush (no side contact) and maintains proper tension (KONE recommends a deflection of 5–10mm when pressed firmly).
• Mechanical Alignment:
  • Manually rotate the pulley to confirm smooth, friction-free movement. Check that the pulley is perfectly parallel to the driven pulley (idler pulley) in the door system—misalignment (even 1–2 degrees) can cause uneven belt wear and noisy operation. Adjust the mounting bracket position (if applicable) to achieve alignment, following KONE’s door system alignment guidelines.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Smooth Operation Test: Power on the elevator and test automatic, manual, and emergency door modes—confirm doors open/close without jitter, hesitation, or unusual noise (e.g., squeaking, rattling), consistent with KONE’s performance standards.
    • Belt Tension & Slip Test: Verify the belt does not slip during peak load (e.g., door resistance from wind or minor obstruction) and maintains tension across 50 consecutive cycles.
    • Temperature Check: After 10 minutes of continuous operation, check the pulley bearings for excessive heat (should remain cool to the touch)—overheating indicates misalignment or bearing damage.
  • Document installation details and test results in maintenance records to demonstrate compliance with KONE’s service requirements.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose mounting bolts, belt wear (fraying, cracks, or glazing), or debris in the pulley’s grooves. Remove dust and residue with a soft brush or lint-free cloth—avoid harsh chemicals that can damage the pulley’s grooved surface.
• Monthly Operational Checks: Listen for unusual noises during door operation (e.g., grinding, squealing) that may indicate bearing wear or misalignment. Manually spin the pulley to confirm smooth rotation (no stiffness or play).
• Quarterly Belt & Pulley Inspections: Inspect the drive belt for tension and wear—replace worn belts with genuine KONE parts from Nanjing Zhuye. Check the pulley’s grooved surface for signs of wear (e.g., flattened grooves, cracks) and measure the pulley’s diameter (wear beyond 0.5mm exceeds KONE’s tolerance).
• Semi-Annual Bearing Maintenance: For pulleys with accessible lubrication points, apply KONE-approved lubricant to the bearings to minimize friction—avoid over-lubrication, as excess grease attracts dust and debris.
• Annual Comprehensive Inspection: Remove the pulley to inspect internal bearings for corrosion or wear. Verify alignment with the driven pulley and re-torque mounting bolts—vibration can loosen fasteners over time.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Operational Failures: Doors stick, move unevenly, or fail to open/close fully—indicative of seized bearings, worn grooves, or misalignment that cannot be adjusted.
• Excessive Wear: Grooved surface wear exceeds 0.5mm (measured with a caliper), or the surface develops cracks, flat spots, or permanent deformation—causing belt slippage or motor overload.
• Bearing Issues: Pulley rotates with stiffness, grinding, or excessive play (indicating bearing damage) or becomes hot to the touch after short operation—violating KONE’s safety thresholds.
• Belt Damage: Drive belt frays, tears, or slips frequently—attributed to a damaged pulley groove or misalignment that cannot be resolved.
• Physical Damage: Bent shafts, cracked pulley housing, or irreparable mounting hardware damage—compromising mechanical integrity and safety.

3. Maintenance to Extend Service Life

• Protect from Contamination: Keep the door operator area clean and free from dust, debris, or water—contamination accelerates bearing wear and groove damage. Install dust covers (if not factory-fitted) to shield the pulley from environmental debris.
• Maintain Belt Health: Replace worn or damaged drive belts promptly—damaged belts increase friction and wear on the pulley. Use only genuine KONE belts from Nanjing Zhuye to ensure compatibility and optimal performance.
• Avoid Overloading: Minimize unnecessary door cycles (e.g., disable automatic re-opening during low-traffic periods) to reduce wear on the pulley and bearings, aligning with KONE’s maintenance best practices.
• Use Genuine Parts Only: For replacements, rely exclusively on authentic KONE belt pulleys from Nanjing Zhuye. Counterfeit pulleys may use inferior materials (e.g., low-grade rubber, untested bearings) or incorrect dimensions—compromising performance, safety, and KONE’s warranty coverage.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & KONE Compatibility: All pulleys are manufactured to KONE’s original specifications, ensuring seamless integration with KONE door systems and compliance with global safety/mechanical standards.
• Strict KONE-Specific Quality Assurance: Each unit undergoes rigorous testing—including bearing durability, groove wear resistance, dimensional accuracy, and rotation smoothness—to guarantee reliable operation in critical KONE door systems.
• Expert Technical Support: Nanjing Zhuye’s certified engineers specialize in KONE elevator systems, providing 24/7 assistance for installation alignment, compatibility verification, and troubleshooting (e.g., noisy operation, belt slippage) in KONE elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers mechanical components promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings relying on KONE’s reliability.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant KONE elevator components.
