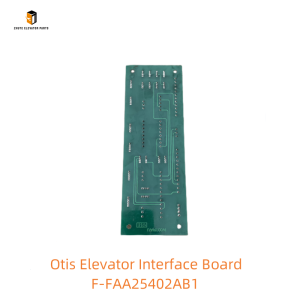

Otis Elevator Interface Board F-FAA25402AB1: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Interface Board F-FAA25402AB1

1. Pre-Installation Preparation

2. Installation & Configuration Steps

• Board Installation:
  • Access the elevator control cabinet and locate the designated slot for the interface board. Disconnect the old board (if replacing) by releasing the locking latches and disconnecting power, signal, and communication cables—label cables to ensure correct reconnection. Clean the mounting slot to remove dust or debris that could interfere with electrical contact.
  • Align the F-FAA25402AB1 with the cabinet’s guide rails and seating pins. Insert the board firmly until it locks into place, ensuring proper contact with the backplane connector. Secure the board with provided screws (torque to 0.5–0.8 Nm) to prevent vibration-induced loosening. Reconnect the cables to the corresponding terminals, matching the labeled connections to avoid signal or power errors.
• Configuration Setup:
  • Power on the control cabinet and confirm the F-FAA25402AB1 initializes correctly (LED status indicator illuminates green, and the communication link light flashes to indicate active data transmission). Access the configuration menu via Otis-approved diagnostic software (by certified technicians):
    • Protocol Configuration: Select and configure the appropriate communication protocols (e.g., CAN bus for main controller, RS485 for sensors) to match the connected subsystems. Ensure baud rates, data bits, and parity settings align with Otis’s system specifications.
    • Subsystem Address Assignment: Assign unique addresses to connected subsystems (e.g., door operator 1, safety interlock module) to enable targeted data transmission and avoid communication conflicts.
    • Data Validation: Run a communication test to verify data exchange between the interface board and all connected subsystems. Confirm sensor readings, status updates, and control commands are transmitted accurately.
• Functional Testing:
  • Conduct comprehensive tests (by certified technicians only):
    • Communication Integrity: Trigger subsystem actions (e.g., open/close doors, activate safety interlocks) and verify the interface board transmits commands correctly and receives status feedback in real time (≤10ms delay).
    • Fault Simulation: Simulate subsystem disconnections or signal interference to confirm the board logs communication errors accurately and activates fail-safe modes (e.g., elevator stop, alarm) as required.
    • BMS Integration Test: If connected to a building management system, verify the interface board transmits elevator status data (operation mode, fault codes, energy consumption) to the BMS and responds to remote commands (e.g., maintenance mode activation).
  • Document test results in maintenance records to demonstrate compliance with safety and communication standards.

3. Routine Usage Maintenance

• Weekly Visual Inspections: Check for loose cables, dust accumulation on the board, or damaged terminal blocks. Remove dust with compressed air—avoid water or cleaning agents that can damage components or corrode connectors.
• Monthly Communication Checks: Use diagnostic software to monitor data transmission rates, error logs, and subsystem connectivity. Address minor issues (e.g., intermittent connections) promptly to prevent major communication failures.
• Quarterly Cable Inspections: Inspect power, signal, and communication cables for fraying, corrosion, or loose connections. Tighten terminals as needed or replace damaged cables with genuine Otis parts from Nanjing Zhuye—poor cable quality is a leading cause of communication errors.
• Semi-Annual Firmware Updates: Update the board’s firmware (as recommended by Otis or Nanjing Zhuye) to enhance communication protocol compatibility, fix software bugs, and improve data transmission stability.
• Annual Backplane & Connector Checks: Inspect the control cabinet’s backplane connector for corrosion, wear, or bent pins—clean or replace the connector if necessary to ensure reliable electrical contact with the interface board.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Communication Failures: Persistent subsystem disconnections, delayed data transmission, or inability to send/receive commands—despite cable checks and configuration resets.
• Error Log Anomalies: Frequent, unresolvable communication error codes (e.g., “Subsystem Timeout,” “Data Corruption”) that appear after firmware updates and troubleshooting.
• Physical Damage: Cracked circuit board, burned components, water intrusion, or irreparable terminal block damage—compromising electrical safety and communication reliability.
• Performance Degradation: Significant increases in data transmission latency (≥50ms), or intermittent system crashes linked to interface board malfunctions.
• Compatibility Issues: Inability to integrate with system upgrades (e.g., new BMS protocols, enhanced safety sensors) due to outdated hardware or firmware.

3. Maintenance to Extend Service Life

• Stabilize Power Supply: Install surge protectors and voltage regulators to shield the board from voltage spikes or sags—common causes of circuit board and capacitor damage.
• Control Environmental Conditions: Maintain the machine room temperature between 10–35°C and humidity between 30–60%. Avoid exposure to dust, water, or extreme temperatures.
• Protect Cables & Connectors: Route communication cables away from high-voltage power lines (minimum distance of 30cm) to avoid electromagnetic interference. Use cable management tools to prevent bending or stretching of cables.
• Use Genuine Parts Only: For repairs or replacements, rely exclusively on authentic Otis components from Nanjing Zhuye. Counterfeit boards lack Otis’s quality control, firmware compatibility, and communication protocol validation—compromising system performance and safety.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compatibility: All F-FAA25402AB1 boards are manufactured to Otis’s original specifications, ensuring seamless integration with Otis elevator systems and compliance with global safety/electronic standards.
• Strict Quality Assurance: Each unit undergoes rigorous testing—including communication protocol validation, data transmission speed, error rate measurement, and thermal resistance—to guarantee reliable performance in critical communication scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation and configuration to troubleshooting board-specific issues (e.g., communication errors, firmware updates) in Otis elevators.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers interface boards promptly worldwide, minimizing elevator downtime during replacement—critical for high-traffic buildings.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality—helping you balance maintenance budgets with the need for durable, compliant elevator components.

Conclusion
