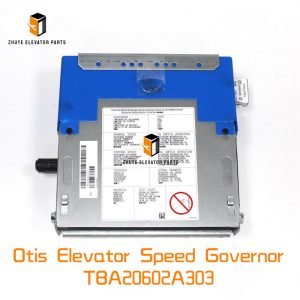

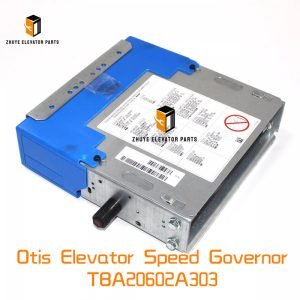

Otis Elevator Speed Governor TBA20602A303: Usage Guide, Replacement Cycle & Trusted Supply from Nanjing Zhuye

Proper Usage Methods of Otis Elevator Speed Governor TBA20602A303

1. Pre-Installation Preparation

2. Installation & Operation Steps

• Mounting the Speed Governor:
  • Locate the designated installation position in the elevator machine room—typically above the hoistway, aligned with the elevator car’s guide rails. Ensure the mounting surface is flat, level, and structurally sound (capable of withstanding 5x the device’s weight during emergency activation).
  • Secure the TBA20602A303 to the mounting bracket using high-strength bolts, torquing them to the manufacturer’s recommended value (8–10 Nm) to prevent vibration-induced loosening. Align the device’s sheave with the governor rope path to ensure smooth rope movement without friction or misalignment.
• Rope Installation & Tensioning:
  • Thread the governor rope (provided with the device) through the speed governor’s sheave, around the tensioning weight (installed in the hoistway pit), and connect it to the elevator car’s safety gear linkage. Ensure the rope is properly lubricated with Otis-approved lubricant to reduce wear on the sheave and rope fibers.
  • Adjust the tensioning weight to maintain the correct rope slack (5–10 mm) as specified in the technical manual. Over-tensioning can cause premature gear wear, while under-tensioning may delay speed detection and activation.
• Functional Testing:
  • Conduct a static test: Manually rotate the speed governor’s sheave to verify smooth operation and confirm the centrifugal clutch engages at the preset overspeed threshold (typically 115% of rated speed). Check that the safety gear linkage activates without binding.
  • Perform a dynamic test (by certified technicians only): Use the elevator’s test mode to simulate an overspeed condition. Ensure the speed governor triggers the safety gear within 0.5 seconds of exceeding the rated speed, and the elevator decelerates to a stop within the maximum allowable g-force (≤1.5g for passenger elevators).
  • Verify the reset function: After testing, manually reset the speed governor and confirm it returns to normal operation. Document all test results in the elevator’s maintenance records to demonstrate compliance with safety regulations.

3. Routine Usage Maintenance

• Conduct monthly visual inspections: Check for rope wear (fraying, strand breakage), lubrication levels, loose bolts, or corrosion on the device’s housing. Replace the governor rope immediately if it shows signs of damage.
• Lubricate the speed governor’s gears, bearings, and sheave quarterly using Otis-approved lubricant to reduce friction and prevent seizing. Avoid over-lubrication, as excess grease can attract dust and debris.
• Test the activation function semi-annually by simulating an overspeed scenario (following strict safety protocols) to confirm responsive operation. Calibrate the speed sensing mechanism if deviations from the rated threshold are detected.
• Clean the device and surrounding area annually to remove dust, debris, and oil buildup—contaminants can interfere with mechanical components and reduce performance.

Recommended Replacement Cycle

1. Standard Replacement Cycle

2. Signs That Require Immediate Replacement

• Failure to trigger the safety gear during overspeed testing, even after adjusting the activation mechanism or replacing the governor rope.
• Excessive rope wear (more than 10% of rope diameter reduction) or frequent rope breakage, indicating structural weakness.
• Physical damage: Cracked housing, bent shafts, seized gears, or corrosion that penetrates the internal components.
• Inability to calibrate the speed sensing mechanism to meet safety standards (e.g., activation threshold exceeds 120% of rated speed).
• Unusual mechanical noises (grinding, squealing) during operation, indicating internal component damage.

3. Maintenance to Extend Service Life

• Keep the machine room at a stable temperature (10–35°C) and low humidity (30–60%) to prevent corrosion and lubricant degradation.
• Apply anti-corrosion coating to the device’s external surfaces annually (if installed in harsh environments with high humidity or chemical exposure).
• Replace the governor rope every 3–5 years, regardless of visible wear, to ensure optimal performance and reduce strain on the speed governor’s sheave.
• Use only genuine replacement parts and lubricants from Nanjing Zhuye—counterfeit products can compromise safety, void certifications, and lead to premature failure.

Why Choose Nanjing Zhuye Elevator Parts?

• Authenticity & Compliance: All TBA20602A303 speed governors are manufactured to Otis’s original specifications, ensuring seamless compatibility with Otis elevator systems and adherence to global safety standards (EN 81, ASME A17.1, ISO 9001).
• Strict Quality Assurance: Each unit undergoes rigorous testing—including speed accuracy calibration, load capacity verification, durability simulations, and corrosion resistance checks—to guarantee reliable performance in critical emergency scenarios.
• Expert Technical Support: Nanjing Zhuye’s certified engineers provide 24/7 assistance, from installation guidance and testing protocols to troubleshooting mechanical/electronic issues, ensuring the device meets safety requirements.
• Global Efficient Delivery: With a robust supply chain and logistics network, Nanjing Zhuye delivers orders promptly worldwide, minimizing downtime during replacement and keeping your elevators compliant.
• Competitive Pricing: By eliminating middlemen, Nanjing Zhuye offers cost-effective solutions without compromising quality, helping you maintain safety standards while controlling maintenance costs.

Conclusion
