Description

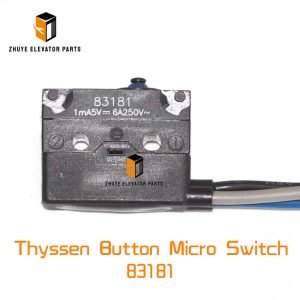

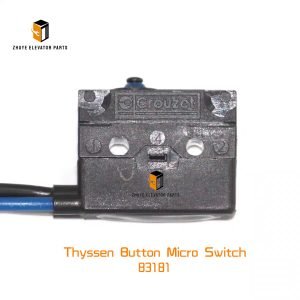

Thyssen Button Micro Switch 83181 Brief Introduction
|
Product Name
|
Thyssen Button Micro Switch |
|
Model
|
83181
83186
|
|
Quality
|
Original.Brand New
|
|
Payment
|
T/T. Paypal. Western Union
|
|
Delivery
|
3-5 Working Days
|
|
Packaging
|
Packed by carton
|
Thyssen Button Micro Switch 83181 – The Click That Starts Every Elevator Ride | Nanjing Zhuye Elevator Parts
Every elevator journey begins with a click. The Thyssen 83181 micro-switch is that click—housed inside COP and LOP buttons, it converts a finger press into a 24 V signal that wakes up the CPU, lights the halo and logs the call. Rated for 3 million operations yet smaller than a thumb, it works silently until black dust or a cracked lever makes the call disappear. Nanjing Zhuye Elevator Parts keeps genuine 83181 switches in original Thyssen packaging, ready for next-day despatch worldwide—helping you restore that first, vital click without costly OEM delays.
Product snapshot
-
Thyssen part number 83181, alternate codes 83181001 / 83181-001
-
Sub-miniature snap-action, 1 pole C (SPDT), gold-plated contacts
-
3 A 250 VAC, 5 A 125 VAC, 0.1 A 24 VDC minimum for PLC gold-plate reliability
-
Operating force 0.6 N, pre-travel 0.3 mm, over-travel 1.2 mm, differential travel 0.1 mm
-
Mechanical life 3 million cycles, electrical life 100 k at 3 A 250 VAC
-
Thermoplastic housing, UL94 V-0, lever length 17 mm, roller Ø 3 mm
-
Termination: QC 6.3 × 0.8 mm, IP40, −40 °C to +85 °C
-
CE, UL, RoHS, REACH and Thyssen QES 2024 approved
Where it works
-
Thyssen COP and LOP push buttons EV-02, EV-03, K200, K200-MO, K200-MRL
-
Door open/close, alarm, stop, floor buttons in public lifts, hospitals, hotels
-
Any 24 V DC control circuit needing low-force, long-life snap-action switching
Installation method – 2-minute finger-swap
-
Place lift on inspection mode; switch OFF COP breaker; lock & tag.
-
Remove button face-plate with plastic pry tool; photograph wire colours.
-
Release QC terminals with flat screwdriver; slide old switch out.
-
Insert new 83181 until lever clicks; reconnect wires (common, NC, NO).
-
Power up; press button; CPU input LED must illuminate and halo light.
-
Repeat 10×; verify no missed clicks; torque face-plate screws 0.8 Nm.
-
Log replacement date and serial number in maintenance book.
Replacement cycle & preventive maintenance
Thyssen guideline TSG-SW-2024 recommends:
-
Functional test every 6 months: measure contact resistance < 50 mΩ.
-
Visual check: replace when lever cracked, roller worn, or gold tarnished.
-
Replace every 1 million cycles or 5 years in high-traffic (> 1 000 starts/day).
-
Immediate replacement if:
– contact resistance > 100 mΩ,
– operating force > 1.2 N,
– housing cracked exposing live parts,
– missed clicks > 1 per 100 operations.
Pro tip: 70 % of premature failures are traced to over-torqued face-plates—cracks allow dust and coffee inside.
Maintenance tips from Nanjing Zhuye Elevation Parts
-
Always use gold-plated contacts for 24 V DC; tin contacts oxidise and cause missed calls.
-
Never apply WD-40; it attracts dust and turns contacts black.
-
Keep a box of 83181 in every service van; at 3 grams it costs less than one callback.
-
After lightning storm, check 24 V ripple < 1 V; high ripple burns gold plating.
-
Order the “Micro-Switch Kit” (switch + lever + QC terminals) from Nanjing Zhuye Elevator Parts to eliminate parts hunting and ensure matched components.
Why buy from Nanjing Zhuye Elevator Parts?
We are a Thyssen-authorised distributor, importing 83181 directly from the German factory, gold-plating every contact and shipping with a 24-month replacement warranty. Stock is stored in humidity-controlled bins to prevent oxidation. Orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at 100 pieces; we can laser-mark your asset number and include a spare lever free of charge.
Conclusion
The 83181 micro-switch is the silent sentinel that starts every Thyssen ride. By installing the genuine unit, testing clicks regularly and replacing it before the lever cracks, you ensure every call is answered, every halo lights, and every passenger smiles. Stock genuine 83181 from Nanjing Zhuye Elevator Parts today—because when the click stops, the ride stops.
