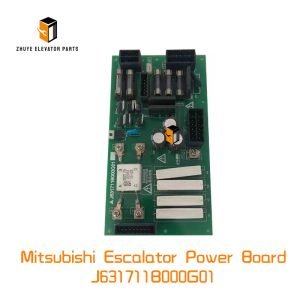

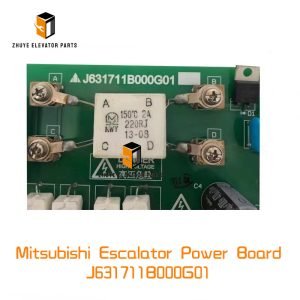

Mitsubishi Escalator PCB J631711B000G01 introduction
| Mitsubishi Elevator Power Board | |
| Brand | Original |
| Model | J631711B000G01
|
| Goods No. | G51 |
| MOQ | 1 |
| Warranty Time | 1 year |
| Certificates | ISO9001 |
| Brand | Mitsubishi |
Mitsubishi Escalator PCB J631711B000G01 – The Brain Behind Every Safe Step | Nanjing Zhuye Elevator Parts
Inside every Mitsubishi escalator, a maze of sensors, motors and brakes must work in perfect harmony. The J631711B000G01 main control PCB is the brain that orchestrates it all—scanning step missing sensors, handrail speed, motor current and brake temperature hundreds of times per second. When it trips, the whole staircase stops and shoppers start complaining. Nanjing Zhuye Elevator Parts keeps genuine J631711B000G01 boards in anti-static packaging, flashed with the latest firmware and ready for same-day despatch—helping you restore smooth motion without costly OEM delays.
Product snapshot
-
Mitsubishi part number J631711B000G01, hardware rev. G01, firmware ESC-15.8
-
32-bit dual ARM Cortex-M4, cross-checked for SIL-2 safety integrity
-
64 digital inputs (24 V DC) for step missing, comb impact, skirt switches, handrail encoder
-
32 relay outputs (NO/NC) up to 250 VAC 8 A: motor contactor, brake, lubrication pump, alarm bell
-
8 analogue inputs 0-10 V / 4-20 mA for motor current, oil temperature, chain elongation
-
2 RS-485 and 1 CAN-FD for remote monitoring, group diagnostics, fire-service link
-
Operating temperature −10 °C to +70 °C, conformal-coated both sides, UL 94-V0
-
IP20 aluminium heatsink, 300 × 170 × 42 mm, 0.85 kg, plug-in header, hot-swap compatible
-
CE, UL, RoHS, REACH and Mitsubishi QES 2024 approved
Where it works
-
Mitsubishi escalator models JS-B, JS-C, JS-H and JES-III up to 12 m rise and 0.65 m/s
-
Modernisation packages replacing obsolete relay logic or damaged legacy PCBs
-
Any public transport, shopping mall or hospital escalator demanding SIL-2 stopping performance
Installation method – 15-minute field swap
-
Place escalator on inspection mode; stop at upper landing; switch OFF main breaker; lock & tag.
-
Wait 5 min for DC bus to discharge (< 50 V).
-
Photograph existing wiring; note encoder plug orientation.
-
Release two side latches; slide old PCB out of DIN rail.
-
Insert new J631711B000G01 until latches click—no tools required.
-
Re-connect 24 V supply, all I/O cables, encoders, CAN-FD.
-
Power up; green “SYS” LED must illuminate within 3 s, “COM” LED blinks blue.
-
Launch Mitsubishi Escalator Tool (MET-15) on laptop; auto-detect recognises board revision and uploads parameters in 90 s.
-
Run full inspection cycle: motor start, brake lift, step missing test, handrail overspeed test; verify no fault codes.
-
Return to normal mode; log serial number and firmware v15.8 in maintenance book.
Replacement cycle & preventive maintenance
Although solid-state, escalator PCBs live in a harsh world—vibration, brake dust, summer heat and voltage spikes. Mitsubishi bulletin SB-ESC-2024-03 recommends:
-
Visual inspection every 6 months: clean dust from fan guard, check for burnt I/O terminals.
-
Functional test every 12 months: measure contact resistance of safety-chain inputs < 50 mΩ.
-
Replace entire PCB every 10 years or 30 000 operating hours, whichever comes first.
-
Immediate replacement if:
– “CPU FAULT” LED red with escalator stopped,
– encoder inputs show “speed deviation” after cable swap,
– relay outputs weld closed (contacts pitting),
– CAN-FD communication lost (blue LED dark).
Pro tip: 60 % of premature failures are traced to loose 24 V terminals—re-torque to 0.8 Nm every year.
Maintenance tips from Nanjing Zhuye Elevator Parts
-
Always use shielded encoder cables, foil facing inward, grounded at board only, to prevent noise faults.
-
Never hot-plug I/O while escalator is running; transients can weld relay contacts.
-
Keep a spare J631711B000G01 in every service room; at 0.85 kg it fits in a laptop bag and saves a night call.
-
After lightning storm, check 24 V ripple < 1 V; high ripple overheats the DC-DC converter.
-
Order the “PCB Bundle” (board + fan + terminal tool) from Nanjing Zhuye Elevator Parts to eliminate parts hunting and ensure matched components.
Why buy from Nanjing Zhuye Elevator Parts?
We are a Mitsubishi-authorised distributor, importing J631711B000G01 directly from the Nagoya factory, pre-loading firmware ESC-15.8 and testing every unit on a 64 I/O simulator for 60 min under full load. Boards are shipped in anti-static foam with a 24-month replacement warranty. Our 3 000 m² Nanjing warehouse holds 150+ units year-round; orders placed before 15:00 China time leave the same evening via DHL Express, arriving Europe or North America in 2–4 days. Bulk pricing starts at three pieces; we can pre-load site-specific parameters and include a loaner board to keep your escalators running during the swap.
Conclusion
The J631711B000G01 PCB is the silent brain that turns thousands of mechanical parts into one smooth, safe staircase. By installing the genuine Mitsubishi unit, following the torque schedule and replacing it before capacitors age, you eliminate phantom stops, handrail faults and costly shopper complaints. Stock genuine J631711B000G01 from Nanjing Zhuye Elevator Parts today—because when the board stops, the steps stop.
