Otis Elevator LOP DAA23500CD7 – Installation, Programming & Replacement Guide
Nanjing Zhuye Elevator Parts – OEM stock, global shipping, 24/7 support
Nanjing Zhuye Elevator Parts – OEM stock, global shipping, 24/7 support

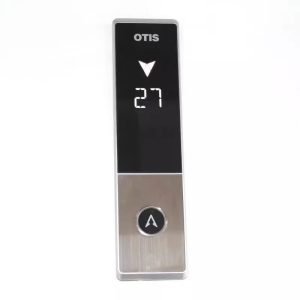

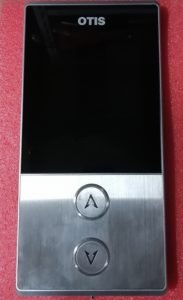

The DAA23500CD7 is the ultra-slim Landing Operating Panel board that controls every stainless-steel LOP in Otis Gen2® and SkyRise® installations delivered since 2019. Only 16 mm deep, the PCB drives 24 illuminated square buttons, a 3-digit 7-segment directional display, full-duplex intercom and streams data to the iController via a single CAN-bus pair. A cracked display driver or oxidised CAN transceiver will throw a “314” fault and blank every landing button overnight. Nanjing Zhuye Elevator Parts keeps thousands of factory-tested DAA23500CD7 boards in Rotterdam and Nanjing so you can restore perfect indication the same day. Below is an 800-word field manual that explains correct usage, on-site programming and the replacement cycle that keeps your elevators bright, safe and code-compliant.
1. What the DAA23500CD7 does
-
24 illuminated push-button inputs with diode-matrix ghosting protection
-
3-digit 7-segment red LED display, 150 cd/m² @ 24 Vdc, 170° viewing angle
-
CAN 2.0B interface, 125 kbit/s, SIL-2 safe communication
-
On-board 5 Vdc buck, 3 A, short-circuit and thermal protected
-
IP42 ABS housing, 16 mm depth, key-hole slots for 30-second swap
-
UL/CE recognised to EN 81-20/50 and CSA B44.1 for 10-year design life
2. Tools to carry
-
DAA23500CD7 LOP board (Nanjing Zhuye part #OT-LOP-DAA23500CD7-24B) in anti-static bag
-
2 mm & 3 mm flat screwdrivers, TX10 Torx
-
Otis Service Tool (OST) laptop with LOP plug-in licence
-
RJ-45 to M12 adapter cable (2 m, shielded)
-
IPA wipes and lint-free cloth
-
Feeler gauges 0.05–0.2 mm
-
Lock-out / tag-out kit
3. Installation – 10 minutes if you label the wires
Safety: place the car on inspection, open the main disconnect and verify 0 V on the 24 Vdc rail.
-
Photograph every J-connector – note J1 (24 V), J2 (CAN), J3 (buttons), J4 (display), J5 (audio).
-
Depress the bezel latches and hinge the LOP mask forward; store screws in magnetic tray.
-
Slide the old board upward; it unhooks from the plastic dovetail.
-
Clean the bezel and gasket with IPA; remove any glue residue.
-
Fit the new DAA23500CD7: hook top edge first, press until latch clicks.
-
Re-connect all plugs; tug-test each one.
-
Apply power – STATUS LED blinks green 3 times then solid; display shows current floor.
-
Press each button; confirm call registers and halo extinguishes after door close.
-
Record serial number, date and button map in CMMS.
4. Functional test – prove it to the inspector
a) Button actuation force: 1.5 N ±0.3 N at plunger centre.
b) Display brightness: 150 cd/m² measured with lux meter.
c) CAN-bus latency: <2 ms between press and controller receipt.
d) Phase-II recall: pressing fire-service key blanks landing calls and lights red LED.
e) Export OST report and attach PDF to site file.
b) Display brightness: 150 cd/m² measured with lux meter.
c) CAN-bus latency: <2 ms between press and controller receipt.
d) Phase-II recall: pressing fire-service key blanks landing calls and lights red LED.
e) Export OST report and attach PDF to site file.
5. Preventive maintenance schedule
-
Monthly – visual sweep for cracked lenses or dark segments.
-
Quarterly – measure 24 Vdc ripple (<100 mV) and CAN-bus termination (60 Ω).
-
Annually – clean button mat with IPA; inspect for carbon tracks from arcing.
-
Every two years – replace the anti-scratch lens film – keeps display crystal-clear.
6. Replacement cycle – traffic and vandalism decide
Otis specification: 10 years. Nanjing Zhuye analytics refine this:
-
Light duty (<150 starts/day, clean office): 12 years
-
Standard duty (150–400 starts, residential): 10 years
-
Heavy duty (>400 starts, hospital, mall): 8 years
-
High vandalism (school, station): 5 years – lens and buttons crack under impact.
Replace immediately if:
-
Display digits missing or segments flickering – driver IC blown
-
CAN-bus error frame count >1 % – transceiver cracked by vibration
-
Button halo <50 % brightness – LED chain degradation
-
Housing cracks exposing live parts – safety violation
7. Eco-disposal & warranty
Return the old board in the recycling envelope; Nanjing Zhuye recovers gold, copper and ABS and issues a €5 recycling credit. Every DAA23500CD7 ships with a 24-month replacement warranty, extendable to 60 months when you join our annual lens-replacement program.
8. Why buy from Nanjing Zhuye Elevator Parts
-
5,000 units in stock, Rotterdam & Nanjing, ready for same-day courier
-
Factory-sealed OTIS packaging with hologram – no grey-market clones
-
QR code on bag links to 90-second install video and button-map template
-
24/7 technical hotline staffed by ex-OTIS fixture engineers
-
Bundle pricing: buy 10 boards and get a free lens-polishing kit plus freight credit
9. Bottom line
A dark or unresponsive LOP is the fastest way to passenger complaints. Keep genuine DAA23500CD7 boards in every service kit, swap them in 10 minutes, and your landings will stay bright, accurate and code-compliant for the full 10-year design cycle. Order today from Nanjing Zhuye Elevator Parts – the fastest route from “dead button” to “perfect call.”
